Used Nanni 5.280HE 62HP Marine Diesel Engine
Description
Used Nanni 5.280HE 62HP Marine Diesel Engine

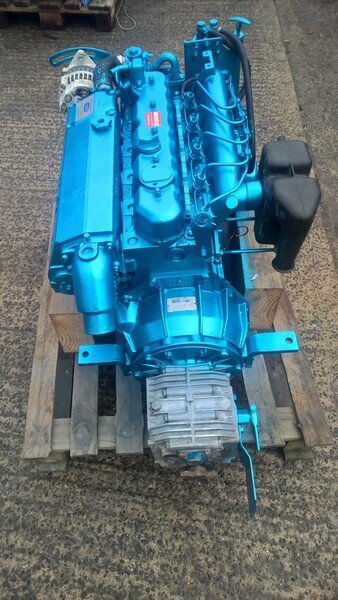

Used Nanni 5.280HE 62hp Five Cylinder Naturally Aspirated Heat Exchanger Cooled Marine Diesel Engine Complete With Flex Mounts, Basic Control Panel & Wiring Loom. Selection of gearbox options available at extra cost including Hurth HBW250, Borg Warner and PRM Delta. Very clean unit and extremely smooth running from the 5 cylinder Kubota base engine. This unit has only ever been used in fresh water and is direct from a commercial client on the Norfolk Broads where it has been very well maintained and replaced as part of their winter rolling replacement program.
Hours are unknown as the original instrumentation has remained with the boat but are estimated to be around 4-5K. Engine is supplied with a basic stop / start panel with warning alarm and lights with a 3M loom. This can be supplied longer on request. Starts instantly and runs very cleanly. Lots of power from a 2.7L base engine and hits max power at only 2800rpm so very good on fuel too.
Manufacturer: Nanni
Year built: 2001
Power: 62
Motor: 46
Fuel: Diesel
Used Nanni 5.280HE 62HP Marine Diesel Engine Specs
| Brand | Nanni Diesel |
| Full Model Code | 5.280HE (Kubota F2803 Base Platform) |
| Country of Origin | France |
| Engine Family/Series | Nanni High-Comfort Multi-Cylinder Series |
| Engine Type & Configuration | Inline 5-Cylinder, 4-Stroke, Smooth-Running Vertical Diesel |
| Aspiration & Induction System | Naturally Aspirated, Multi-Vortex Combustion System |
| Displacement | 2.746 Liters / 2746 cc |
| Bore x Stroke | 87.0 mm x 92.4 mm |
| Cylinder Count & Valves per Cylinder | 5-Cylinder, 2-Valves per Cylinder (10 Valves Total) |
| Compression Ratio | 23.0:1 |
| Rated Power / Horsepower | 62 HP (45.6 kW) @ 2800 RPM |
| Maximum Engine Speed / Rated RPM | 2800 RPM |
| Maximum Torque | 182 Nm @ 1800 RPM |
| Fuel System & Injection Type] | Mechanical Bosch Governor-Integrated Multi-Plunger Injection Pump |
| Governor Type | Mechanical Governor Set for Low-Vibration Idle Adjustment |
| Electrical System Voltage & Alternator Output | 12V System, 90 Amp Alternator with Internal Regulation |
| Starting System | 12V Electric Starter Motor with Super-Glow Preheating Circuit |
| Cooling System Type | Thermostatic Closed Freshwater Loop with Combined Exhaust Manifold Heat Exchanger Unit |
| Lubricating Oil Capacity / Oil Pan Capacity | 9.2 Liters |
| Exhaust Diameter / Exhaust System Type | 60 mm / Water-Mixing Cast Wet Exhaust Pipeline |
| Flywheel & Flywheel Housing Size | SAE 4 Flywheel Housing Architecture |
| Dry Weight without Marine Gear | 278 kg (612 lbs) |
| Dimensions L x W x H | 912 mm x 515 mm x 635 mm |
| Emission Certifications & Duty Rating | EU RCD 1 / Heavy Pleasure & Continuous Inland Waterways Rating |
| Application | Steel-hulled canal barges, heavy displacement inland narrowboats, blue-water monohull sailboats, and classic timber yachts requiring low-vibration 5-cylinder performance (Typical hull lengths 38-52 feet, standard shaft propulsion). |
