Used Ford Mermaid Mistral 175HP Marine Diesel Engine
Description
Used Ford Mermaid Mistral 175HP Marine Diesel Engine

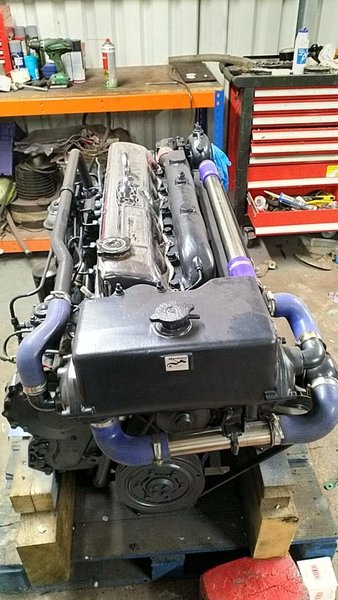

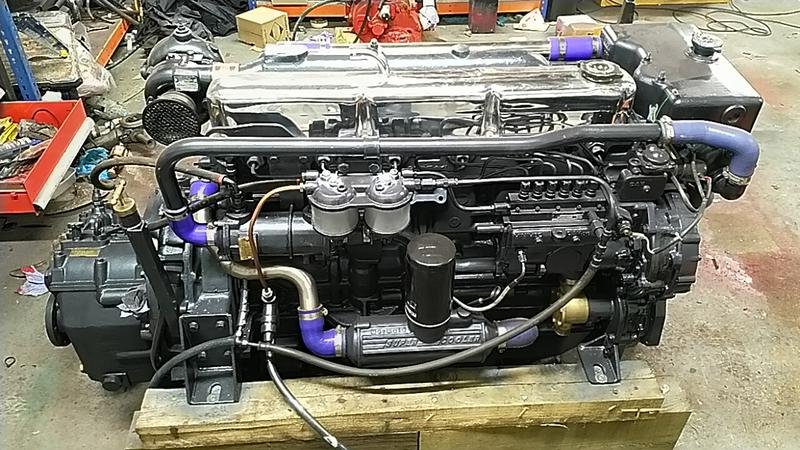

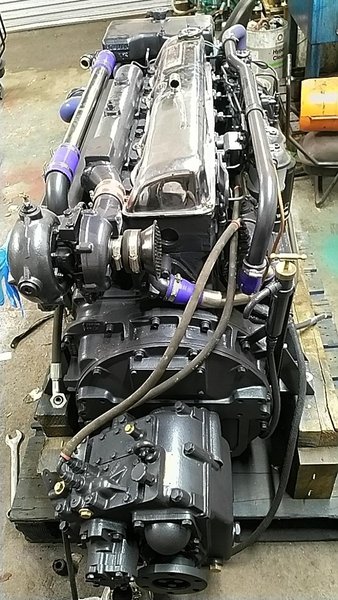

USED Ford Mermaid Mistral (2726T) 175hp Six Cylinder Heat Exchanger Cooled Turbocharged Marine Diesel Engine Fitted With PRM 1000D3 Hydraulic Gearbox. Based on the very last of the Ford Dover engines. This one being a 2726T Otosan unit. This engine was in storage as a spare engine for one of our commercial clients and was reportedly used for around 7 years in a commercial vessel before they obtained and stored it.
It has been test run at our workshops for 2 hours where started and ran well from cold. No discernible crank case pressure. All fluids clean and in the proper places. Small amount of exhaust smoke at max power as with all Ford Mermaids but otherwise in good order. Our workshops have also fitted a PRM 1000D3 3:1 reduction hydraulic gearbox making this a very attractive package for heavy duty use.
Manufacturer: Ford
Model: Ford Mermaid Mistral 175hp Marine Diesel Engine Package
Year built: 1995
Power: 175
Motor: 130
Fuel: Diesel
Used Ford Mermaid Mistral 175HP Marine Diesel Engine Specs
| Brand | Ford Mermaid |
| Full Model Code | Mistral (Ford 2726TM Base) |
| Country of Origin | United Kingdom |
| Engine Family/Series | Ford Dover Heavy Turbo Marine Line |
| Engine Type & Configuration | Inline 6-Cylinder, 4-Stroke, Heavy Duty Marine Diesel |
| Aspiration & Induction System | Turbocharged, Sea-Water Managed Charge Air Intercooled |
| Displacement | 5.950 Liters / 5950 cc |
| Bore x Stroke | 107.0 mm x 115.0 mm |
| Cylinder Count & Valves per Cylinder | 6-Cylinder, 2-Valves per Cylinder (12 Valves Total) |
| Compression Ratio | 15.5:1 |
| Rated Power / Horsepower | 175 HP (130.5 kW) @ 2500 RPM |
| Maximum Engine Speed / Rated RPM | 2500 RPM |
| Maximum Torque | 540 Nm @ 1700 RPM |
| Fuel System & Injection Type] | Mechanical Bosch/Minimec High-Output In-line Injection Pump |
| Governor Type | Mechanical All-Speed Centrifugal Governor |
| Electrical System Voltage & Alternator Output | 12V System (Optional 24V), 70 Amp Marine Alternator |
| Starting System | 12V/24V Electric Starter Motor |
| Cooling System Type | Freshwater Circuit via High-Capacity Combined Heat Exchanger and Exhaust Manifold |
| Lubricating Oil Capacity / Oil Pan Capacity | 14.8 Liters |
| Exhaust Diameter / Exhaust System Type | 90 mm / Water-Injected Wet Exhaust Turbo Elbow |
| Flywheel & Flywheel Housing Size | SAE 3 Flywheel Housing Alignment |
| Dry Weight without Marine Gear | 585 kg (1290 lbs) |
| Dimensions L x W x H | 1240 mm x 670 mm x 840 mm |
| Emission Certifications & Duty Rating | Pre-Emission Controls / Intermittent Light Commercial and Medium Duty Pleasure Rating |
| Application | Semi-displacement motor cruisers, fast charter angling boats, twin-engine passenger vessels, and workboats (Typical hull lengths 38-50 feet, shaft drive or heavy duty V-drive configurations). |
