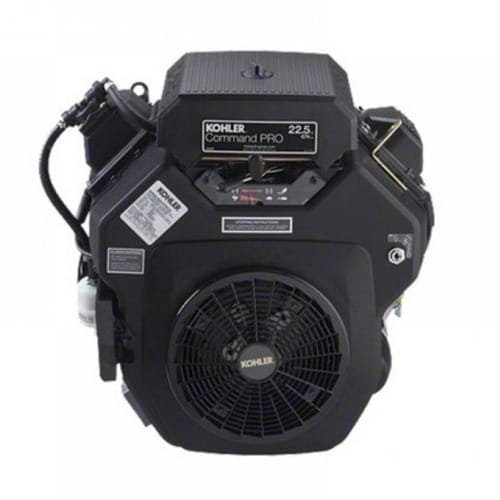

Kohler CH680-3003 22.5HP 674cc V-Twin Engine – 1-1/8in Shaft, Electric Start

Description

Driving heavy industrial hydraulic power packs, the Kohler CH680-3003 horizontal engine delivers continuous 22.5 horsepower across punishing contractor shifts. High-volume hydraulic systems and mobile rescue tools place intense continuous load resistance on engine drive shafts, which causes overheating and thrown connecting rods on consumer powerheads. This 674cc commercial V-twin engine features high-capacity cooling fins, an oversized 1-1/8-inch output shaft, and an electric starter engineered to mobilize hydraulic equipment without delay.

Dual cylinder cast-iron sleeves protect internal tolerances against bore wear, keeping oil consumption low across hundreds of operating hours. The 1-1/8-inch horizontal shaft handles direct hydraulic pump couplings without crankshaft deflection. Full-pressure lubrication circulates filtered motor oil directly to high-load rod bearings, ensuring uninterrupted fluid barrier protection during continuous full-throttle operation across demanding construction jobs.

Key Engineering Features of Kohler CH680-3003

• 674cc 22.5HP Commercial V-Twin: Delivers 22.5 rated horsepower to drive commercial hydraulic power packs and rescue tools.
• 1-1/8-Inch Keyed Horizontal PTO Shaft: Oversized commercial diameter matches heavy hydraulic pump jaw couplings and drive pulleys.
• 12V Electric Key Starting Motor: Spins the flywheel ring gear with key activation to eliminate manual starting effort.
• Full-Pressure Oil Lube with Spin-On Filter: Pumps filtered oil continuously to crankshaft journal inserts and rod bearings.
• Durable Cast-Iron Cylinder Sleeves: Resists bore wear from abrasive dirt, extending engine life in severe commercial service.
• Dual-Stage Commercial Canister Air Cleaner: Traps fine dust particles across two media layers to preserve cylinder wall compression.
• Heavy-Duty Oil Cooler Assembly: Lowers operating oil temperatures to extend bearing life during hot summer operations.

Engineering Integrity & Operational Economy

Engineered for continuous commercial operation where equipment failure halts company revenue, this platform sets the standard for repower efficiency.

• Heavy cast iron cylinder lining and thick crankcase casting prevent thermal distortion during midsummer heat waves.
• Low oil consumption rates and 100-hour oil service intervals keep machines working in the field rather than sitting on shop lift racks.
• Hydraulic equipment operators and utility contractors gain dependable power for high-hour machinery.

Target Machinery & Drop-In Fitment

Weighing 90 pounds dry with an industry-standard horizontal mounting base and 1-1/8-inch shaft, this motor powers hydraulic power units, commercial log splitters, large brush chippers, and high-GPM trash pumps without frame drilling.

Factory Warranty Terms & Routine Upkeep

• Commercial turf and industrial operators receive 3-Year limited factory warranty backing.
• Consumer operations receive 3-Year standard manufacturer warranty coverage.

Execute oil and filter changes every 100 operating hours using 10W-30 motor oil. Inspect the dual-element air cleaner weekly on dusty jobsites, and check the spark plug electrode gap at 0.030 inches. Order the Kohler CH680-3003 horizontal shaft engine from Mulmotor.com for guaranteed factory-fresh units, complete manufacturer warranty coverage, and dedicated commercial equipment support.
