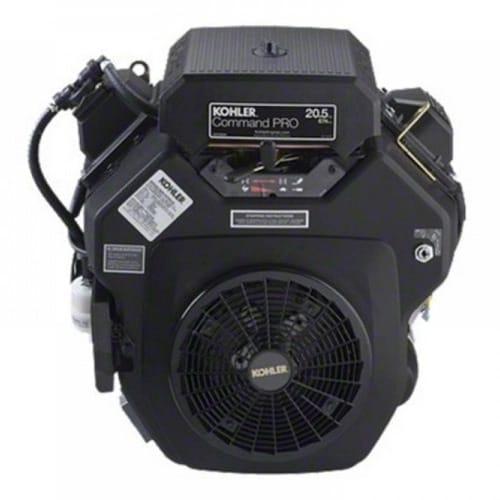

Kohler CH640-3206 20.5HP 674cc V-Twin Engine – 1-1/8in Shaft, Electric Start

Description

During continuous 8-hour highway sawing shifts, the Kohler CH640-3206 horizontal shaft engine delivers continuous 20.5 horsepower across punishing pavement cutting contracts. Sawing through cured asphalt and steel-reinforced green slab places intense continuous load resistance on engine drive shafts, which causes overheating and thrown connecting rods on consumer powerheads. This 674cc commercial V-twin engine features high-capacity cooling fins, an oversized 1-1/8-inch output shaft, and an electric starter engineered to mobilize road sawing crews without delay.

Dual cylinder cast-iron sleeves protect internal tolerances against bore wear, keeping oil consumption low across hundreds of cutting hours. The 1-1/8-inch horizontal shaft handles large diameter diamond saw blade belts without crankshaft deflection. Full-pressure lubrication circulates filtered motor oil directly to high-load rod bearings, ensuring uninterrupted fluid barrier protection during continuous full-throttle cutting passes across highway expansion joints.

Technical Features of Kohler CH640-3206

• 674cc 20.5HP Commercial V-Twin: Delivers 20.5 rated horsepower to drive self-propelled concrete flat saws and planers.
• 1-1/8-Inch Keyed Horizontal PTO Shaft: Oversized commercial diameter matches heavy diamond saw blade pulleys and drive belts.
• 12V Electric Key Starting Motor: Spins the flywheel ring gear with key activation to eliminate manual starting effort.
• Full-Pressure Oil Lube with Spin-On Filter: Pumps filtered oil continuously to crankshaft journal inserts and rod bearings.
• Durable Cast-Iron Cylinder Sleeves: Resists bore wear from abrasive dirt, extending engine life in severe commercial service.
• Dual-Stage Commercial Canister Air Cleaner: Traps fine dust particles across two media layers to preserve cylinder wall compression.

Heavy-Duty Architecture & Low Maintenance

Designed for demanding commercial service, this 1-1/8-inch shaft horizontal engine provides steady power output with minimal field maintenance requirements.

• A rigid aluminum crankcase casting and precision-machined 1-1/8-inch shaft journal resist side-load belt stress under high tension.
• Overhead valve efficiency delivers clean fuel combustion to reduce carbon accumulation on valve faces.
• Concrete cutting contractors and highway maintenance crews gain dependable power for high-hour machinery.

Equipment Integration & Fitment Specs

Weighing 90 pounds dry with an industry-standard 4-bolt horizontal base pattern and 1-1/8-inch shaft, this motor repowers self-propelled concrete flat saws, pavement planers, large commercial chippers, and hydraulic power packs without frame alterations.

Commercial Coverage & Maintenance Upkeep

• Factory warranty terms provide 3-Year commercial and consumer coverage on all core mechanical assemblies.

Service this engine with fresh 10W-30 motor oil and a new filter every 100 operating hours. Tap clean the air filter element weekly on dusty sawing sites, and maintain the spark plug electrode gap at 0.030 inches. Order the Kohler CH640-3206 horizontal shaft engine from Mulmotor.com for guaranteed factory-fresh units, complete manufacturer warranty coverage, and dedicated commercial equipment support.
