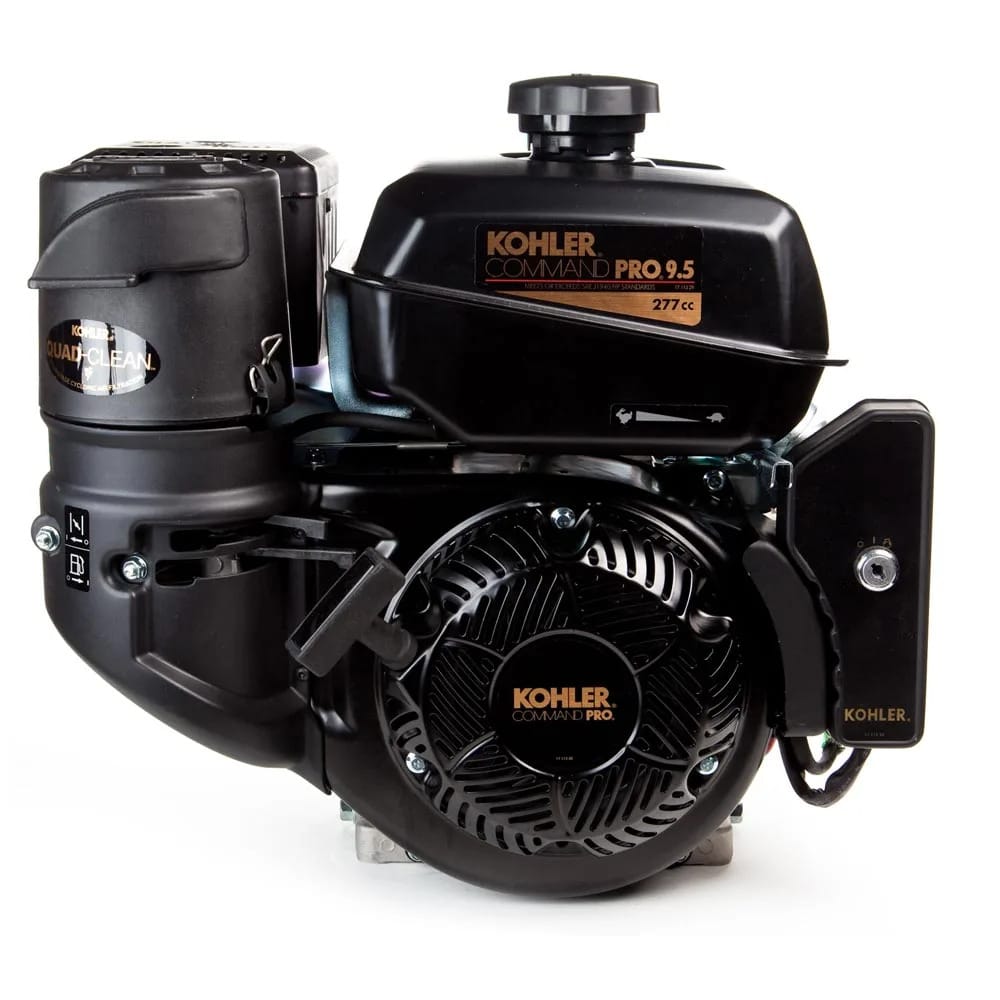

Kohler CH395-3041 9.5HP 277cc Engine – 1in Shaft

Description

Prevent sudden drive stalls using the Kohler CH395-3041 horizontal engine with 1in shaft on commercial compaction and pavement machinery. Heavy equipment loads like reversible plate compactors and concrete flat saws create severe continuous resistance that overheats standard utility motors. This 277cc 9.5HP engine features an oversized 1-inch output shaft, dual ball bearings, and a forged steel crankshaft that withstand high radial belt loads and sudden torque spikes.

An oversized cast-iron cylinder sleeve protects bore roundness against abrasive construction dust, keeping ring tension tight over hundreds of run hours. Dual ball bearings support the 1-inch output shaft, reducing side-load wear on crankcase oil seals. Splash lubrication spreads oil across internal moving parts, while the Quad-Clean cyclonic air cleaner keeps concrete dust and grading grit out of the intake tract.

Key Engineering Features of Kohler CH395-3041

• 277cc 9.5HP Commercial OHV Engine: Delivers 13.2 gross torque ft-lbs to power heavy vibratory plates and floor planers.
• 1-Inch Straight Keyed Shaft: Standard commercial diameter matches heavy centrifugal clutches, gearboxes, and pulleys.
• Dual Ball Bearing Crankshaft Support: Absorbs high radial belt tension to prevent crankshaft seal leaks and shaft deflection.
• Durable Cast-Iron Cylinder Sleeve: Resists bore wear from abrasive grit to extend engine life in harsh working conditions.
• Quad-Clean Cyclonic Air Cleaner: Traps fine dust particles across four filtration stages to preserve cylinder wall compression.
• Mechanical Automatic Decompression: Reduces pull-cord resistance so operators start equipment quickly in cold weather.
• Oil Sentry Low-Oil Shutdown: Breaks ignition ground circuit automatically when crankcase oil falls below safe operating levels.
• 7.4-Quart Steel Fuel Tank: Extends continuous run duration between refueling breaks on busy jobsites.

Fleet Productivity & Cost of Ownership

Engineered for high-torque construction equipment, this 277cc engine combines heavy cast metallurgy with maintenance-reducing features.

• Cast-iron cylinder lining and thick crankcase casting prevent thermal distortion during continuous equipment operation.
• Quad-Clean cyclonic filtration extends filter replacement schedules, lowering replacement parts spend over multiple seasons.
• Rental equipment operators and general contractors gain dependable power for plate compactors and concrete equipment.

Chassis Compatibility & Repower Mounting

Weighing 61.5 pounds dry with an industry-standard 4-bolt horizontal mounting pattern and 1-inch shaft, this unit drops directly onto forward and reversible plate compactors, masonry saws, and commercial trash pumps.

Factory Warranty & Maintenance Guidelines

• Commercial fleet operators receive 3-Year limited factory warranty coverage against component defects.
• Residential and estate owners receive 3-Year complete consumer warranty protection.

Drain engine oil after the initial 20 operating hours, then service every 100 hours with SAE 30 or 10W-30 oil. Inspect the air filter weekly on dry grading sites, and maintain spark plug gaps at 0.030 inches. Order the Kohler CH395-3041 horizontal shaft engine from Mulmotor.com for guaranteed factory-fresh units, complete manufacturer warranty coverage, and dedicated commercial equipment support.
