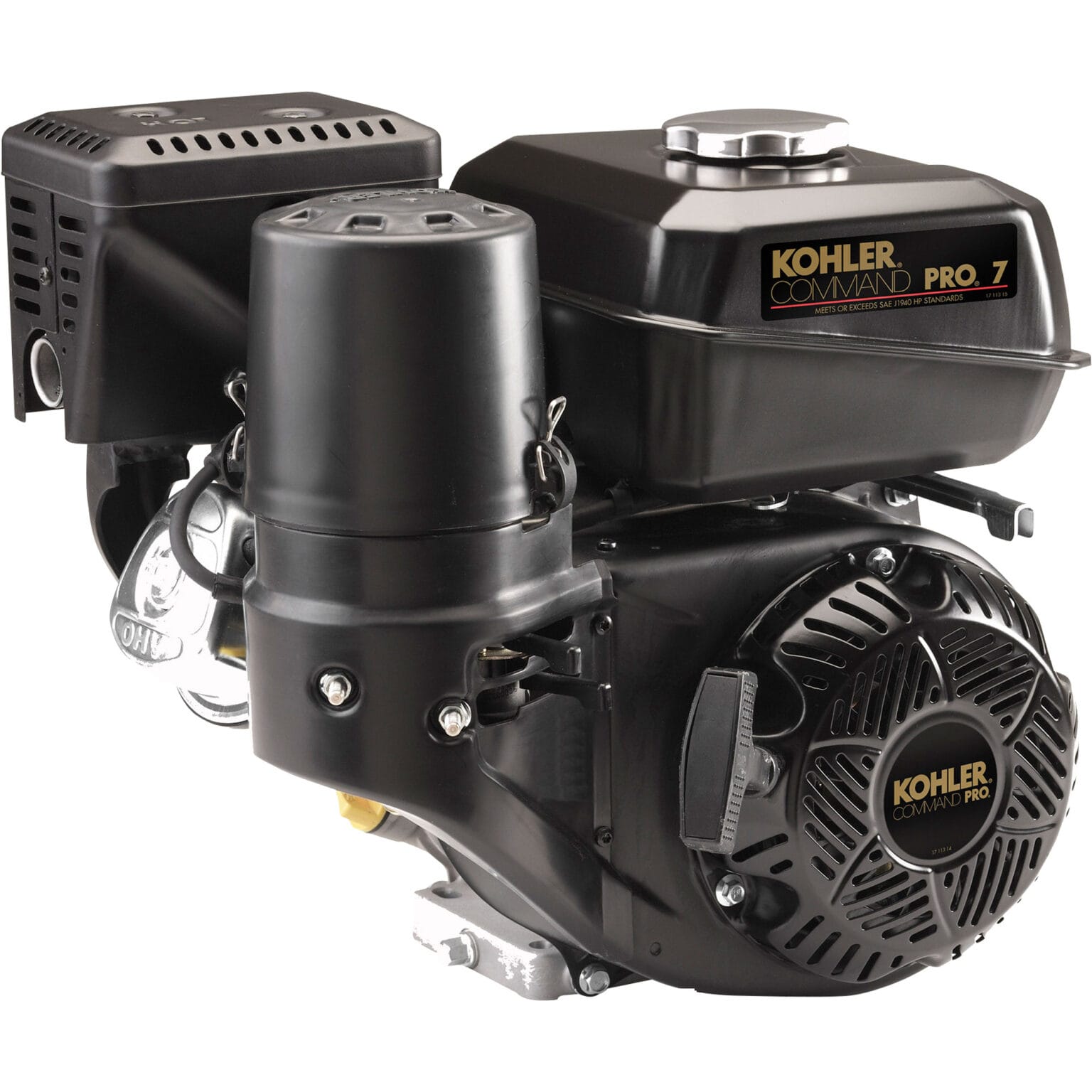

Kohler CH270-3152 7HP 208cc Engine – 3/4in Shaft (ID 18498)

Description

Delivering 7 gross horsepower, the Kohler CH270-3152 horizontal engine (ID 18498) drives commercial pressure washers through demanding wash jobs without thermal drop-off. Industrial cleaning contractors face costly pump damage when replacement engines suffer crankpin galling or drop shaft speed under high-pressure bypass conditions. This 208cc Command PRO engine features an overhead valve design, cast-iron cylinder sleeve, and an integrated Oil Sentry sensor that shields internal journals against low lubrication levels.

A precision 3/4-inch output shaft couples straight to commercial direct-drive pumps without custom shims or adapter bushings. The Quad-Clean four-stage cyclonic air cleaner spins coarse road grit away before air reaches the filter element, keeping intake passages clear on dusty job sites. Splash lubrication bathes internal moving parts in clean motor oil, while the dual ball-bearing crankshaft supports heavy belt side-loads during continuous operation.

Key Engineering Features of Kohler CH270-3152 (ID 18498)

• 208cc 7HP Command PRO OHV Engine: Produces 7.0 gross horsepower to sustain high pump head pressure without thermal drop-off.
• 3/4-Inch Straight Keyed Shaft: Standard commercial diameter matches direct-drive triplex water pumps and industrial drive pulleys.
• Quad-Clean Cyclonic Air Cleaner: Traps fine dust particles across four filtration stages to preserve cylinder wall compression.
• Integrated Oil Sentry Protection: Prevents engine lockup by cutting ignition spark if oil levels dip below operational limits.
• Cast-Iron Cylinder Bore Liner: Maintains cylinder roundness and ring seal when operating in abrasive jobsite environments.
• Heavy-Duty Manual Recoil Starter: Features high-strength cord and steel ratchet pawls for dependable hand starting.

Field Durability & Operational Economy

Built for commercial cleaning outfits, this single-cylinder engine delivers reliable shaft power with low fuel consumption.

• A precision-machined aluminum crankcase casting and dual ball bearings maintain shaft alignment under severe belt drive tension.
• High combustion efficiency lowers fuel burn per jobsite shift, cutting daily operating expenses across commercial fleets.
• Mobile pressure washing businesses gain dependable equipment uptime across peak washing seasons.

Equipment Fitment & Repower Applications

Weighing 38.7 pounds dry with an industry-standard 4-bolt horizontal mounting base and 3/4-inch shaft, this motor powers direct-drive pressure washers, chemical transfer skids, and agricultural sprayers without frame modifications.

Warranty Coverage & Field Maintenance

• Commercial fleet operators receive 3-Year limited factory warranty coverage against component defects.
• Residential and estate owners receive 3-Year complete consumer warranty protection.

Change engine oil after the initial 20 operating hours, then service every 100 hours with SAE 30 or 10W-30 motor oil. Inspect the air filter weekly on dry grading sites, and maintain spark plug gaps at 0.030 inches. Order the Kohler CH270-3152 horizontal shaft engine (ID 18498) from Mulmotor.com for guaranteed factory-fresh units, complete manufacturer warranty coverage, and dedicated commercial equipment support.
