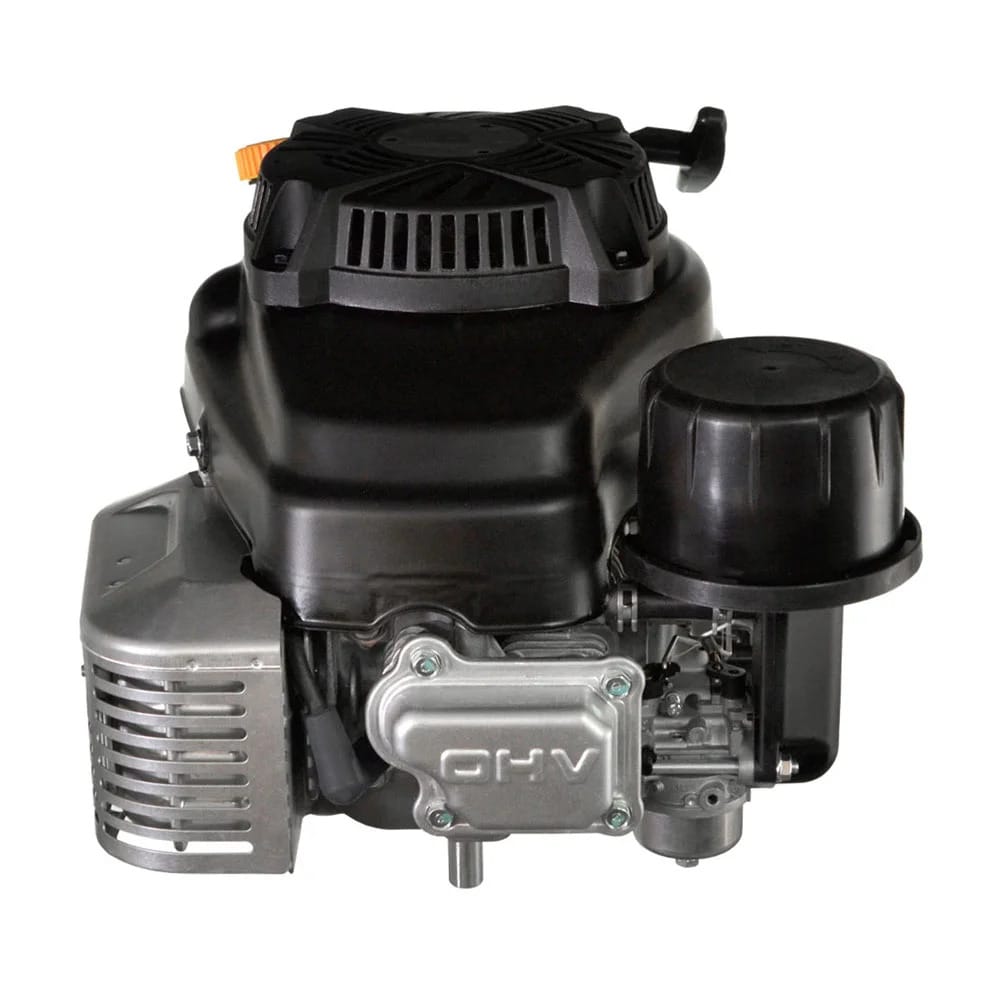

Kawasaki FJ180V-M07-S 4.5HP 179cc Engine – 7/8in Shaft

Description

Debris clearing contractors relying on the Kawasaki FJ180V-M07-S vertical engine eliminate unexpected power loss and premature crankshaft bearing failure on commercial lawn vacuums. Heavy leaf vacuums and wheeled turf blowers subject engine drive shafts to brutal continuous impeller drag that overheats consumer-grade motors. Kawasaki equips this 179cc 4.5HP engine with an internally reinforced 7/8-inch vertical shaft, pressurized oil delivery, and overhead valve cylinder heads engineered to run cool.

An internal oil pump circulates pressurized motor oil to critical crankshaft journal inserts, while an auxiliary splash system bathes the cylinder wall to stop friction wear during long cleanups. The 7/8-inch vertical shaft handles heavy steel vacuum impellers and drive pulleys without lateral deflection. The heavy-duty canister air cleaner prevents fine grass chaff and pulverized leaves from eroding the intake valve seat, preserving engine compression year after year.

Core Mechanical Specifications of Kawasaki FJ180V-M07-S

• 179cc 4.5HP Commercial OHV Engine: Delivers robust rotational torque to drive high-suction lawn vacuums and wheeled leaf blowers.
• 7/8-Inch Precision Vertical Shaft: Seats straight into commercial vacuum impeller hubs and transmission drive pulleys.
• Full-Pressure Oil Delivery: Keeps internal rod journals and main bearings coated in pressurized motor oil.
• Durable Cast-Iron Cylinder Sleeve: Resists bore wear from abrasive dirt, extending engine life in severe commercial service.
• Dual-Stage Commercial Air Cleaner: Traps fine dust particles across two media layers to preserve cylinder wall compression.
• Mechanical Flywheel Brake System: Stops blade and impeller rotation within 3 seconds of safety bail release.
• Aluminized Low-Noise Muffler: Softens exhaust pulses to maintain compliance with municipal sound restrictions.

Contractor Benefits & Long-Term Reliability

This vertical engine combines high torque displacement with rugged mechanical internals to keep commercial cleanup crews productive.

• A reinforced crankcase base casting absorbs vibrational harmonics from high-speed steel vacuum impellers.
• Clean fuel combustion keeps carbon out of piston ring grooves, preserving compression and reducing oil consumption.

Machinery Compatibility & Chassis Mounting

Weighing 37 pounds dry with an industry-standard 3-bolt vertical mounting pattern, this 7/8-inch shaft engine bolts onto commercial leaf vacuums, lawn sweepers, and walk-behind mowers without frame alterations.

Factory Warranty Terms & Service Guidelines

• Kawasaki backs this engine with 3-Year limited warranty coverage for commercial and consumer service.

Field maintenance includes checking oil levels before each morning shift, changing oil every 50 hours with 10W-30 oil, inspecting the paper air filter cartridge, and setting spark plug electrode gap to 0.028 to 0.031 inches. Order the Kawasaki FJ180V-M07-S vertical shaft engine from Mulmotor.com for guaranteed factory-fresh units, complete manufacturer warranty coverage, and dedicated commercial equipment support.
