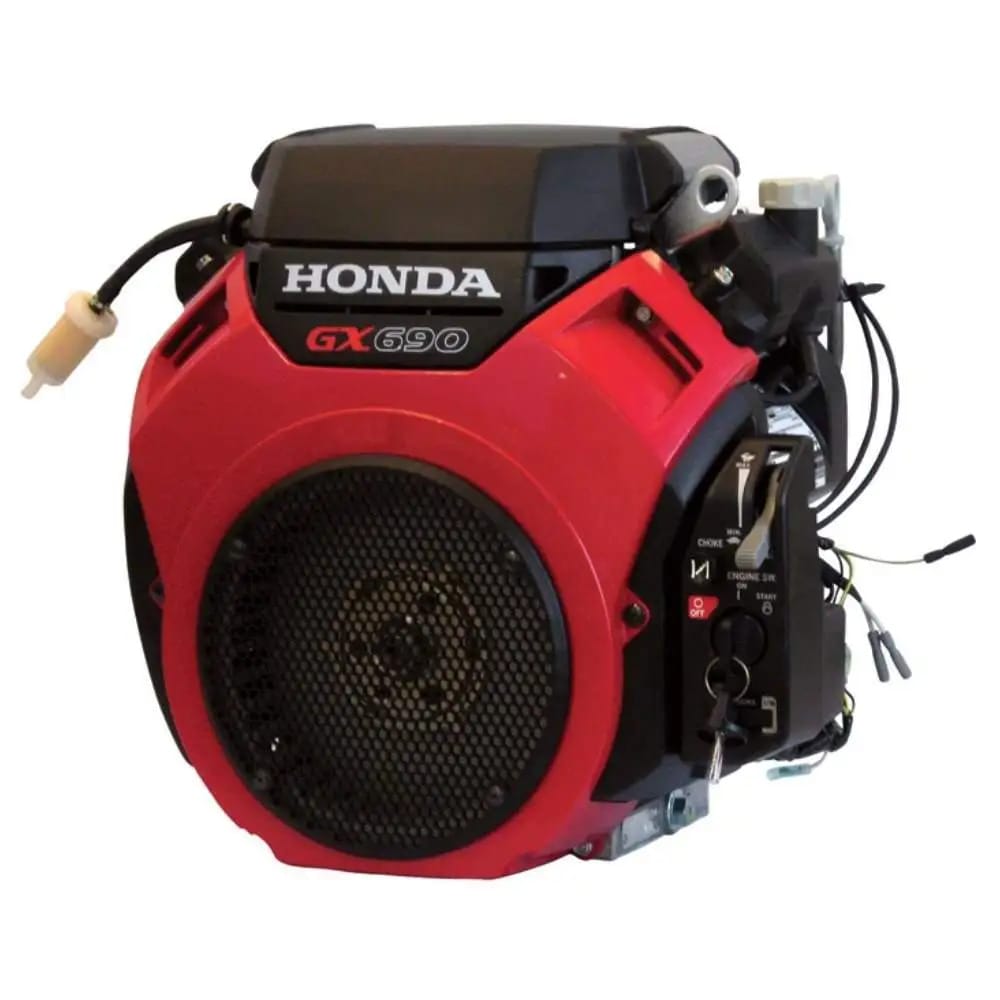

Honda GX690 22.1HP 688cc V-Twin Engine – Electric Start (ID 18265)

Description

Spinning heavy commercial generators and industrial plant machinery, the Honda GX690 electric start engine (ID 18265) supplies continuous 22.1 horsepower across punishing backup power shifts. Mobile generator skids and jobsite power plants place intense continuous electrical load resistance on small engines, which causes overheating and thrown connecting rods on consumer powerheads. This 688cc commercial engine features high-capacity cooling fins, a forged steel crankshaft, and an overhead valve cylinder head engineered to absorb severe mechanical resistance.

An oversized cast-iron cylinder sleeve protects internal tolerances against bore wear, keeping oil consumption low across hundreds of operating hours. Full-pressure lubrication circulates filtered motor oil directly to high-load rod bearings, ensuring uninterrupted fluid barrier protection during continuous full-throttle operation. The commercial-grade carburetor meters fuel with precision across varying load demands, preventing engine hesitation when generator electrical loads surge.

Key Engineering Features of Honda GX690 (ID 18265)

• 688cc 22.1HP Commercial OHV Powerplant: Delivers 22.1 net horsepower to drive industrial generators and emergency power plants.
• Standard Keyed Horizontal PTO Shaft: Matches industrial generator rotor hubs, flexible couplings, and heavy drive pulleys.
• 12V Electric Starter Motor: Spins the flywheel ring gear with key activation to eliminate manual starting effort.
• Full-Pressure Oil Lube with Spin-On Filter: Pumps filtered oil continuously to crankshaft journal inserts and rod bearings.
• Durable Cast-Iron Cylinder Sleeves: Resists bore wear from abrasive dirt, extending engine life in severe commercial service.
• Dual-Stage Commercial Canister Air Cleaner: Traps fine dust particles across two media layers to preserve cylinder wall compression.
• Integrated Honda Oil Alert System: Shuts down the ignition automatically if crankcase oil falls below safe operating levels.

Engineering Integrity & Operational Economy

Engineered for continuous commercial operation where equipment failure halts company revenue, this platform sets the standard for repower efficiency.

• Heavy cast iron cylinder lining and thick crankcase casting prevent thermal distortion during midsummer heat waves.
• Low oil consumption rates and 100-hour oil service intervals keep machines working in the field rather than sitting on shop lift racks.
• Jobsite electrical contractors and emergency plant operators gain dependable power for high-hour machinery.

Target Machinery & Drop-In Fitment

Weighing 97.9 pounds dry with an industry-standard 4-bolt horizontal mounting base, this motor powers commercial standby generators, mobile welding rigs, hydraulic power packs, and high-output trash pumps without frame drilling.

Factory Warranty Terms & Routine Upkeep

• Commercial turf and industrial operators receive 3-Year limited factory warranty backing.
• Consumer operations receive 3-Year standard manufacturer warranty coverage.

Execute oil changes every 100 operating hours using 10W-30 motor oil. Inspect the dual-element air cleaner weekly on dusty jobsites, and check the spark plug electrode gap at 0.028 to 0.031 inches. Order the Honda GX690 horizontal shaft engine (ID 18265) from Mulmotor.com for guaranteed factory-fresh units, complete manufacturer warranty coverage, and dedicated commercial equipment support.
