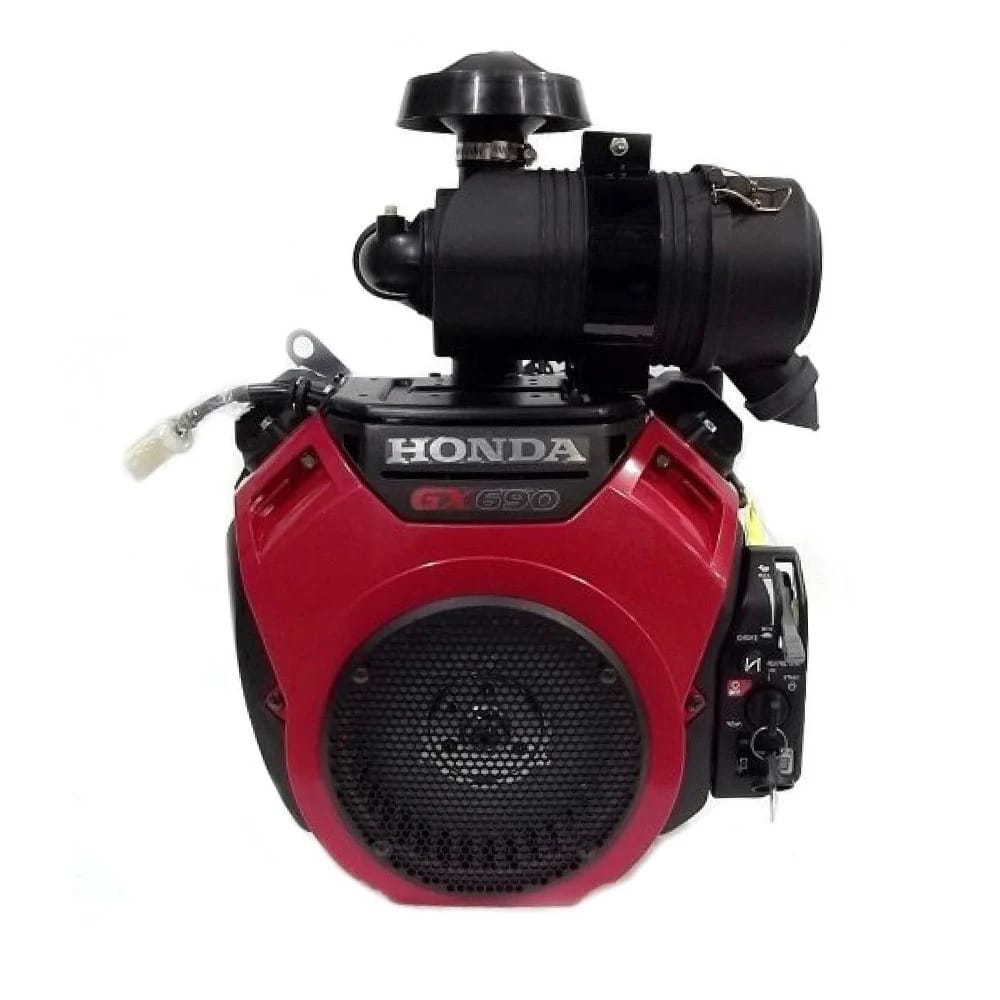

Honda GX690 22.1HP 688cc V-Twin Engine – 1-1/8in Shaft (ID 18266)

Description

Need to repower a commercial wood chipper? The Honda GX690 horizontal engine (ID 18266) provides an oversized 1-1/8-inch output shaft that eliminates expensive drive shaft replacements. Heavy commercial wood chippers subject powerheads to brutal rotational shock loads that snap undersized shafts and destroy internal governor linkages. Honda reinforces this 688cc 22.1HP engine with thick base mounting ears, a rigid crankcase casting, and an internal digital governor built to handle sudden branch feed resistance.

Dual cylinder cast-iron sleeves protect internal tolerances against bore wear, keeping oil consumption low across hundreds of chipping hours. Full-pressure lubrication circulates filtered motor oil directly to high-load rod bearings, ensuring uninterrupted fluid barrier protection during continuous full-throttle operation. The commercial-grade carburetor meters fuel with precision across varying load demands, preventing engine hesitation when chippers feed heavy tree trunks.

Core Mechanical Specifications of Honda GX690 (ID 18266)

• 688cc 22.1HP Commercial V-Twin: Delivers massive industrial horsepower to drive heavy commercial chippers and sawmills.
• 1-1/8-Inch Keyed Horizontal PTO Shaft: Standard commercial diameter matches chipper pulleys, centrifugal clutches, and gearboxes.
• Full-Pressure Oil Lube with Spin-On Filter: Pumps filtered oil continuously to crankshaft journal inserts and rod bearings.
• Centrifugally Cast Iron Cylinder Sleeves: Resists bore wear from abrasive dirt, extending engine life in severe commercial service.
• Dual-Stage Commercial Canister Air Cleaner: Seals tightly to block wood dust and grading grit from entering the combustion chamber.
• 12V Electric Starter Motor: Spins the flywheel ring gear with key activation to eliminate manual starting effort.
• Integrated Honda Oil Alert: Protects internal mechanical parts by shutting off spark if crankcase fluid levels drop.

Mechanical Advantages for Commercial Fleets

This twin-cylinder motor survives rough operator treatment and dirty trailer transport without losing compression.

• An oversized 1-1/8-inch shaft handles high radial belt tension and direct coupling shocks without bending.
• Overhead valve geometry lowers seasonal gasoline purchases while providing broad torque bands for commercial equipment.

Equipment Fitment & Repower Applications

Weighing 97.9 pounds dry with an industry-standard 4-bolt horizontal mounting pattern and 1-1/8-inch shaft, this motor repowers heavy commercial wood chippers, high-pressure water pumps, and rotary tillers without frame modifications.

Factory Warranty Protection & Service Care

• Commercial equipment owners receive 3-Year limited factory warranty coverage on internal mechanical assemblies.
• Consumer property owners receive 3-Year standard factory warranty protection.

Perform oil changes every 100 operating hours using 10W-30 motor oil and a new spin-on filter. Inspect the air filter weekly on dry job sites, and verify the spark plug gap at 0.028 to 0.031 inches. Order the Honda GX690 horizontal shaft engine (ID 18266) from Mulmotor.com for guaranteed factory-fresh units, complete manufacturer warranty coverage, and dedicated commercial equipment support.
