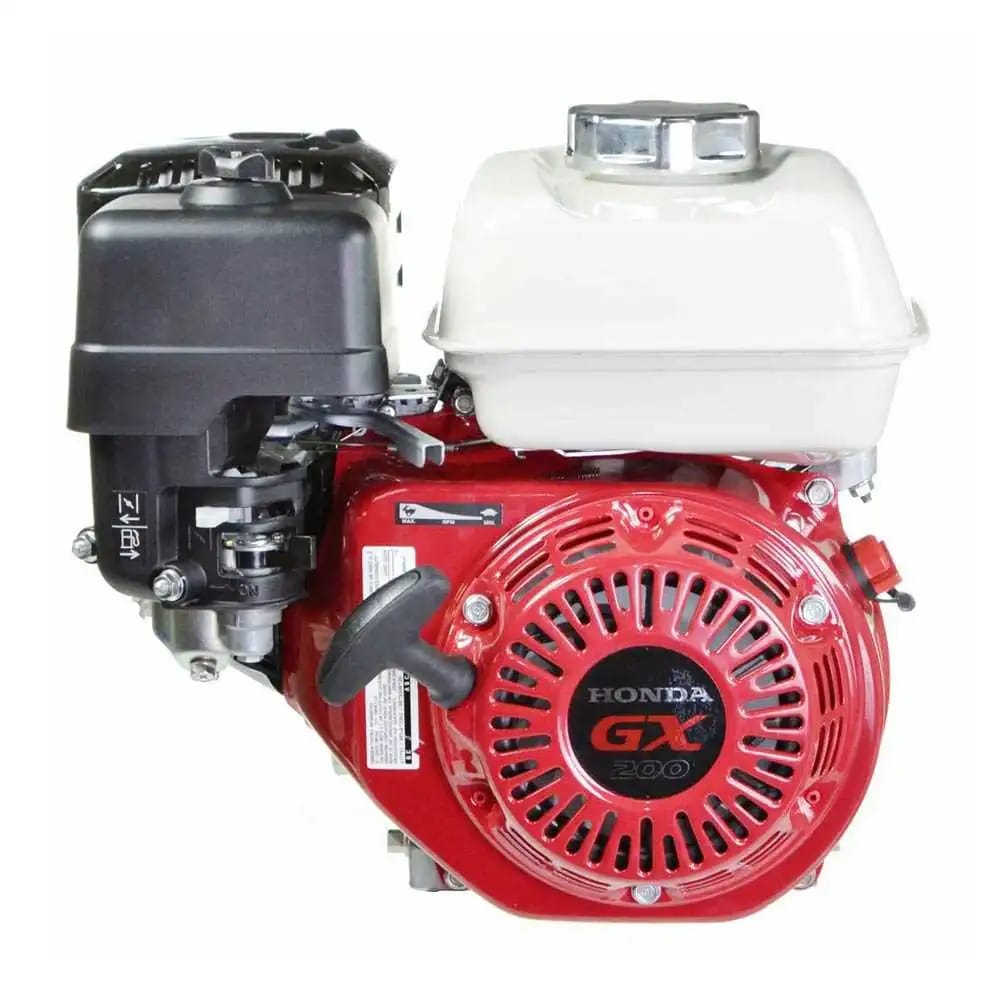

Honda GX200 5.8HP 196cc Engine – 20mm Shaft, Forced Air Cooled

Description

Cast with an abrasion-resistant iron sleeve liner, the Honda GX200 horizontal engine with 20mm shaft withstands continuous high-RPM vibration on imported industrial machinery. Contractors face costly equipment downtime when fitting standard imperial engines into metric compaction tools and European water pumps. Honda solves this fitment hurdle by equipping this 196cc 5.8HP engine with a precision-machined 20mm metric straight keyed output shaft and an ultra-rigid crankcase casting.

An advanced overhead valve architecture draws cooler intake charges into the combustion chamber, creating rapid flame propagation that extracts complete mechanical work from fuel. Splash lubrication coats wrist pins and cylinder walls upon turnover, while the integrated Oil Alert mechanism cuts ignition if fluid reserves fall below critical thresholds. The pull-cord recoil assembly features hardened steel pawls and an automatic mechanical decompressor, enabling fast, low-effort pull starting in sub-freezing morning conditions.

Technical Specifications of Honda GX200 (20mm Shaft)

• 196cc 5.8HP Commercial OHV Engine: Produces crisp throttle response and high torque displacement to handle heavy compaction loads.
• 20mm Metric Keyed Horizontal Shaft: Slides directly into imported European pulleys, clutches, and direct-drive gearboxes.
• Durable Cast-Iron Cylinder Bore Liner: Maintains cylinder roundness and ring seal when operating in abrasive jobsite environments.
• Dual Ball Bearing Crankshaft Support: Absorbs high radial belt tension to prevent crankshaft seal leaks and shaft deflection.
• Integrated Honda Oil Alert Sensor: Cuts ignition spark if oil levels dip low to prevent catastrophic piston seizure.
• Dual-Element Commercial Air Cleaner: Blocks fine abrasive dust from reaching the cylinder bore in severe work environments.
• 3.3-Quart Metal Fuel Tank: Includes an internal debris strainer and fuel shutoff valve for safe equipment transport.
• Super Lo-Tone Muffler Assembly: Dampens harsh exhaust notes for quieter operation on noise-sensitive commercial jobsites.

Operational Reliability in Commercial Service

This engine delivers dependable commercial utility stamina while handling severe continuous loads on imported contractor equipment.

• Precision-ground 20mm shaft dimensions eliminate the need for lathe turning or custom keyed bushings on imported gear.
• Centrifugally cast iron cylinder lining and thick crankcase casting prevent thermal distortion during continuous operation.
• Compaction contractors and utility trenching crews gain dependable power for high-hour processing machinery.
• Standard base bolt dimensions allow fast drop-in repower swaps without frame drilling or fabrication delays.

Machinery Compatibility & Chassis Mounting

Weighing 35.5 pounds dry with an industry-standard 4-bolt horizontal mounting base and 20mm shaft, this motor powers reversible plate compactors, European water pumps, concrete flat saws, and soil tillers without frame modifications.

Warranty Coverage & Preventive Maintenance

• Commercial fleet operators receive 3-Year limited factory warranty coverage against component defects.
• Residential and estate owners receive 3-Year complete consumer warranty protection.

Maintain peak performance by changing oil every 100 hours with standard 10W-30 engine oil, cleaning the foam pre-filter weekly on dusty sites, and checking the spark plug gap at 0.028 to 0.031 inches. Order the Honda GX200 horizontal shaft engine from Mulmotor.com for guaranteed factory-fresh units, complete manufacturer warranty coverage, and dedicated commercial equipment support.
