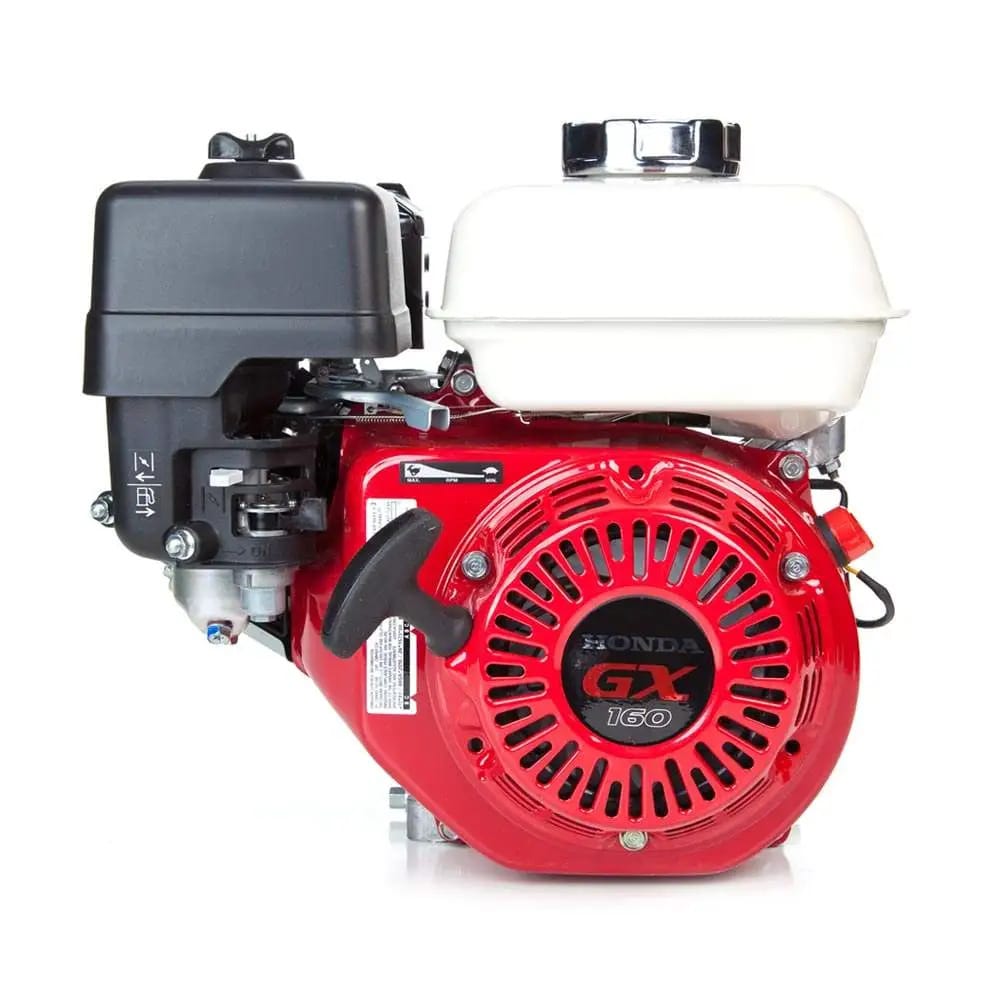

Honda GX160 4.8HP 163cc Engine – 3/4in Shaft, Forced Air Cooled

Description

Spinning commercial pressure pumps and rammers, the Honda GX160 horizontal shaft engine supplies continuous 4.8 horsepower across punishing industrial work shifts. High-pressure washing and heavy soil compaction place intense continuous load resistance on small engines, which causes overheating and thrown connecting rods on consumer powerheads. This 163cc commercial engine features high-capacity cooling fins, a forged steel crankshaft, and an overhead valve cylinder head engineered to absorb severe mechanical punishment.

An oversized cast-iron cylinder sleeve protects internal tolerances against bore wear, keeping oil consumption low across hundreds of operating hours. Dual ball bearings anchor the 3/4-inch output shaft, preventing crank seal leaks caused by tight drive belts. The commercial-grade carburetor meters fuel with precision across varying load demands, preventing engine hesitation when pumps transition from low-pressure bypass to full working spray.

Key Engineering Features of Honda GX160

• 163cc 4.8HP Commercial OHV Powerplant: Delivers 4.8 net horsepower to drive industrial pumps and heavy plate compactors.
• 3/4-Inch Keyed Horizontal PTO Shaft: Standard commercial diameter matches pump couplings, gearboxes, and multi-groove pulleys.
• Durable Cast-Iron Cylinder Sleeve: Resists bore wear from abrasive dirt, extending engine life in severe commercial service.
• Dual Ball Bearing Crank Support: Stabilizes the PTO crankshaft end against severe lateral belt tension and chain drive whip.
• Commercial Dual-Stage Air Cleaner: Traps fine dust particles across two media layers to preserve cylinder wall compression.
• Heavy-Duty Manual Recoil Starter: Features high-strength cord and steel ratchet pawls for dependable hand starting.
• Integrated Honda Oil Alert System: Shuts down the ignition automatically if crankcase oil falls below safe operating levels.

Engineering Integrity & Operational Economy

Engineered for continuous commercial operation where equipment failure halts company revenue, this platform sets the standard for repower efficiency.

• Heavy cast iron cylinder lining and thick crankcase casting prevent thermal distortion during midsummer heat waves.
• Low oil consumption rates and 100-hour oil service intervals keep machines working in the field rather than sitting on shop lift racks.
• Commercial power washing contractors and concrete finishing crews gain dependable power for high-hour machinery.

Target Machinery & Drop-In Fitment

Weighing 33 pounds dry with an industry-standard 4-bolt horizontal mounting base and 3/4-inch shaft, this motor powers direct-drive pressure washers, vibratory plate compactors, portable water pumps, and rotary tillers without frame drilling.

Factory Warranty Terms & Routine Upkeep

• Commercial turf and industrial operators receive 3-Year limited factory warranty backing.
• Consumer operations receive 3-Year standard manufacturer warranty coverage.

Execute oil changes every 100 operating hours using 10W-30 motor oil. Inspect the dual-element air cleaner weekly on dusty jobsites, and check the spark plug electrode gap at 0.028 to 0.031 inches. Order the Honda GX160 horizontal shaft engine from Mulmotor.com for guaranteed factory-fresh units, complete manufacturer warranty coverage, and dedicated commercial equipment support.
