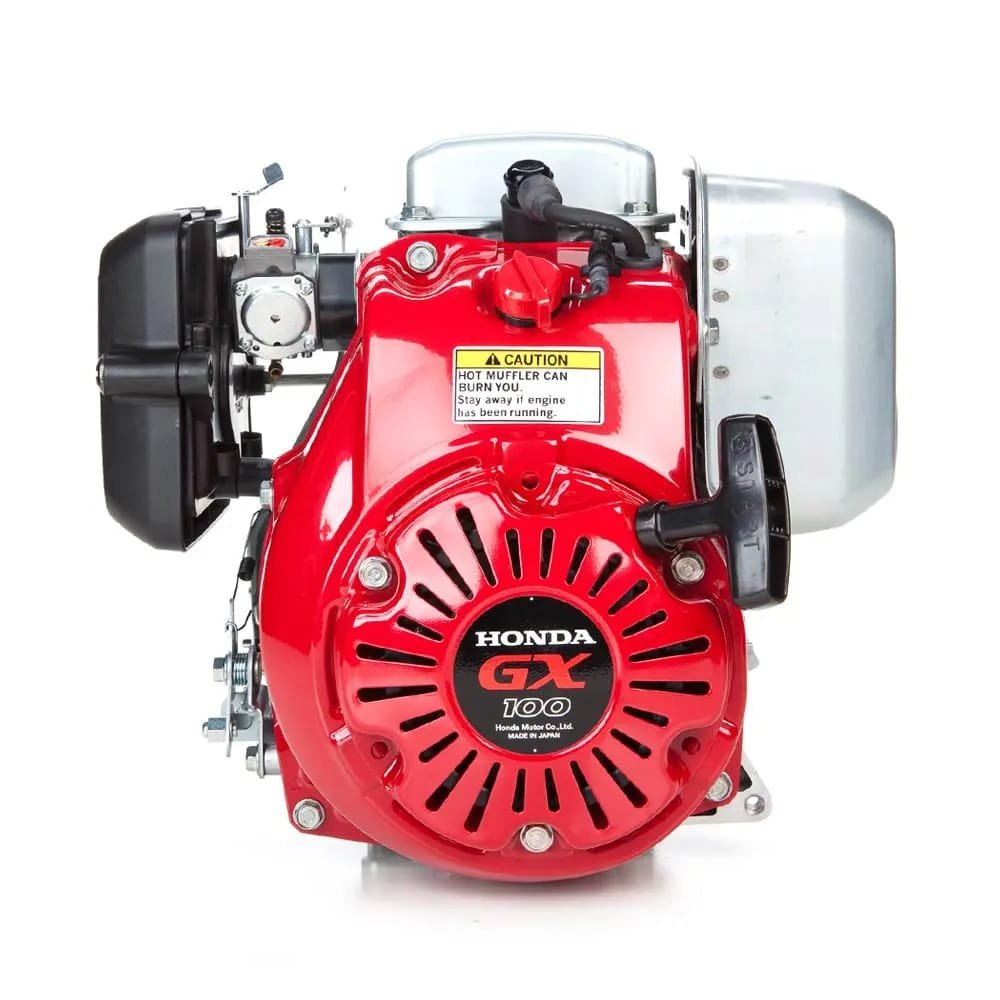

Honda GX100-KRMB 2.8HP 98cc Engine – Forced Air Cooled

Description

Repower jumping jack tampers with the Honda GX100-KRMB horizontal engine to restore hard-hitting compaction force on active utility trench sites. Trench rammers subject small engines to brutal high-amplitude vertical shock loads that shatter standard crankcases and shake float carburetors loose. Honda engineers this 98cc 2.8HP engine with a diaphragm carburetor, heavy-duty crankcase web gussets, and an engineered recoil housing built for extreme vibratory abuse.

An oversized cast-iron cylinder sleeve protects bore roundness against abrasive trench dust, keeping ring tension tight over hundreds of compaction hours. Splash lubrication feeds oil to the connecting rod bearing and wrist pin even when the rammer operates at steep trench angles. The dual-element heavy-duty air cleaner stops crushed aggregate dust before air reaches the combustion chamber, preserving compression over multiple working seasons.

Engine Architecture of Honda GX100-KRMB

• 98cc 2.8HP Rammer-Spec OHV Engine: Produces focused rotational torque to drive heavy jumping jack tamping mechanisms.
• Specialized Rammer Diaphragm Carburetor: Prevents fuel flooding and lean-out stalls under violent vertical vibration cycles.
• Cast-Iron Cylinder Bore Liner: Preserves bore concentricity and compression seal under severe high-heat commercial cycles.
• Reinforced Heavy-Duty Recoil Starter: Features steel ratchet pawls and heavy cord to survive repeated commercial pull cycles.
• Specialized Rammer Exhaust System: Deflects hot exhaust gases away from the operator zone while resisting compaction vibration.
• Low-Oil Automatic Shutdown System: Protects internal mechanical parts by shutting off spark if crankcase fluid levels drop.

Commercial Advantages & Heavy-Duty Build

Built for the most abusive compaction tools in the construction industry, this commercial engine delivers reliable force without carburetor flooding.

• Reinforced base mounting ears and a heavy crankshaft journal resist fatigue from rough equipment vibration.
• High combustion efficiency lowers fuel burn per job, cutting daily operating expenses across commercial fleets.

Commercial Equipment Applications & Fit

Weighing 23.4 pounds dry with specialized compaction mounting patterns, this motor mounts directly onto commercial trench rammers, jumping jacks, and narrow-trench soil compactors without adapter plates.

Warranty Protection & Routine Upkeep

• Factory warranty terms provide 3-Year commercial and consumer coverage on all core mechanical assemblies.

Service this engine with fresh 10W-30 motor oil every 50 operating hours. Tap clean the air filter element weekly on dusty job sites, and maintain the spark plug electrode gap at 0.028 inches. Order the Honda GX100-KRMB horizontal shaft engine from Mulmotor.com for guaranteed factory-fresh units, complete manufacturer warranty coverage, and dedicated commercial equipment support.
