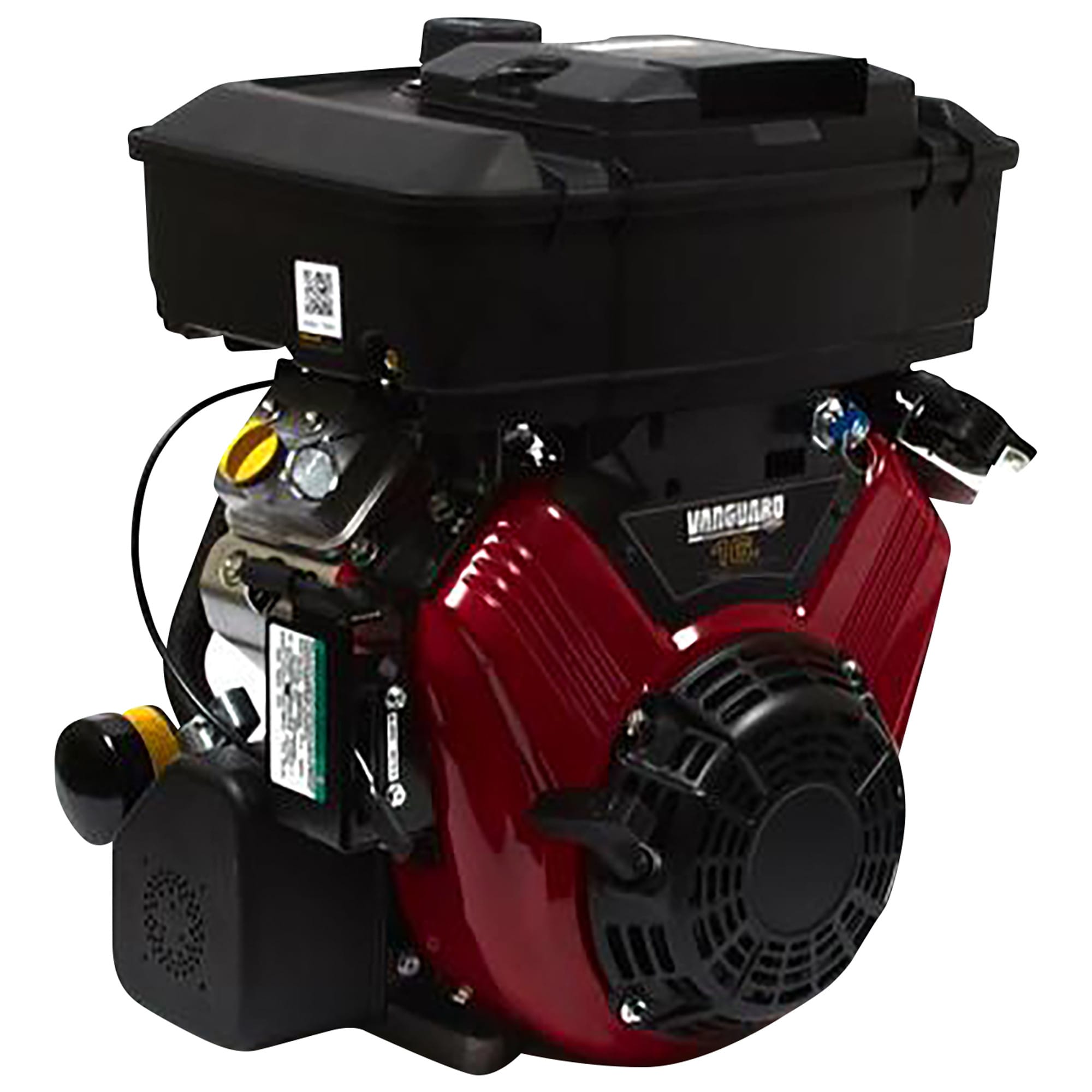

Briggs & Stratton Vanguard 16HP 479cc V-Twin Engine – 1in Shaft, Electric Start

Description

During continuous 8-hour pressure washing shifts, the Briggs & Stratton Vanguard 16HP V-Twin engine delivers uninterrupted shaft output under heavy pump bypass cycles. Commercial cleaning skids place intense continuous load resistance on small engines, which causes overheating and thrown connecting rods on consumer powerheads. This 479cc Vanguard commercial engine features high-capacity cooling fins and a forged steel crankshaft engineered to absorb severe torque loading.

An oversized cast-iron cylinder sleeve protects internal tolerances against bore wear, keeping oil consumption low across hundreds of operating hours. Full-pressure lubrication circulates filtered motor oil directly to high-load rod bearings, ensuring uninterrupted fluid barrier protection during continuous full-throttle operation. The 1-inch horizontal shaft handles direct pump couplings and multi-groove drive pulleys without crankshaft deflection.

Technical Features of Briggs & Stratton Vanguard 16HP

• 479cc 16HP Commercial V-Twin: Produces 16.0 gross horsepower to sustain high pump head pressure without thermal drop-off.
• 1-Inch Keyed Horizontal PTO Shaft: Standard commercial diameter matches pump couplings, gearboxes, and multi-groove pulleys.
• Full-Pressure Lubrication Circuit: Circulates oil through an automotive spin-on filter to trap metallic shavings before they reach journals.
• 12-Volt Solenoid Shift Electric Starter: Spins the flywheel ring gear with key activation to eliminate manual starting effort.
• Dual-Stage Commercial Canister Filter: Traps fine dust particles across two media layers to preserve cylinder wall compression.

Heavy-Duty Architecture & Low Maintenance

Built for professional pressure washing contractors, this engine delivers high torque output and reliable starting across long summer workdays.

• Centrifugally cast iron cylinder sleeves and a reinforced crankcase base withstand continuous heavy gear drive loads.
• High combustion efficiency lowers fuel burn per job, cutting daily operating expenses across commercial fleets.
• Pressure washing contractors and equipment rental yards gain dependable power for high-hour wash skids.

Equipment Integration & Fitment Specs

Weighing 72 pounds dry with an industry-standard 4-bolt horizontal base pattern and 1-inch shaft, this motor repowers direct-drive pressure washers, hydraulic power packs, portable water pumps, and rotary tillers without frame drilling.

Commercial Coverage & Maintenance Upkeep

• Factory warranty terms provide 3-Year commercial and consumer coverage on all core mechanical assemblies.

Service this engine with fresh 10W-30 motor oil and a new spin-on filter every 100 operating hours. Tap clean the air filter element weekly on dusty job sites, and maintain the spark plug electrode gap at 0.030 inches. Order the Briggs & Stratton Vanguard 16HP horizontal shaft engine from Mulmotor.com for guaranteed factory-fresh units, complete manufacturer warranty coverage, and dedicated commercial equipment support.
