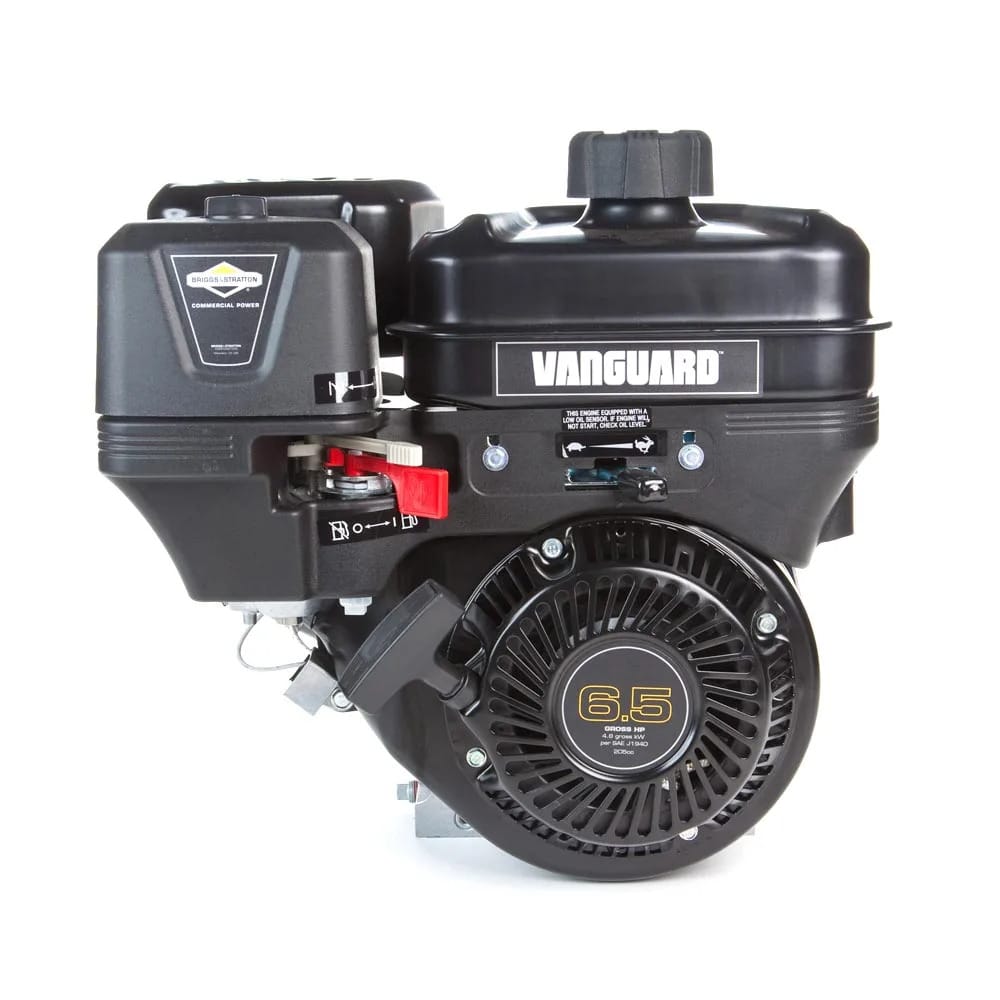

Briggs & Stratton 13L352-0049-F8 6.5HP 205cc Engine – 3/4in Shaft

Description

Delivering continuous shaft torque, the Briggs & Stratton 13L352-0049-F8 horizontal engine drives heavy commercial utility equipment without thermal breakdown. Long shifts under full throttle generate severe crankcase heat that thins conventional motor oil and causes ring sticking on consumer powerheads. This 205cc Vanguard-grade engine uses an overhead valve cylinder head and high-flow cooling fins to dissipate heat, keeping combustion chamber temperatures stable during demanding pumping tasks.

Dual ball bearings support the 3/4-inch horizontal output shaft, shielding internal journals from lateral belt tension and chain drive whip. Splash lubrication coats the connecting rod bearing and piston skirt with clean oil, preventing surface galling under continuous full-load operation. The commercial dual-stage air cleaner stops abrasive field soil before air enters the carburetor venturi, preserving factory valve clearances across multiple work seasons.

Key Engineering Features of Briggs & Stratton 13L352-0049-F8

• 205cc Commercial OHV Powerplant: Produces 6.5 rated horsepower to sustain high pump head pressure and tiller tining torque.
• 3/4-Inch Straight Keyed Shaft: Matches standard industrial drive pulleys, centrifugal clutches, and water pump impellers.
• Dual Ball Bearing Support: Stabilizes the PTO crankshaft end to prevent oil seal failure caused by heavy belt tension.
• Cast-Iron Cylinder Bore Liner: Preserves bore concentricity and compression seal under severe high-heat commercial cycles.
• Dual-Stage Industrial Air Cleaner: Combines an oiled foam pre-cleaner with a paper cartridge to trap fine soil grit.
• Mechanical Engine Governor: Stabilizes shaft speed under fluctuating mechanical resistance from pumps and tillers.

Field Durability & Operational Economy

Built for operators who monitor equipment operating costs, this commercial single-cylinder engine eliminates repetitive shop visits.

• A rigid aluminum crankcase casting and dual ball bearings maintain shaft alignment under severe belt drive tension.
• High combustion efficiency lowers fuel burn per jobsite shift, cutting daily operating expenses across commercial fleets.
• Rental yards and commercial turf operations gain dependable power for tillers and pressure cleaning skids.

Equipment Fitment & Repower Applications

Weighing 34 pounds dry with an industry-standard 4-bolt horizontal base pattern and 3/4-inch shaft, this motor repowers direct-drive pressure washers, rotary tillers, compact transfer pumps, and soil aerators without chassis modifications.

Warranty Coverage & Field Maintenance

• Commercial fleet operators receive 2-Years of limited factory warranty coverage against component defects.
• Residential and estate owners receive 2-Years of complete consumer warranty protection.

Change engine oil after the initial 20 operating hours, then service every 100 hours with SAE 30 or 10W-30 motor oil. Inspect the air filter weekly on dry grading sites, and maintain spark plug gaps at 0.030 inches. Order the Briggs & Stratton 13L352-0049-F8 horizontal shaft engine from Mulmotor.com for guaranteed factory-fresh units, complete manufacturer warranty coverage, and dedicated commercial equipment support.
