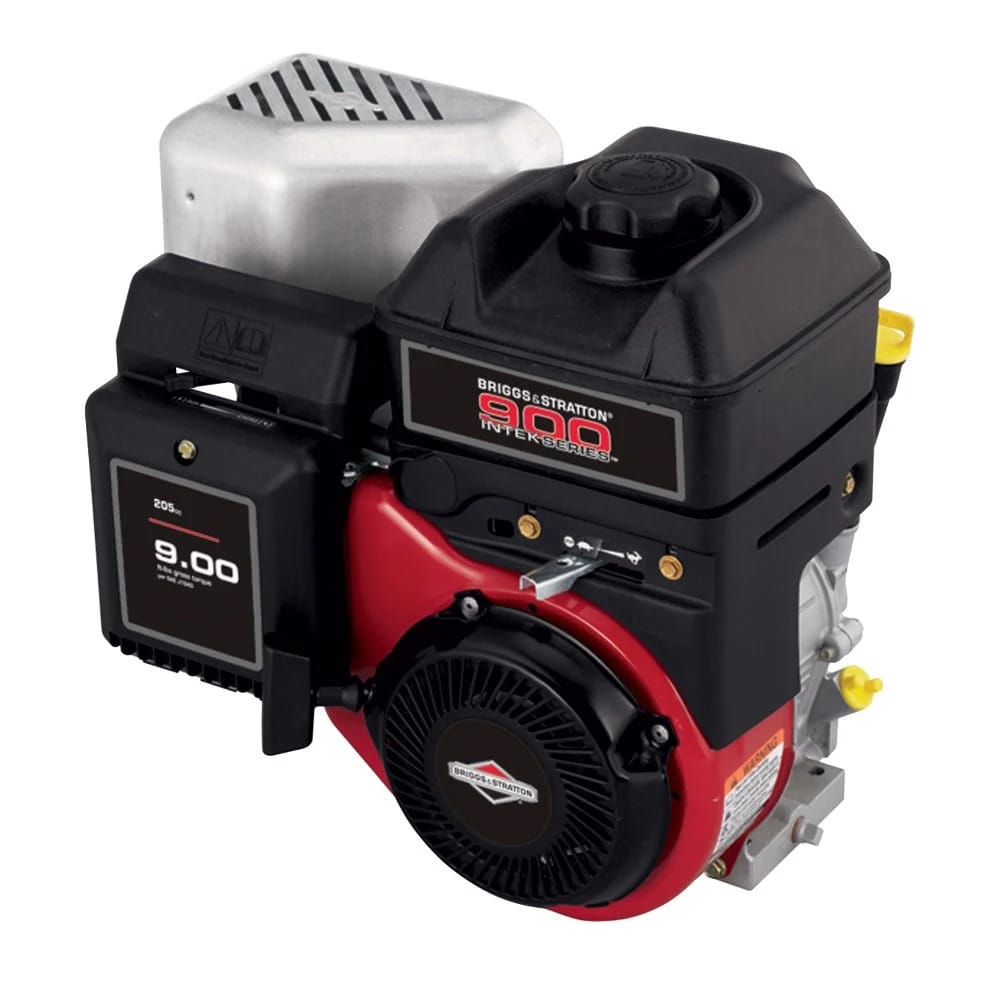

Briggs & Stratton 12S402-0022-F8 205cc Engine – 3/4in Shaft

Description

Need to repower a seized pressure pump? The Briggs & Stratton 12S402-0022-F8 horizontal shaft engine provides an exact drop-in replacement that eliminates costly machine modifications. Small commercial utility engines fail when operated with dirty fuel, clogged air cleaners, or worn connecting rod bearings. Briggs & Stratton addresses these failure points with a 205cc overhead valve engine built to deliver continuous torque in demanding commercial applications.

The 3/4-inch keyed drive shaft handles direct-drive pump couplers and multi-groove belt pulleys without shaft deflection. An internal oil slinger distributes lubrication over the cylinder wall and camshaft gears, keeping friction low under heavy continuous operation. The industrial carburetor features calibrated fuel passages that resist gumming from modern ethanol-blend gasoline, ensuring smooth engine idling between wash cycles.

Core Mechanical Specifications of Briggs & Stratton 12S402-0022-F8

• 205cc Displacement OHV Motor: Generates 9.00 gross torque ft-lbs to drive high-pressure pumps and heavy utility gear.
• 3/4-Inch Keyed Horizontal PTO Shaft: Integrates directly with standard pump couplings, gear reducers, and belt pulleys.
• Overhead Valve Cylinder Design: Promotes cooler running temperatures and complete fuel combustion to reduce emissions.
• Dual-Element Air Cleaner System: Protects internal engine surfaces from abrasive dust and dirt contamination.
• Mechanical Flywheel Governor: Adjusts throttle position automatically to maintain constant RPM under varying tool resistance.
• Durable Manual Recoil Starter: Built with high-strength recoil springs to withstand repeated daily operator pulls.
• All-Steel Fuel Tank Assembly: Mounts securely to the engine block with an internal sediment screen to filter incoming gasoline.

Mechanical Advantages for Commercial Fleets

This single-cylinder motor survives rough operator treatment and dirty trailer transport without losing compression.

• A precision-machined aluminum block and heat-treated lower shaft resist bending when driven under high belt tension.
• Overhead valve geometry lowers seasonal gasoline purchases while providing broad torque bands for commercial equipment.

Equipment Fitment & Repower Applications

Weighing 33 pounds dry with an industry-standard four-bolt horizontal mounting pattern, this 3/4-inch shaft engine bolts onto cold-water pressure washers, commercial turf edgers, concrete vibrators, and portable generators without frame drilling.

Factory Warranty Protection & Service Care

• Commercial equipment owners receive two years of limited factory warranty coverage on internal mechanical assemblies.
• Consumer property owners receive two years of standard factory warranty protection.

Perform oil changes every 100 operating hours using 10W-30 motor oil. Inspect the air filter weekly on dry job sites, and verify the spark plug gap at 0.030 inches. Order the Briggs & Stratton 12S402-0022-F8 horizontal shaft engine from Mulmotor.com for guaranteed factory-fresh units, complete manufacturer warranty coverage, and dedicated commercial equipment support.
