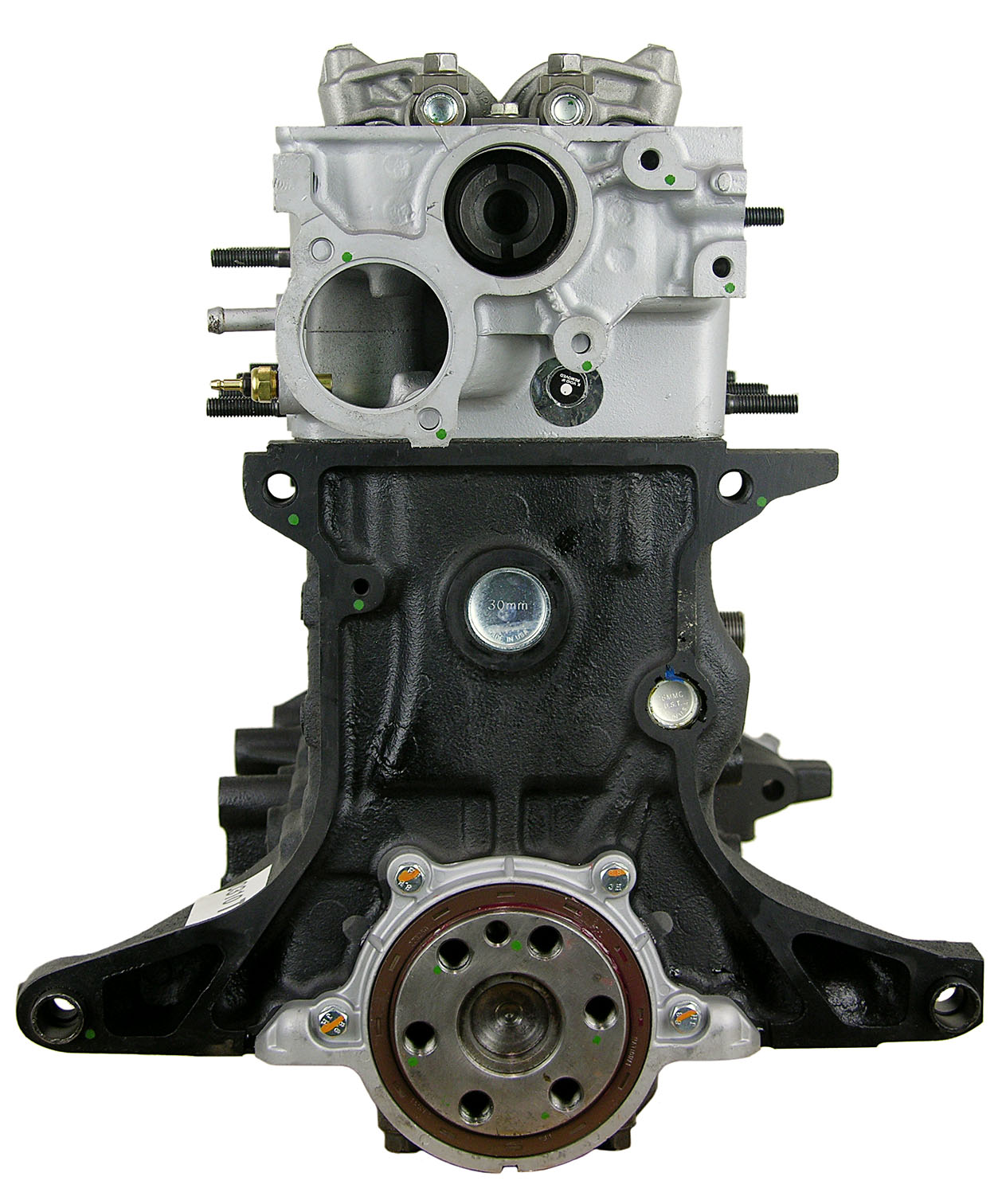

Ford Festiva B3 1.3L L4 Remanufactured Engine 12499E 1990-1992

Description

Drivers struggle with worn piston rings and excessive valvetrain noise before choosing this Ford Festiva B3 Remanufactured Engine. Each 1.3L 4-Cylinder SOHC power plant features casting B3 iron metallurgy and refreshed valvetrain geometry. Technicians must perform a pressurized oil prime before startup and execute an exact 500-mile break-in oil change to protect the single overhead camshaft from premature wear.

Manufactured with a cast iron cylinder block stamped B3 on the right side end deck, this assembly maintains structural integrity. The cylinder head features casting B301 architecture with reamed valve guides. The rotating group combines a micro-polished nodular iron crankshaft, balanced forged steel connecting rods, and oversized hypereutectic pistons. Net weight measures 228 lbs within crated dimensions of 36in length by 36in width by 36in height. Crankcase oil pan capacity equals 3.5 quarts.

Key Features of Ford B3

Fleet maintenance managers buy Ford B3 remanufactured engine assemblies to restore peak commuter fuel economy and dependable cold starts. This long block replacement provides factory-matched tolerances for ultra-compact front-wheel-drive hatchback chassis.

• Cylinder head casting B301 receives precision multi-angle valve seat cutting to maintain combustion seal.
• Diamond plateau honed cylinder walls establish an Ra 15 micro-inch finish for fast ring seating.
• Align-honed cast iron main bearing saddles support smooth crankshaft rotation under load.
• Micro-polished crankshaft journals eliminate runout to protect bi-metal engine bearings from premature scuffing.
• Balanced connecting rods maintain uniform reciprocation to reduce secondary 4-cylinder engine vibrations.
• Multi-layer composite cylinder head gaskets withstand combustion heat to prevent external coolant migration.
• Pre-assembled valvetrain components undergo mechanical clearance checks to ensure quiet rocker arm action.

Dyno Bench Clearance Machining Specifications

Dyno cell testing validates power production and internal oil gallery pressurization prior to packaging. The 1.3L 1324cc SOHC engine outputs 63 HP at 5,000 RPM and 73 ft-lbs of shaft torque at 3,000 RPM. Main journal oil clearance holds between 0.0010in and 0.0014in, while connecting rod clearance measures 0.0011in to 0.0014in. Individual cylinder compression verifies at 180 PSI across all 4 chambers. Hot engine oil pressure maintains 50 PSI at 3,000 RPM with regulated coolant temperatures stabilizing at 188°F.

Vehicle Fitment Drivetrain Guide

This long block repowers 1990 to February 1992 Ford Festiva hatchbacks equipped with the 1.3L 1324cc SOHC engine carrying VIN Code H. Applicable drivetrains include front-wheel drive paired with a 4-Speed or 5-Speed manual transaxle or 3-Speed automatic. This engine does not fit post-1993 1.3L Festiva variants with revised fuel injection mounts, Mazda 323 1.6L B6 platforms, or Ford Aspire 1.3L engines featuring altered intake manifold patterns.

Installation Protocol Service Requirements

Technicians must verify distributor gear drive engagement, mechanical fuel pump lever seating, and throttle cable free-play during the installation procedure. Operational warnings restrict use in custom forced-induction turbo setups or off-road utility carts lacking proper chassis air circulation and secondary oil filtration.

• Pre-fill the oil filter and prime the lubrication circuit with 10W-30 motor oil before starting.
• Drain break-in motor oil and replace the oil filter after completing the initial 500 miles.
• Check mechanical rocker arm clearance and inspect distributor timing at the 1,500-mile maintenance check.

Warranty Terms Core Return Policy

Every long block assembly comes backed by a standard 3-Year Unlimited-Mile warranty for lasting peace of mind. We provide free prepaid return freight shipping for your original core engine within 30 days of delivery. The wooden crate contains the remanufactured long block core, oil pan, and valve cover.
