Volkswagen Golf Jetta Beetle BEV 2.0L L4 Engine 2003-2005

Description

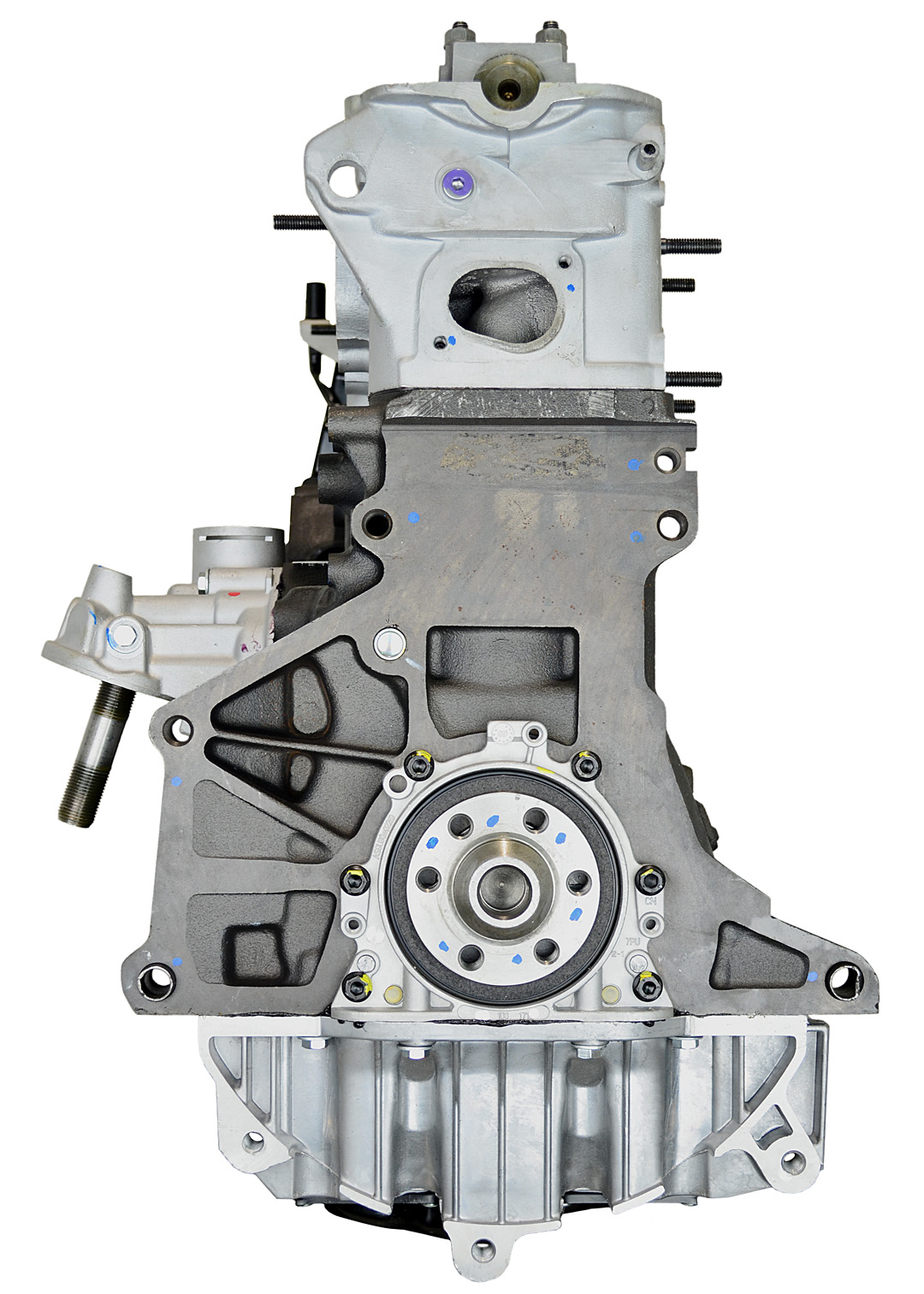

Restore dependable commuter performance to your chassis with this precision-machined Volkswagen BEV 2.0L Remanufactured Engine. Each 2.0L 4-Cylinder 8-Valve SOHC long block features diamond-decked surfaces and align-honed main saddles. Technicians must perform pressurized oil priming before initial start and complete an exact 500-mile break-in oil service to protect hydraulic cam lifters from premature contact wear.

Engineered with a dense cast iron cylinder block, this BEV assembly maintains bore roundness under severe thermal stress. The rotating group features a micro-polished forged steel crankshaft, forged connecting rods, and oversized hypereutectic pistons with coated skirts. The 8-Valve aluminum crossflow cylinder head receives diamond deck milling for multi-layer steel head gasket retention. Dry weight measures 240 lbs within crated dimensions of 36in length by 36in width by 36in height. Sump capacity totals 4.4 quarts.

Key Features of Volkswagen BEV

Independent European repair specialists buy Volkswagen BEV remanufactured engine assemblies to eliminate excessive oil consumption and restore factory compression. This long block replacement provides factory-matched machine tolerances for transverse front-wheel-drive platforms.

• SOHC 8-Valve crossflow cylinder heads undergo CNC valve seat cutting to maintain 0.001in runout.
• Diamond plateau honed cylinder sleeves establish an Ra 14 micro-inch finish for rapid ring seating.
• Micro-polished crankshaft journals eliminate runout to protect bi-metal bearings under load.
• Cast iron main bearing saddles undergo align-honing to prevent crank binding across all engine speeds.
• Upgraded valve stem seals prevent oil migration into combustion chambers during cold starts.
• Multi-layer steel head gaskets ensure combustion chamber seal integrity under high thermal cycles.
• New high-tensile cylinder head bolts supply uniform clamp load across all 4 combustion bores.

Dyno Bench Clearance Machining Specifications

Dyno cell spin testing verifies mechanical oil gallery pressurization and power output prior to crate packaging. The 2.0L 1984cc SOHC engine outputs 115 HP at 5,200 RPM and 122 ft-lbs of shaft torque at 3,200 RPM. Crankshaft main journal oil clearance holds between 0.0010in and 0.0014in, while connecting rod clearance measures 0.0011in to 0.0014in. Individual cylinder compression gauges verify 180 PSI across all 4 cylinders. Hot engine oil pressure maintains 55 PSI at 3,000 RPM with regulated coolant temperatures steady at 190°F.

Vehicle Fitment Drivetrain Guide

This engine fits 2003 to 2005 Volkswagen Golf, 2003 to 2005 Volkswagen Jetta, and 2003 to 2005 Volkswagen New Beetle models equipped with the 2.0L 1984cc SOHC BEV engine. Compatible drivetrains include front-wheel drive paired with 5-Speed manual transaxles or 4-Speed automatic transmissions. This long block does not fit earlier AEG engines, secondary-air AVH or AZG platforms, or turbocharged 1.8T models due to intake sensor, dipstick tube, and crankcase breather variations.

Installation Protocol Service Requirements

Technicians must inspect secondary air injection hoses, check plastic coolant flange sealing surfaces, and prime oil passages during engine install. Operational warnings restrict use in custom turbo applications exceeding 5 PSI boost on stock compression pistons or track chassis lacking auxiliary oil coolers.

• Pre-fill the spin-on oil filter and prime the lubrication circuit with 5W-40 synthetic motor oil.
• Drain initial break-in oil and install a replacement oil filter at the 500-mile service point.
• Check timing belt tracking and inspect water pump impeller clearance at 1,500 miles.

Warranty Terms Core Return Policy

This long block carries our standard 3-Year Unlimited-Mile warranty for reliable road service. We provide free prepaid return freight shipping for your depleted rebuildable core engine within a standard 30-day window. The crated assembly contains the remanufactured long block, complete timing belt assembly, oil pan, and valve cover.
