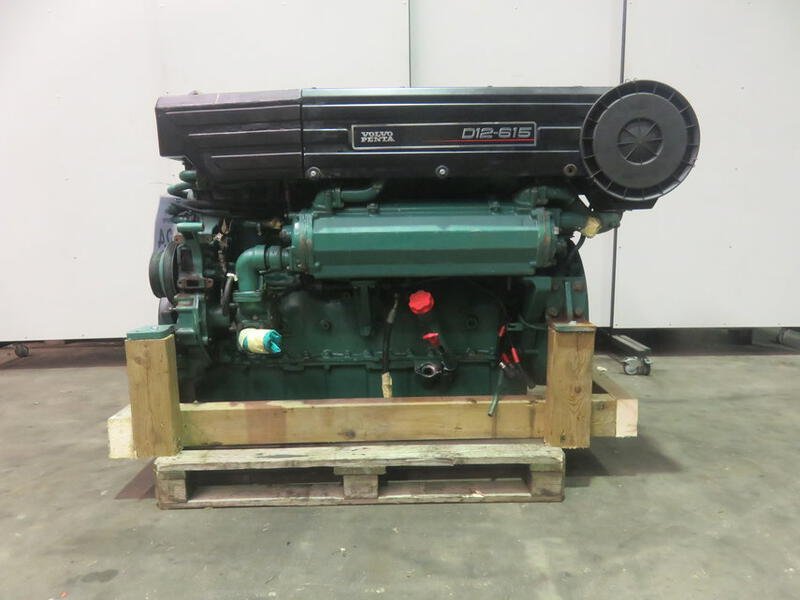

Used Volvo Penta D12-615 615HP Marine Diesel Engine
$6,675.00
In Stock
Description
Used Volvo Penta D12-615 615HP Marine Diesel Engine
Used Volvo Penta D12-615 615hp Six Cylinder Heat Exchanger Cooled Turbo Intercooled Bobtail Marine Diesel Engine. Exact model specification is D12C-A-MP. Just into stock from a commercial client in Europe. Very clean condition and well maintained in good running order with approx. 9000hrs running time. 12 Litre unit producing 615hp @ 2100rpm. 24V Electrics and complete with instrumentation and controls.
Manufacturer: Volvo
Model: Volvo Penta D12-615 615hp Marine Diesel Engine
Year built: 2003
Power: 615
Motor: 458
Fuel: Diesel
Used Volvo Penta D12-615 615HP Marine Diesel Engine Specs
| Brand | Volvo Penta |
| Full Model Code | D12D-A MP (D12-615 Heavy Duty Fleet) |
| Country of Origin | Sweden |
| Engine Family/Series | Volvo Penta D12 Commercial & High-Performance Line |
| Engine Type & Configuration | Inline 6-Cylinder, 4-Stroke, Overhead Camshaft (OHC) Heavy Diesel |
| Aspiration & Induction System | Turbocharged with Seawater-Cooled Charge Air Cooler (Aftercooler) |
| Displacement | 12.130 Liters / 12130 cc |
| Bore x Stroke | 131.0 mm x 150.0 mm |
| Cylinder Count & Valves per Cylinder | 6-Cylinder, 4-Valves per Cylinder (24 Valves Total) |
| Compression Ratio | 16.5:1 |
| Rated Power / Horsepower | 615 HP (452 kW) @ 2300 RPM |
| Maximum Engine Speed / Rated RPM | 2300 RPM |
| Maximum Torque | 2250 Nm @ 1400 RPM |
| Fuel System & Injection Type] | Electronic Unit Injectors (EUI) High-Pressure Direct Injection |
| Governor Type | Electronic Vessel Control (EVC) / EDC Engine Management System |
| Electrical System Voltage & Alternator Output | 24V System, 60 Amp Marine Grade Alternator |
| Starting System | 24V Heavy Duty Electric Starter Motor |
| Cooling System Type | Freshwater Cooling with Premium Copper-Nickel Tube Exchanger Units |
| Lubricating Oil Capacity / Oil Pan Capacity | 35.0 Liters |
| Exhaust Diameter / Exhaust System Type | 150 mm / Twin-Wall Waterjacketed Turbocharged Wet Exhaust Output |
| Flywheel & Flywheel Housing Size | SAE 1 Flywheel Housing Standard Heavy-Duty Spec |
| Dry Weight without Marine Gear | 1150 kg (2535 lbs) |
| Dimensions L x W x H | 1581 mm x 936 mm x 1058 mm |
| Emission Certifications & Duty Rating | IMO Tier I, EPA Tier 2, EU RCD / Rating 5 Light Commercial & Premium Yacht Duty |
| Application | Large flybridge motor yachts, commercial offshore sportfishers, fast charter passenger vessels, and workboat launches (Typical hull lengths 45-60 feet, running via traditional high-torque heavy shaft lines or V-drives). |
