Used Thornycroft T-110 56HP Marine Diesel Engine
$2,017.00
In Stock
Description
Used Thornycroft T-110 56HP Marine Diesel Engine

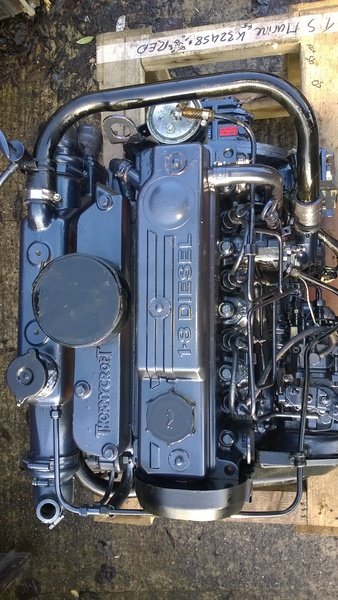

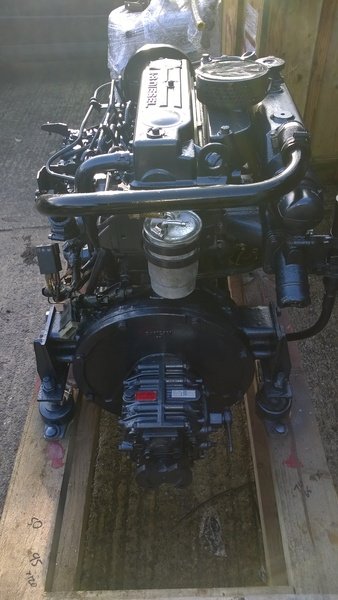

Used Thornycroft T-110 56hp Four Cylinder Marine Diesel Engine With Hurth Gearbox and Control Panel. Removed from a Moody 425 which was heading out to the BVIs. In good running order when removed, starts instantly and runs very smoothly. Tested and inspected by our workshops, serviced, painted and ready to fit.
Manufacturer: Thornycroft
Year built: 1988
No. of cylinders: 4
Cylinder capacity: 1.8
Starter: Electric start
Cooling type: Fresh water
Power: 56
Motor: 41
Fuel: Diesel
Used Thornycroft T-110 56HP Marine Diesel Engine Specs
| Brand | Thornycroft |
| Full Model Code | T-110 (Leyland 4/98 Base Engine Platform) |
| Country of Origin | United Kingdom |
| Engine Family/Series | Thornycroft Mid-Range Marine Propulsion Line |
| Engine Type & Configuration | Inline 4-Cylinder, 4-Stroke, Vertical Marine Diesel |
| Aspiration & Induction System | Naturally Aspirated, Direct Injection |
| Displacement | 3.770 Liters / 3770 cc |
| Bore x Stroke | 98.0 mm x 125.0 mm |
| Cylinder Count & Valves per Cylinder | 4-Cylinder, 2-Valves per Cylinder (8 Valves Total) |
| Compression Ratio | 16.0:1 |
| Rated Power / Horsepower | 56 HP (41.8 kW) @ 2500 RPM |
| Maximum Engine Speed / Rated RPM | 2500 RPM |
| Maximum Torque | 190 Nm @ 1500 RPM |
| Fuel System & Injection Type] | Mechanical Simms/Minimec In-line Multi-Plunger Injection Pump |
| Governor Type | Mechanical All-Speed Governor |
| Electrical System Voltage & Alternator Output | 12V System, 55 Amp Charging Alternator |
| Starting System | 12V Heavy Duty Electric Starter Motor |
| Cooling System Type | Freshwater Closed Circuit with Integrated Bowman Header Tank Heat Exchanger |
| Lubricating Oil Capacity / Oil Pan Capacity | 8.5 Liters |
| Exhaust Diameter / Exhaust System Type | 63 mm / Cast Iron Wet Marine Mixing Exhaust Elbow |
| Flywheel & Flywheel Housing Size | SAE 3 Flywheel Housing Adaptability |
| Dry Weight without Marine Gear | 395 kg (870 lbs) |
| Dimensions L x W x H | 930 mm x 610 mm x 745 mm |
| Emission Certifications & Duty Rating | Pre-Emission Regulation Class / Continuous Heavy Cruising & Light Commercial Duty |
| Application | Heavy displacement trawler yachts, motor sailors, commercial line-handling workboats, and steel river barges (Typical hull lengths 34-44 feet, suited for traditional heavy-duty shaft propulsion). |
