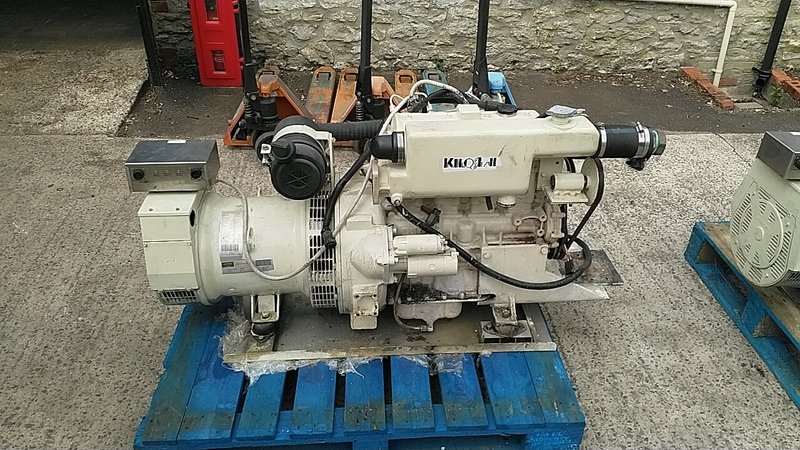

Used Mitsubishi Kilo-Pak 20kW Single Phase Marine Generator Set
Description
Used Mitsubishi Kilo-Pak 20KW Single Phase Marine Generator Set With Perkins 4.182 4 Cylinder Naturally Aspirated Engine. Currently set at 1800rpm / 60hz US specification but could be reduced to 1500rpm / 50hz for European specification. We have a matching pair of these units recently removed from a super yacht to be replaced with larger units. They were fitted new in 1998 and fully rebuilt in Holland in 2013 having only run 1500hrs since. One unit is fitted with a bracket for a PTO which originally ran a hydraulic thruster unit, the other is not.
They are keel cooled configuration but with the addition of a belt driven seawater pump, a tubestack for the bowman manifolds and an exhaust mixer elbow, they could easily be converted to heat exchanger cooling and indeed were offered in that configuration as an option when new. They were in full working order when removed and are offered as running takeouts as pictured.
Manufacturer: Mitsubishi
Model: Kilo-Pak 20KW Single Phase Marine Generator Set
Year built: 1998
No. of cylinders: 4
Cylinder capacity: 3.0
Starter: Electric start
Cooling type: Fresh water
Power: 26
Motor: 20
Fuel: Diesel
Used Mitsubishi Kilo-Pak 20kW Single Phase Marine Generator Set Specs
| Brand | Kilo-Pak (Mitsubishi Base Engine) |
| Full Model Code | KP-20KW-1P (Engine Platform: Mitsubishi S4S) |
| Country of Origin | USA |
| Engine Family/Series | Kilo-Pak Premium Marine Generator Line |
| Engine Type & Configuration | Inline 4-Cylinder, 4-Stroke, Heavy-Duty Diesel Generator Core |
| Aspiration & Induction System | Naturally Aspirated, Swirl Chamber Indirect Combustion Setup |
| Displacement | 3.331 Liters / 3331 cc |
| Bore x Stroke | 94.0 mm x 120.0 mm |
| Cylinder Count & Valves per Cylinder | 4-Cylinder, 2-Valves per Cylinder (8 Valves Total) |
| Compression Ratio | 22.0:1 |
| Rated Power / Horsepower | 20 kW Prime Electrical Output (Approx. 32 HP mechanical load) @ 1800 RPM |
| Maximum Engine Speed / Rated RPM | 1800 RPM (Fixed Isochronous Speed for 60Hz AC) |
| Maximum Torque | 185 Nm @ 1800 RPM (Governed Output Level) |
| Fuel System & Injection Type] | Mechanical In-line Injection Pump with Automatic Air Venting |
| Governor Type | Electronic Isochronous Governor (For tight +/- 0.25% frequency control) |
| Electrical System Voltage & Alternator Output | 12V Engine Electrics / 20kW 120/240V Single Phase Brushless Alternator End |
| Starting System | 12V Electric Starter Motor with Internal Glow Plugs |
| Cooling System Type | Freshwater Cooled via Cupro-Nickel Marine Heat Exchanger / Seawater Pump Driven |
| Lubricating Oil Capacity / Oil Pan Capacity | 10.0 Liters |
| Exhaust Diameter / Exhaust System Type | 50 mm / Dry Flanged or Wet Water-Separator Marine Exhaust End |
| Flywheel & Flywheel Housing Size | SAE 4 Engine Housing mating to Single-Bearing Generator Alternator End |
| Dry Weight without Marine Gear | 485 kg (1069 lbs) (Complete Genset Package Package Weight) |
| Dimensions L x W x H | 1150 mm x 620 mm x 740 mm (Open Skid Configuration) |
| Emission Certifications & Duty Rating | EPA Tier 3 Compliant / Continuous Prime Marine Auxiliary Power Rating |
| Application | Auxiliary electrical power generation for mid-size motor yachts, mega-yachts, commercial supply vessels, and commercial fish tugs (Provides continuous 120V/240V AC shipboard power). |
