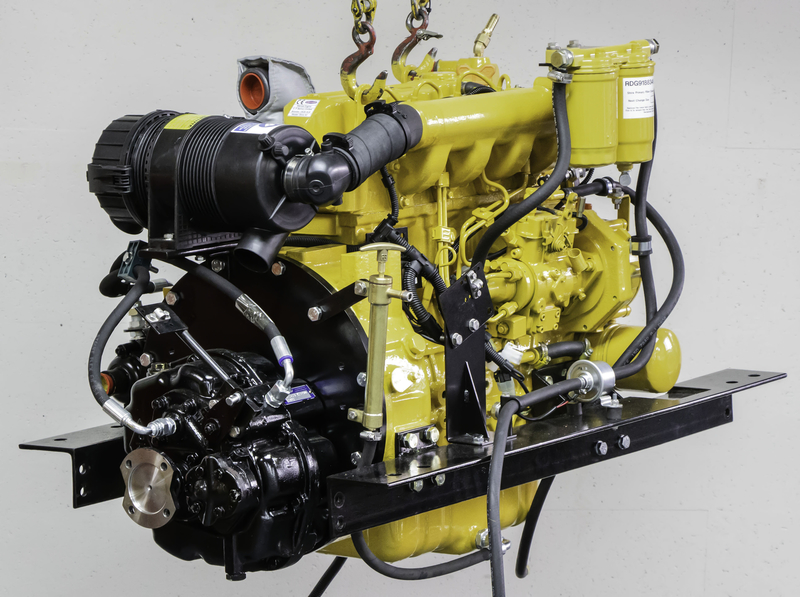

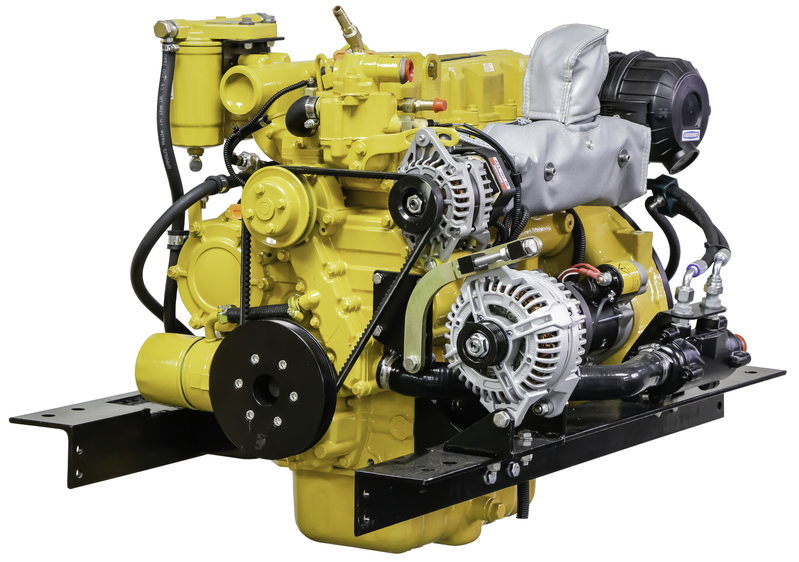

Shire 43 Midsize Keel-Cooled Canal Marine Engine
$4,611.00
In Stock
Shire 43 Midsize Specs
| Manufacturer / Brand | E.P. Barrus (Shire Marine) |
| Model Designation | Shire 43 Midsize |
| Engine Type | 4-Stroke Heavy-Duty Canal Marine Diesel |
| Cylinder Configuration | Inline-4 |
| Total Displacement | 2.2 Liters (134 cu in) |
| Bore x Stroke | 88.0 x 90.0 mm (3.46 x 3.54 in) |
| Aspiration & Charge Air | Naturally Aspirated with Air Induction Silencer |
| Cooling System Architecture | Keel-Cooled Closed Skin-Tank System with Header Tank and Calorifier Take-Offs |
| Continuous Power Rating (P1) | 38 BHP (28 kW) @ 2,600 RPM |
| Maximum / Intermittent Power (P3/P4) | 43 BHP (32 kW) @ 2,800 RPM |
| Fuel Injection Platform | Mechanical Direct Fuel Injection with In-Line Multi-Plunger Pump and Governor |
| Cylinder Head Metallurgy | Monobloc Cast Iron Cylinder Block with Cast Iron Overhead Valve (OHV) Cylinder Head |
| Cylinder Liners | Cast Iron Engine Block with Integrated Parent Bores |
| Flywheel Housing & Flywheel | Dedicated Marine Bellhousing with Heavy Torsional Marine Damper Plate |
| Electrical System & Ground | 12V Negative Ground Marine Electrical System |
| Starter & Alternator Output | 12V 2.0 kW Electric Starter / Dual Alternators (12V 50A Starter + 12V 175A Domestic) |
| Lube Oil Sump Capacity | 7.4 Liters (1.95 US gal) |
| Engine Coolant Capacity | 8.0 Liters (2.11 US gal) |
| Dry Weight (excl. gearbox) | 215 kg (474 lbs) |
| Overall Dimensions (L x W x H) | 795 x 520 x 645 mm (31.3 x 20.5 x 25.4 in) |
| Emissions Certification | RCD 2 (Directive 2013/53/EU) / EPA Tier 4 / EU Stage V Non-Road |
| Fuel Compatibility | Ultra-Low Sulfur Diesel (ULSD No. 2), Automotive Diesel (EN 590), B7 Biodiesel |
| Transmission / Outdrive Compatibility | Bare Engine Bobtail Keel-Cooled - Compatible with PRM (PRM 150 / PRM 260) and ZF (ZF 25M) Marine Transmissions |
| Factory Warranty Period | E.P. Barrus Shire 3-Year Limited Inland Leisure / 2-Year Commercial Warranty |
| Application Research | Full-length narrowboats (57-65 ft), midsize widebeam craft (10-11 ft beam), continuous cruising houseboats, and river cruisers operating in flowing waterways. |
