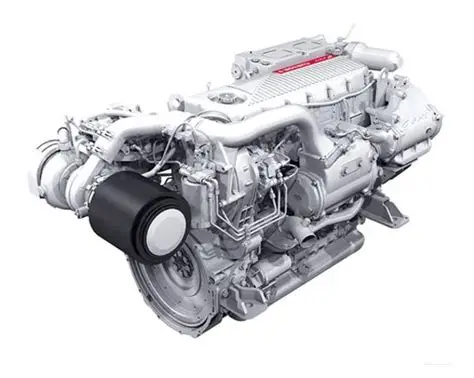

FPT Cursor 9 C87-620 Flagship Bobtail Marine Propulsion Engine
$34,125.00
In Stock
FPT Cursor 9 C87-620 Specs
| Manufacturer / Brand | FPT Industrial (Iveco Group) |
| Model Designation | Cursor 9 (C87 620) |
| Engine Type | 4-Stroke High-Performance Commercial Marine Diesel |
| Cylinder Configuration | Inline-6 |
| Total Displacement | 8.7 Liters (531 cu in) |
| Bore x Stroke | 117.0 x 135.0 mm (4.61 x 5.31 in) |
| Aspiration & Charge Air | Turbocharged with Wastegate and Seawater Charge Air Aftercooler |
| Cooling System Architecture | Tubular Heat Exchanger Closed Circuit with Raw Seawater Impeller Pump |
| Continuous Power Rating (P1) | 380 BHP (279 kW) @ 2,000 RPM |
| Maximum / Intermittent Power (P3/P4) | 620 BHP (456 kW) @ 2,530 RPM |
| Fuel Injection Platform | High-Pressure Common Rail (HPCR) Electronic Direct Injection |
| Cylinder Head Metallurgy | Monobloc 24-Valve Cast Iron Cylinder Head with Overhead Camshaft |
| Cylinder Liners | Replaceable Wet Sleeve Cast Iron Liners |
| Flywheel Housing & Flywheel | SAE 1 Housing with SAE 14 Flywheel |
| Electrical System & Ground | 24V Isolated Ground Marine Electrical System |
| Starter & Alternator Output | 24V 4.5 kW Electric Starter / 24V 90A Marine Alternator |
| Lube Oil Sump Capacity | 28.0 Liters (7.40 US gal), Marine Wet Sump |
| Engine Coolant Capacity | 30.0 Liters (7.93 US gal) |
| Dry Weight (excl. gearbox) | 940 kg (2,072 lbs) |
| Overall Dimensions (L x W x H) | 1,288 x 823 x 961 mm (50.7 x 32.4 x 37.8 in) |
| Emissions Certification | IMO Tier II / EPA Tier 3 Commercial / RCD 2 |
| Fuel Compatibility | Ultra-Low Sulfur Diesel (ULSD No. 2), Marine Gas Oil (MGO DMA/DMB), B20 Biodiesel |
| Transmission / Outdrive Compatibility | Bare Engine Bobtail - Compatible with ZF (ZF 286A / ZF 305A / ZF 325A) and Twin Disc (MGX-5075A) Marine Transmissions |
| Factory Warranty Period | FPT Industrial 2-Year or 3,000-Hour Commercial Marine Warranty |
| Application Research | Fast interceptor patrol craft, high-speed sea rescue launches, government customs chase boats, sportfishing express cruisers, and high-speed pilot vessels. |
