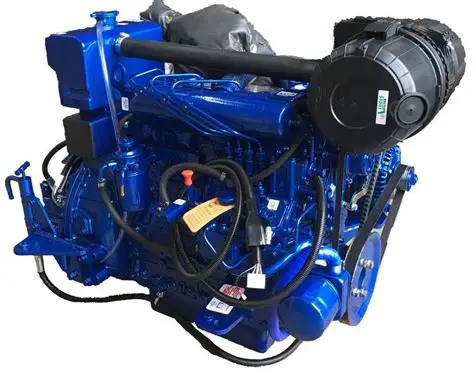

Canaline 70T Turbocharged Keel-Cooled Widebeam Diesel Engine
$6,500.00
In Stock
Canaline 70T Specs
| Manufacturer / Brand | Canaline Marine |
| Model Designation | Canaline 70T |
| Engine Type | 4-Stroke Turbocharged Inland Marine Diesel |
| Cylinder Configuration | Inline-4 Cylinder |
| Total Displacement | 2.43 Liters (148.5 cu in) |
| Bore x Stroke | 87 x 102.4 mm (3.43 x 4.03 in) |
| Aspiration & Charge Air | Turbocharged Marine Induction with Wastegate Turbo |
| Cooling System Architecture | Skin Tank / Keel-Cooled Circuit with Dual Calorifier Take-offs |
| Continuous Power Rating (P1) | 70 BHP (52.2 kW) @ 2,600 RPM |
| Maximum / Intermittent Power (P3/P4) | 70 BHP (52.2 kW) @ 2,600 RPM (Continuous Inland Rating) |
| Fuel Injection Platform | Common Rail Direct Injection (CRDI) with ECU Engine Management |
| Cylinder Head Metallurgy | Cast Iron Monoblock with 4 Valves per Cylinder |
| Cylinder Liners | Parent Bore High-Strength Cast Iron Block |
| Flywheel Housing & Flywheel | SAE 4 / SAE 5 Housing with Marine Damper Drive Plate |
| Electrical System & Ground | 12V Isolated Ground System with Twin Alternator Setup |
| Starter & Alternator Output | 12V 2.2 kW Electric Starter / Twin 50A Engine & 200A High-Output Domestic Alternators |
| Lube Oil Sump Capacity | 8.5 Liters (2.25 US gal) with Brass Sump Evacuation Pump |
| Engine Coolant Capacity | 10.5 Liters (2.77 US gal) |
| Dry Weight (excl. gearbox) | 275 kg (606 lbs) |
| Overall Dimensions (L x W x H) | 890 x 575 x 695 mm (35.0 x 22.6 x 27.4 in) |
| Emissions Certification | EU Stage V, RCD II Compliant |
| Fuel Compatibility | Ultra-Low Sulfur Diesel (ULSD No. 2), Gas Oil Class A2, HVO 100 |
| Transmission / Outdrive Compatibility | PRM 280 D2 Hydraulic Reverse-Reduction Marine Gearbox |
| Factory Warranty Period | 3-Year / 2,500-Hour Limited Inland Marine Warranty |
| Application Research | Large widebeam canal boats (up to 70ft x 12ft), Dutch barges, river tugs, and high-electrical-demand liveaboard houseboats |
