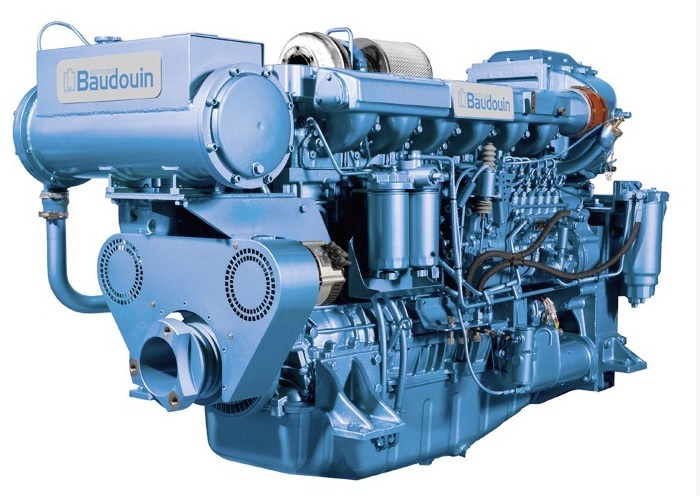

Baudouin 6W126M Commercial Inboard Marine Diesel Engine
$18,366.00
In Stock
Baudouin 6W126M Specs
| Manufacturer / Brand | Moteurs Baudouin |
| Model Designation | 6W126M |
| Engine Type | 4-Stroke Heavy-Duty Commercial Marine Diesel |
| Cylinder Configuration | Inline-6 Cylinder |
| Total Displacement | 11.6 Liters (708 cu in) |
| Bore x Stroke | 126 x 155 mm (4.96 x 6.10 in) |
| Aspiration & Charge Air | Turbocharged with Water-Cooled Charge Air Intercooler |
| Cooling System Architecture | Cupronickel Tube Heat Exchanger (Keel Cooling or Skin Tank Available) |
| Continuous Power Rating (P1) | 400 BHP (294 kW) @ 1,800 RPM |
| Maximum / Intermittent Power (P3/P4) | 450 BHP (331 kW) @ 2,100 RPM |
| Fuel Injection Platform | Mechanical Inline Fuel Injection Pump with Electronic Governor |
| Cylinder Head Metallurgy | Individual 4-Valve High-Strength Cast Iron Cylinder Heads |
| Cylinder Liners | Replaceable Wet Sleeve Cast Iron Liners |
| Flywheel Housing & Flywheel | SAE 1 Flywheel Housing with SAE 14 Flywheel |
| Electrical System & Ground | 24V Isolated Ground Marine Electrical System |
| Starter & Alternator Output | 24V 6.0 kW Electric Starter / 24V 70A Marine Alternator |
| Lube Oil Sump Capacity | 30.0 Liters (7.92 US gal) Commercial Sump |
| Engine Coolant Capacity | 48.0 Liters (12.7 US gal) |
| Dry Weight (excl. gearbox) | 1,200 kg (2,646 lbs) |
| Overall Dimensions (L x W x H) | 1,885 x 970 x 1,180 mm (74.2 x 38.2 x 46.5 in) |
| Emissions Certification | IMO Tier II, CCNR II Compliant |
| Fuel Compatibility | Ultra-Low Sulfur Diesel (ULSD No. 2), Marine Gas Oil (MGO DMA/DMB) |
| Transmission / Outdrive Compatibility | Engine Package - Compatible with ZF, Dong-I, and Twin Disc Transmissions |
| Factory Warranty Period | 2-Year Commercial Limited Marine Warranty |
| Application Research | Commercial fishing vessels, offshore utility boats, cargo transport vessels, workboats, and heavy-duty propulsion |
