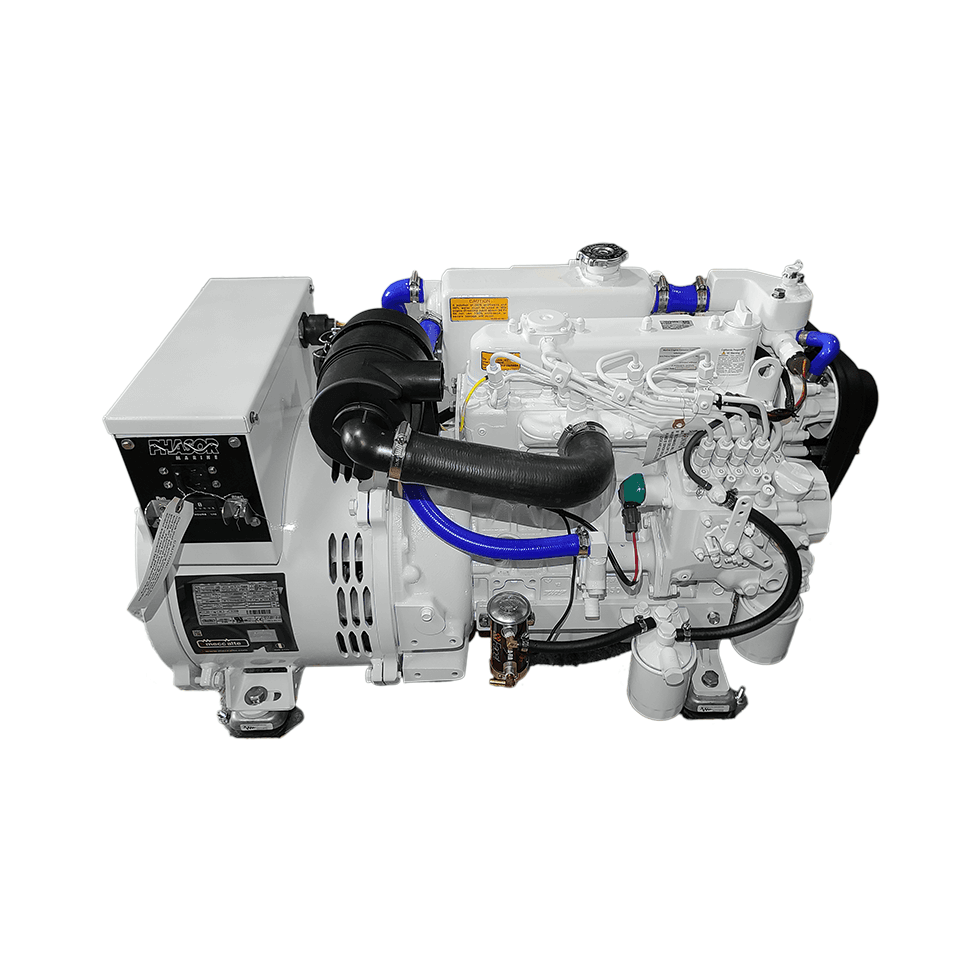

Phasor JD4-65.0kW Marine Diesel Generator – 1800 RPM

Description

During long offshore commercial trawler voyages, the Phasor JD4-65.0kW Marine Diesel Generator delivers 65kW continuous three-phase or single-phase electrical power for processing decks and refrigerated cargo holds. Driven by a heavy-duty John Deere 4045 four-cylinder engine at 1800 RPM, it feeds commercial distribution switchboards. It sustains heavy walk-in compressor banks through municipal blackouts without phase imbalance or motor thermal trip-outs.

A rigid welded steel mounting skid supports the John Deere industrial diesel block and brushless marine alternator, isolated by heavy shear-type rubber mounts. The 4.5L John Deere engine incorporates wet-sleeve cylinder liners, full-pressure lubrication, and a cast-iron cylinder head for continuous commercial operation. Dry weight totals 2150 lbs across overall dimensions of 64 inches long by 30 inches wide by 40 inches high. This Phasor commercial marine generator features a cupronickel tube-and-shell heat exchanger that resists saltwater corrosion.

Key Features of Phasor JD4-65.0kW

Commercial vessel engineers buy Phasor JD4-65.0kW commercial power equipment to provide relentless prime electrical power for hydraulic winches, blast freezers, and shipboard lighting. Low eighteen-hundred RPM operation delivers high continuous torque with minimal mechanical wear.

• 65kW continuous rating feeds commercial reach-in chillers and prep tables without voltage drop.
• John Deere 4045 diesel engine delivers continuous high mechanical torque during intensive commercial workloads.
• 1800 RPM operating speed cuts engine friction and extends continuous operational runtimes.
• Cupronickel heat exchanger protects cooling circuits from destructive saltwater corrosion.
• Brushless revolving-field alternator delivers steady voltage excitation across sudden step loads.
• Remote start-stop instrument panel displays oil pressure, water temperature, line voltage, and frequency.
• Dual-stage fuel filtration system protects injection nozzles on this Phasor JD4-65.0kW power plant from contaminated fuel.

Heavy Commercial Alternator Load Performance

Built with marine-grade Class H insulation and copper windings, this Phasor JD4-65.0kW power plant alternator maintains voltage within 1.5 percent under fluctuating inductive loads. Operating sound remains at 72 dB(A) at 23 feet inside commercial machinery rooms. The heavy John Deere engine rotational mass dampens transient speed drop when massive blast freezer compressors cycle on, preventing electrical brownouts across navigation gear.

Vessel Machinery Room Foundation Rules

Bolt the heavy steel base frame straight to vessel hull stringers using high-tensile marine fasteners, ensuring adequate clearance around the oil drain and heat exchanger for servicing. Connect raw seawater intake through a high-volume sea chest and bronze strainer. Route high-current electrical cables into the vessel main distribution switchboard through armored marine cable.

Industrial Diesel Servicing Safety Controls

Electric key ignition and automated engine safety shutdowns protect the powertrain against loss of cooling water or oil pressure. This heavy commercial generator is NOT engineered for unventilated box compartments without active mechanical blowers, portable trailer towing, or gasoline fuel infrastructure.

• Inspect the seawater pump mechanical seal and clean the sea strainer every 50 runtime hours.
• Drain engine crankcase oil and replace the spin-on full-flow filter every 100 runtime hours.
• Check cupronickel heat exchanger zinc anodes and replace depleted units every 250 runtime hours.

Marine Packaging Factory Item Manifest

This Phasor commercial marine generator carries a 5-Year limited commercial warranty covering the John Deere diesel engine and marine alternator. The heavy shipping skid holds the generator set, remote gauge panel, flexible fuel lines, rubber isolation mounts, and certified factory load test sheets.
