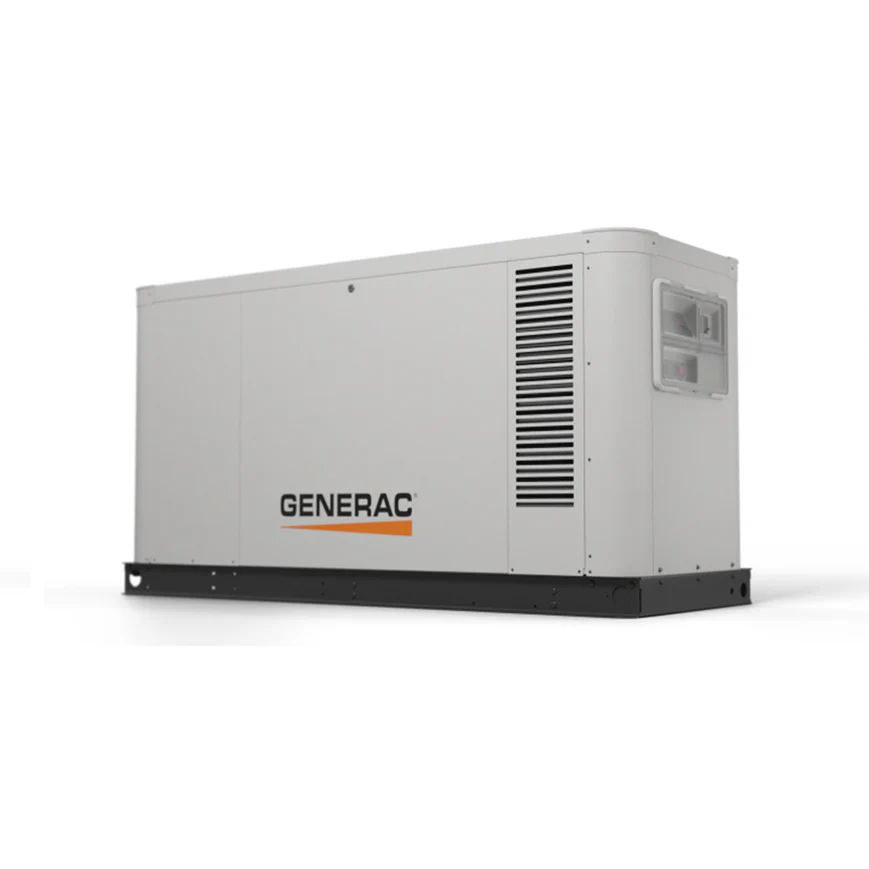

Generac XG04045ANAC 45kW Standby Generator

Description

Eliminate commercial blackout disruption using the Generac XG04045ANAC Commercial Standby Generator, engineered for heavy commercial facilities and large institutional kitchens. This 45 kW stationary generator runs on natural gas or liquid propane, delivering 120V and 240V single-phase electrical service to protect walk-in refrigeration banks, exhaust ventilation blowers, and computerized management systems during major grid failures.

An all-aluminum acoustic enclosure houses the water-cooled 4.5L four-cylinder industrial engine, providing exceptional corrosion resistance in coastal environments. The revolving-field alternator incorporates 100 percent copper windings with Class H insulation to prevent stator degradation under heavy continuous load. Weighing 1930 lbs dry, the stationary unit mounts to concrete pads with base dimensions measuring 77 inches long by 34 inches wide by 45 inches high.

Key Features of Generac XG04045ANAC

Facility engineers who buy Generac XG04045ANAC commercial standby generator equipment secure high-output commercial power equipment for critical operational resilience. The Evolution digital controller integrates with automatic transfer switches to restore full building power within ten seconds of utility interruptions.

• 45 kW continuous prime electrical capacity energizes entire commercial supermarket refrigeration lines and kitchen circuits.
• Industrial 4.5L liquid-cooled engine operating at 1800 RPM extends service life and reduces mechanical wear.
• Evolution digital controller features an illuminated LCD display to monitor utility line status and fault logs.
• Corrosion-proof aluminum enclosure features sound-attenuating baffles that withstand 150 MPH hurricane-force winds.
• XG04045ANAC natural gas fuel system eliminates the chore of storing hazardous liquid gasoline on business property.
• Class H stator insulation ensures alternator longevity during high-temperature summer emergency runs.
• Isochronous electronic governor maintains exact 60 Hz electrical frequency under heavy step-load compressor starts.
• Automatic safety shutdowns prevent engine damage upon low oil pressure, high coolant temperature, or engine overspeed.

Transient Load Frequency Stability Metrics

Operating inside its sound enclosure, this commercial standby unit generates 65 dB(A) at 23 feet, complying with municipal property boundary noise codes. The isochronous electronic governor maintains frequency within 0.25 percent of 60 Hz baseline standards. Total harmonic distortion remains under 5 percent, absorbing sudden inductive startup surges from five-ton walk-in freezer compressors without line voltage dips, while natural gas consumption measures 615 cubic feet per hour at half load.

Concrete Pad Clearances Switchgear Installation

Secure the generator frame to an engineered structural concrete foundation at least 5 feet from commercial doors, windows, and exterior walls. Exhaust discharge directs hot combustion gases straight upward into open sky. The electrical output terminals connect to automatic transfer switches via an unbonded floating neutral configuration that links to the primary building electrical grounding electrode.

Stationary Enclosure Scheduled Maintenance Protocol

Dual side-access doors feature keyed latches to allow maintenance access for fluid checks and filter replacements. This stationary generator is not engineered for mobile food truck trailers, indoor boiler rooms lacking forced radiator exhaust ducting, or three-phase 480V industrial circuits.

• Inspect coolant expansion reservoir levels and engine oil dipsticks before each shift.
• Change engine lubricating oil, spin-on oil filters, and fuel filters every 200 runtime hours.
• Check radiator core fins and test battery terminal voltage every 12 months.

Commercial Warranty Freight Shipment Manifest

Generac protects your investment with a 5-Year commercial limited warranty covering the 4.5L engine, copper alternator assembly, and Evolution controller. The heavy shipping pallet delivers the Generac XG04045ANAC generator, factory-assembled aluminum weather enclosure, flexible fuel connection line, owner manual, and factory startup inspection documentation.
