Best Seller

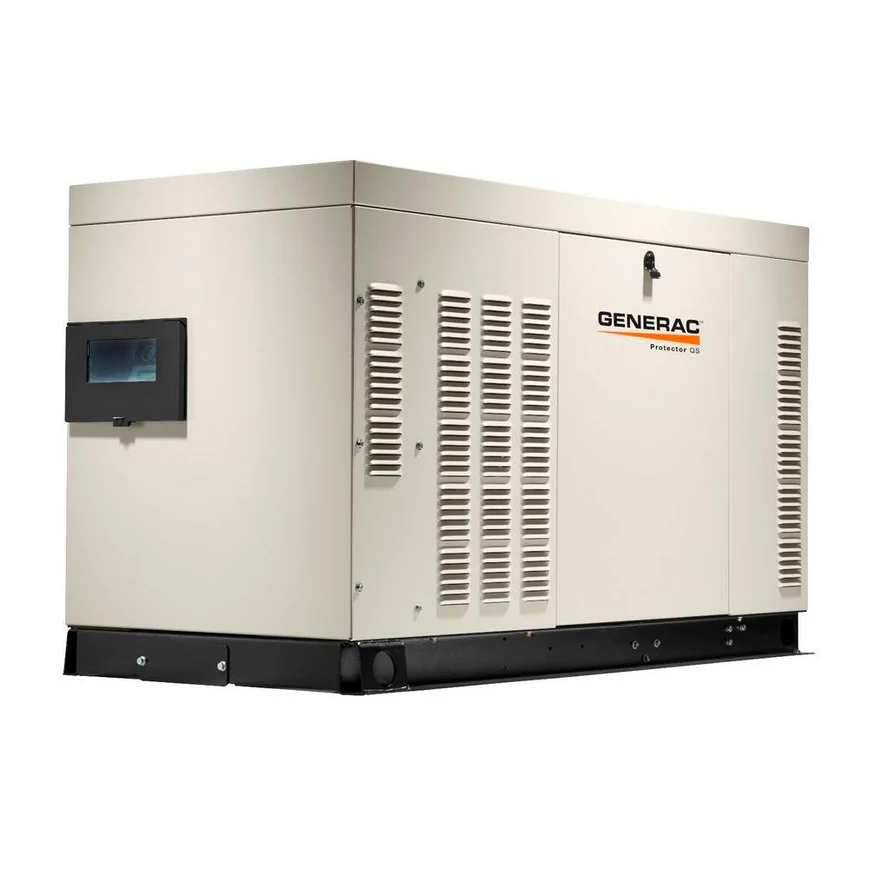

Generac RG03015GNAX 30kW Standby Generator
$8,385.00
In Stock
Generac Protector 30kW 120/208V 3-Phase Standby Generator Specs
| Brand | Generac Power Systems |
| Full Model Code | Protector Series RG030 (Model RG03024KGAA or equivalent) |
| Generator Type | Stationary Liquid-Cooled Three-Phase Automatic Standby Generator |
| Fuel Type | Multi-Fuel Vapor System (Liquid Propane LPG / Natural Gas NG Engine Configured) |
| Running Watts (Continuous) | Liquid Propane: 30,000 Watts | Natural Gas: 30,000 Watts |
| AC Voltage & Frequency | 120V / 208V AC @ 60 Hz |
| Amperage Output (Continuous) | 104 Amps @ 120V/208V 3-Phase |
| Phase Configuration | 3-Phase (0.8 Power Factor Industrial Alternator Core) |
| Engine Type & Displacement | Generac 4-Cylinder Inline Overhead Valve Engine (2.4 Liter Platform) |
| Engine Operational Speed | Static 1,800 RPM (Low Speed, High Longevity Structural Baseline) |
| Cooling System Infrastructure | Liquid Cooled Sealed Automotive Radiator Loop with Multi-Blade Engine Fan |
| Engine Starting System | 12V DC Electric Starter Array with Automatic Utility Monitoring Control |
| Voltage Regulation | Automatic Digital Voltage Regulation Matrix (±1.0% System Tolerance) |
| Fuel Consumption (50% Load) | Liquid Propane: 3.58 GPH (13.6 L/hr) | Natural Gas: 337 CFH (9.54 m³/hr) |
| Fuel Consumption (100% Load) | Liquid Propane: 5.48 GPH (20.7 L/hr) | Natural Gas: 512 CFH (14.5 m³/hr) |
| System Controller Module | Evolution™ Liquid-Cooled Commercial Digital LCD Controller Matrix |
| Wireless Interface Ecosystem | Mobile Link™ Integrated Wi-Fi Telemetry Core Panel |
| Noise Level (dBA) | Normal Operation: 70 dBA | Quiet-Test Low-RPM Exercise Mode: 60 dBA @ 7 meters |
| Enclosure Structural Build | All-Weather Corrosion-Resistant Aluminum Sound-Attenuated Enclosure |
| Net Weight | 393 kg (866 lbs) to 411 kg (906 lbs) Dry Weight |
| Dimensions L x W x H | 1570 mm x 754 mm x 973 mm (61.8" x 29.7" x 38.3") |
| Certifications | UL 2200 Listed, EPA Stationary Emergency, CSA, NFPA 110 Capable |
| Ideal Application | Small commercial facilities, gas stations, retail blocks, or offices operating balanced three-phase equipment networks like elevator hoist motors or heavy-duty server clusters. |
