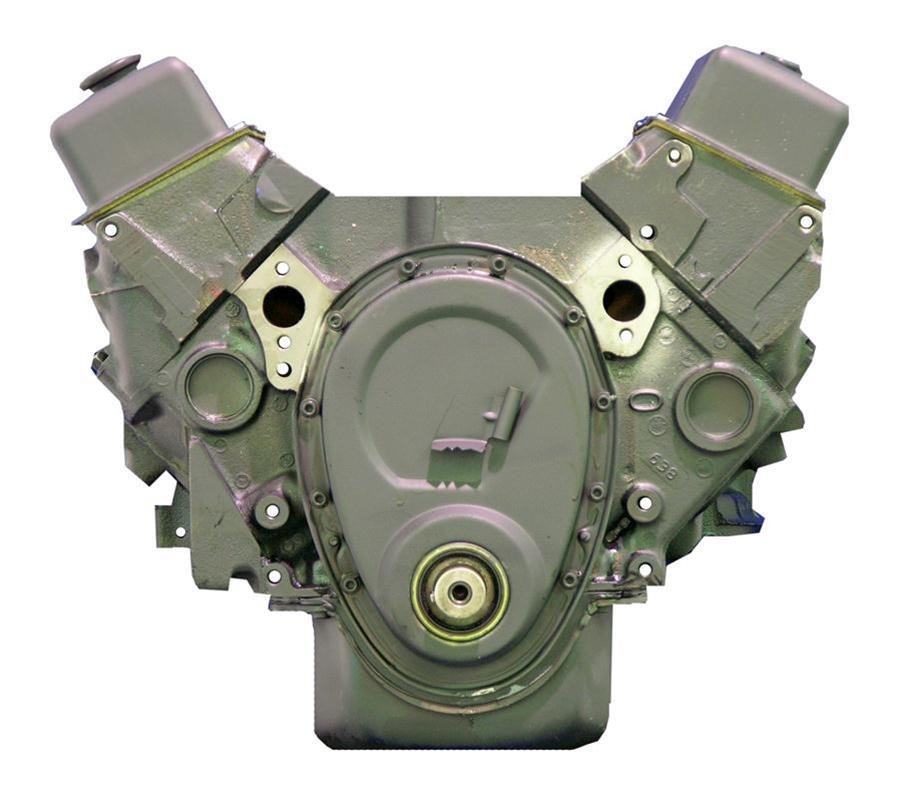

VEGE Remanufactured VC95 5.0L 305ci Multi Purpose Long Block Engine

Description

Factory remanufacturing standards establish the VEGE VC95 Multi Purpose Long Block Engine as your primary commercial long block repower choice. This 5.0L 305ci 8-Cylinder unit produces 215HP for commercial step vans. Technicians must check oil filter adapter pad thread pitch because early block castings use imperial threads while later models require metric adapter fittings.

Solid ASTM A48 Class 30 gray iron forms the high strength engine block casting. Every VEGE engine core incorporates a nodular iron crankshaft and forged steel connecting rods to resist fatigue. Austenitic stainless steel valves seat against flame hardened iron to survive severe duty cycles. The 12V electrical starter draws 170A during cold turnover. Dry engine weight measures 460 lbs within dimensions of 28in length, 26in width, 27in height, with 5.0 quarts oil capacity.

Key Features of VEGE VC95

Commercial operators buy VEGE VC95 Multi Purpose Long Block Engine assemblies to finish a dependable industrial engine rebuild on schedule. Robotic resurfacing centers each cylinder head deck to guarantee equal compression ratios across all eight combustion chambers.

• A versatile 5.0L 305ci displacement platform matches numerous commercial truck and utility chassis.
• Plateau honed cylinder walls allow rapid compression ring seating during initial startup runs.
• Induction hardened valve seats eliminate valve recession when using dry alternative fleet fuels.
• The VC95 commercial core utilizes a high torque camshaft to haul heavy cargo up steep grades.
• Copper lead connecting rod bearings provide high load capacity and anti-wear protection.
• High strength timing chain sets stop camshaft backlash and prevent spark timing float.
• Graphite coated piston skirts prevent cold start scuffing inside tight cylinder tolerances.

Dynamometer Verification Operational Thresholds

Dyno certification verifies each VC95 long block engine produces 215HP and 285 ft-lbs of shaft torque at 3,800 RPM. The engine maintains 2,200 RPM continuous test load while oil gallery pressure holds between 45 PSI and 58 PSI. Engine oil temperature measures 192°F while exhaust gas registers 1,200°F at full throttle. Piston compression tests prove 175 PSI across all eight cylinders within 5% variation. Crankshaft centerline runout stays below 0.0003in TIR to prevent bearing fatigue.

Field Installation Maintenance Protocols

Mechanical throttle control linkage must exhibit 5 lbs return force to ensure instant return to idle stop. Do not install this commercial replacement engine into high RPM racing skiffs or industrial machines without cooling airflow shrouds. Field mechanics must follow structured maintenance intervals.

• Flush break-in engine oil and swap the spin-on filter after 500 miles or 30 operating hours.
• Verify hydraulic lifters sit on base camshaft circles to establish zero lash plus one-half turn down.
• Check base ignition timing settings using a timing light to set 8° BTDC at curb idle.

Crate Manifest Coverage Terms

All remanufactured units meet the VEGE assembly standard backed by a 3-Year 100,000-mile parts warranty. Your heavy duty crate contains the long block engine assembly, stamped oil pan, timing gear cover, steel valve covers, oil pump pickup screen, and the signed shop dynamometer report.
