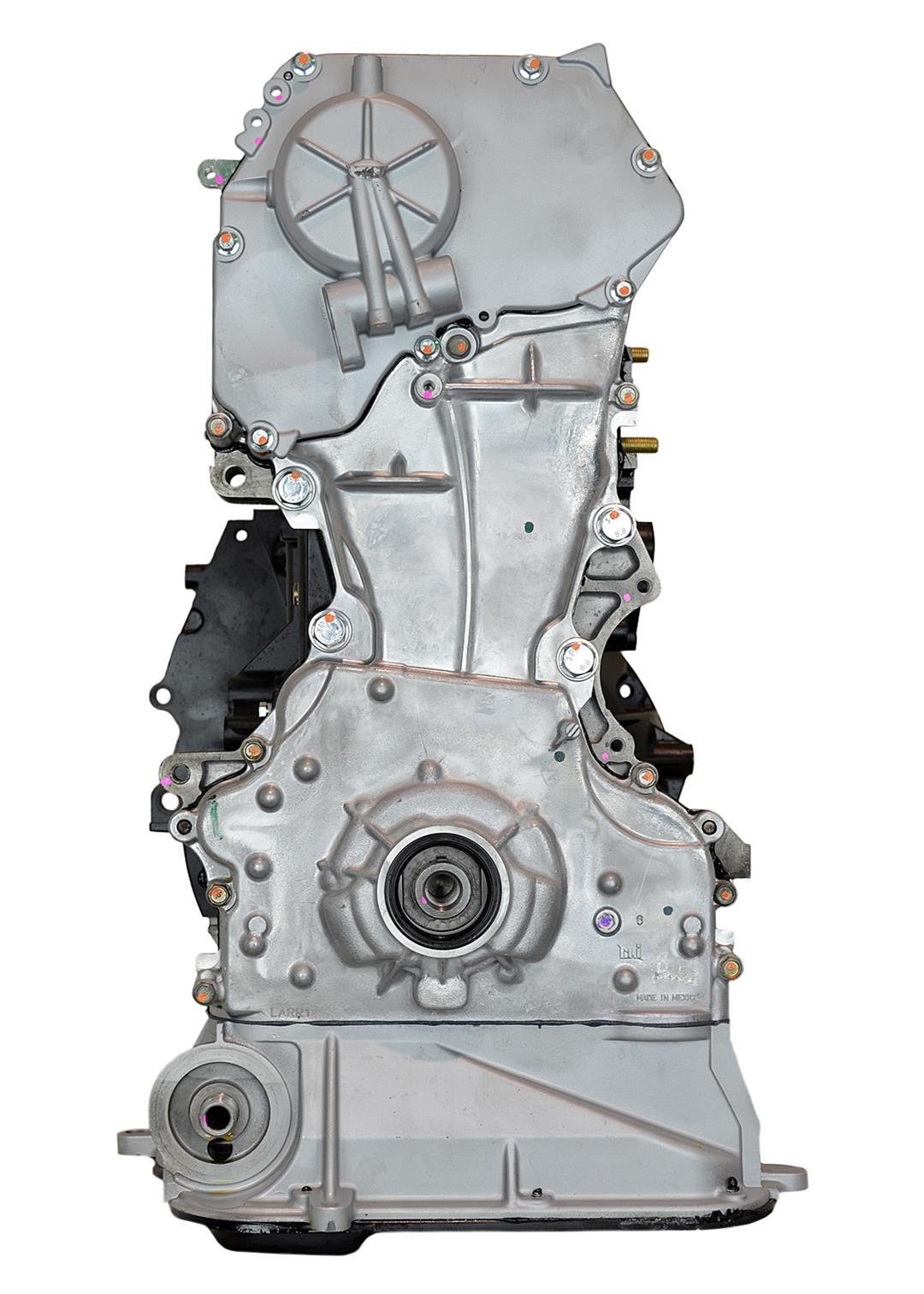

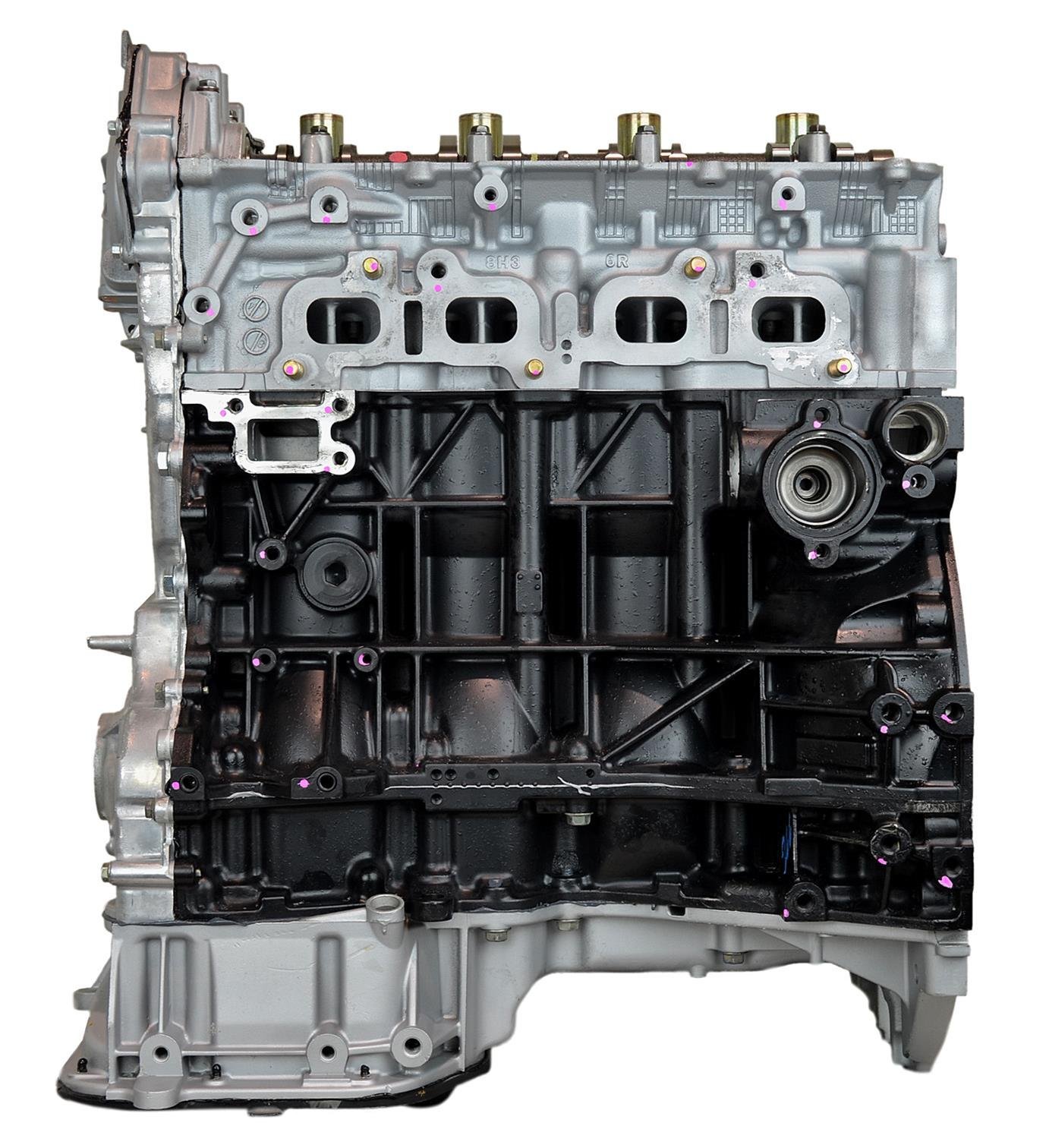

VEGE Remanufactured V347 2.5L 152ci Multi Purpose Long Block Engine

Description

Timing belt tooth strip down and cracked intake seats disable high mileage commercial light delivery vans. The VEGE Remanufactured V347 Long Block Engine eliminates chronic valvetrain failure through complete industrial engine rebuild machining. This 2.5L 152ci Inline-4 engine produces 119HP. Installers must align auxiliary balance shaft timing marks during external belt replacement steps.

Engineers utilize high density ASTM A48 Class 35 iron for the crankcase structure to control bore distortion. This VEGE engine core utilizes a balanced nodular iron crankshaft and heat treated forged steel connecting rods. Cold starter draw pulls 140A through 12V starting circuits. Bare weight registers 285 lbs with an exterior stance of 23in length, 21in width, 24in height and 4.0 quarts oil capacity.

Key Features of VEGE V347

Service centers buy VEGE V347 Long Block Engine models to keep legacy commercial fleet routes profitable. Advanced boring techniques return cylinder geometry to tighter clearances than original manufacturing specifications.

• 4-Cylinder inline configuration incorporates cross hatch plate honing for immediate ring break-in.
• 8-Valve single overhead cam cylinder heads contain hardened cobalt exhaust valve seats.
• 2.5L displacement produces 146 ft-lbs torque at low engine RPM for urban hauling.
• 0.0011in connecting rod clearance supports stable hydrodynamic film under severe load.
• Nodular iron camshaft features Parkerized surface coatings to prevent cold start wiping.
• Multi layer elastomer front crank seals stop oil leakage onto synthetic timing belts.
• V347 commercial core blocks include preassembled internal oil pumps and strainer tubes.
• Graphite coated hypereutectic pistons reduce cylinder wall friction during cold morning starts.
• Combustion chambers receive resurfacing within 0.0003in total deck plane flatness.

Dyno Test Room Operational Bounds

Automated dynamometer runs confirm 119BHP and 146 ft-lbs torque output at 5000 RPM on the V347 long block engine. Standard diagnostic ports record 50 PSI oil gallery pressure with sump lubricants held at 190°F. Cylinder compression holds 180 PSI across all four chambers with zero pressure balance divergence past 3%. Exhaust gas pyrometers measure 1140°F. Crankshaft runout registers under 0.0002in TIR across journals.

Field Service Mechanical Limitations

Internal throttle linkage arms operate against a 4 lbs return torsion spring resistance. This engine is not built for rear engine transit forklifts, marine propulsion hulls, or multi valve dual overhead cam chassis.

• Perform primary oil and filter replacement at 500 miles using non-synthetic 5W-30 oil.
• Hydraulic cam followers require zero lash maintenance over the service lifespan.
• Cylinder head bolts require standard factory torque plus ninety degree angle rotation steps.

Warranty Statement Shipping Contents

Fleet investments receive coverage via the VEGE assembly standard 3-Year 100,000-mile limited warranty program. Freight crates securely house the assembled long block engine, oil pan, front tin cover, camshaft cover, internal oil pump pickup screen, and a signed quality audit dyno sheet.
