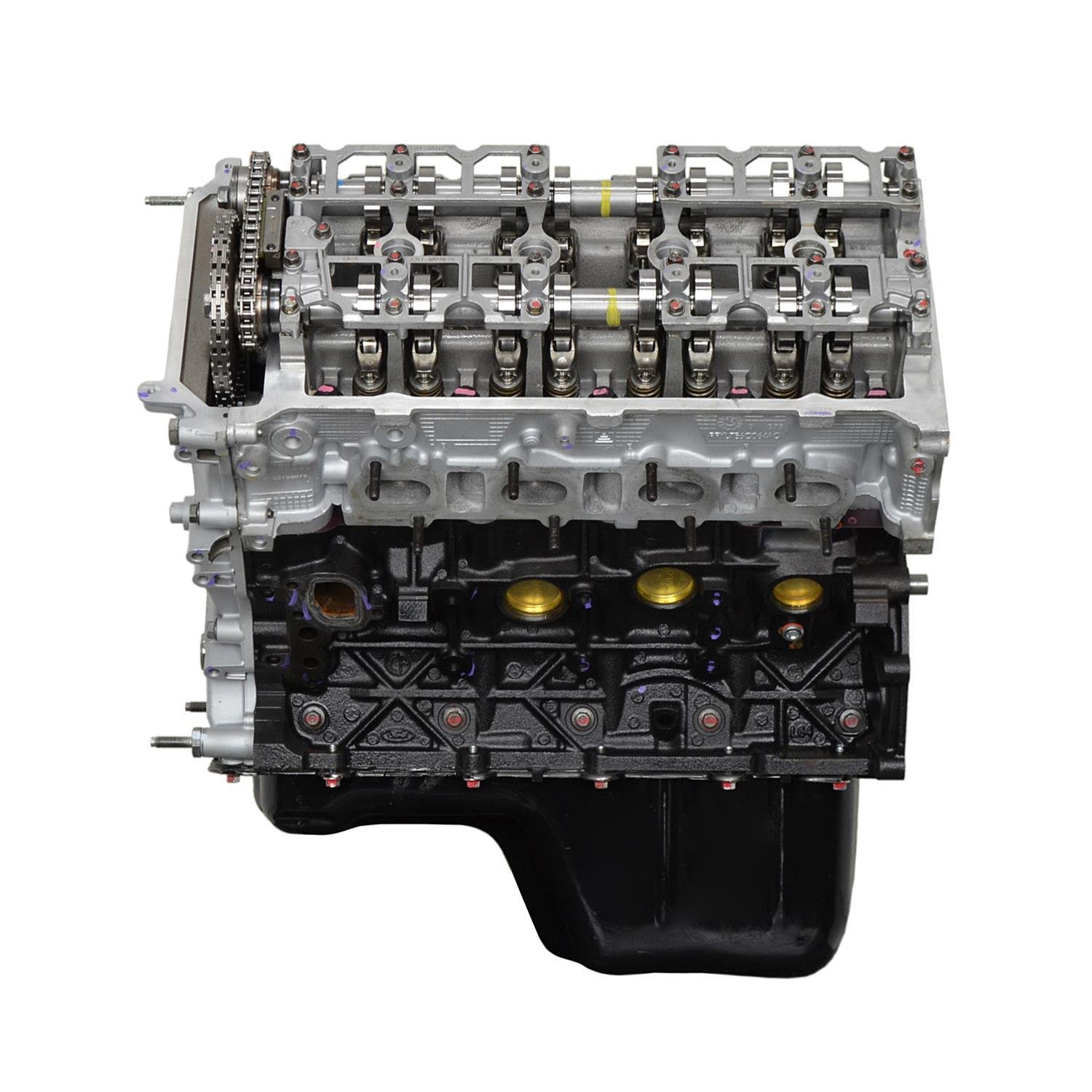

VEGE Remanufactured DFR1 5.4L 330ci Car Truck Long Block Engine

Description

Spark plug blowout thread fatigue and timing chain tensioner guide breakage plague commercial utility trucks and transport vans. The VEGE Remanufactured DFR1 Long Block Engine eliminates catastrophic spark plug expulsion through an industrial engine rebuild protocol. This 5.4L 330ci 8-Cylinder powerplant develops 260HP. Technicians must check oil pickup tube stand-off clearance from the pan floor before final pan bolting.

Deep skirt ASTM A48 Class 35 cast iron anchors the bottom end rotating assembly with cross bolted main caps. The VEGE engine core combines a micro polished nodular iron crankshaft with high tensile forged steel connecting rods and hypereutectic pistons. Cold starting requires a 12V starter drawing 175A. Total dry weight registers 525 lbs within dimensions of 29in length, 28in width, 29in height holding 6.0 quarts oil capacity.

Key Features of VEGE DFR1

Fleet maintenance supervisors buy VEGE DFR1 Long Block Engine packages to keep municipal utility trucks operating on tight schedules. Full depth steel spark plug inserts eliminate blowout risks during each commercial long block repower.

• 8-Cylinder deep skirt iron block features cross bolted main caps for extreme bottom end rigidity.
• 16-Valve cylinder heads feature full depth steel thread inserts to eliminate spark plug ejection.
• 5.4L displacement produces 350 ft-lbs torque to tow heavy commercial work trailers.
• 0.0015in rod bearing clearances ensure durable hydrodynamic oil barriers under maximum load.
• Cast iron timing tensioners replace original failure prone plastic guides to protect timing alignment.
• Stellite faced exhaust valves withstand continuous high exhaust gas temperatures during towing.
• DFR1 commercial core units include a high volume gerotor oil pump with steel wear plates.

Dynamometer Performance Test Benchmarks

Hot cell brake tests establish 260BHP and 350 ft-lbs torque at 4500 RPM on the DFR1 long block engine. Standard diagnostic sensors verify 54 PSI oil gallery pressure at 195°F oil bath operating temperature under full load. Cylinder compression gauges record 185 PSI across all eight bores with variance confined under 3% between cylinder banks. Pyrometer probes indicate 1200°F peak exhaust temperature under dyno brake loads. Precision bench dial indicators confirm crankshaft thrust runout remains below 0.0003in TIR across finished surfaces.

Field Service Installation Parameters

Mechanical throttle cable return springs demand 6 lbs manual pull effort to actuate the throttle body shaft during pedal travel. This engine is not built for three valve variable cam timing setups, passenger sports cars, or high boost racing applications.

• Flush factory break-in petroleum oil after initial 500 miles or 25 operating hours with API approved 5W-20 mineral oil.
• Hydraulic valve lash adjusters provide continuous zero lash operation without periodic shimming or manual adjustment steps.
• Cylinder head bolts require standard angle torque sequences and must not undergo reuse on any service teardown.

Warranty Protection Transport Manifest

Commercial vehicle investments receive coverage under the VEGE assembly standard 3-Year 100,000-mile warranty policy. Each heavy timber shipment crate contains the complete assembled remanufactured long block, front timing cover, stamped steel oil pan, composite valve covers, oil pump pickup tube, and signed dyno performance test sheets.
