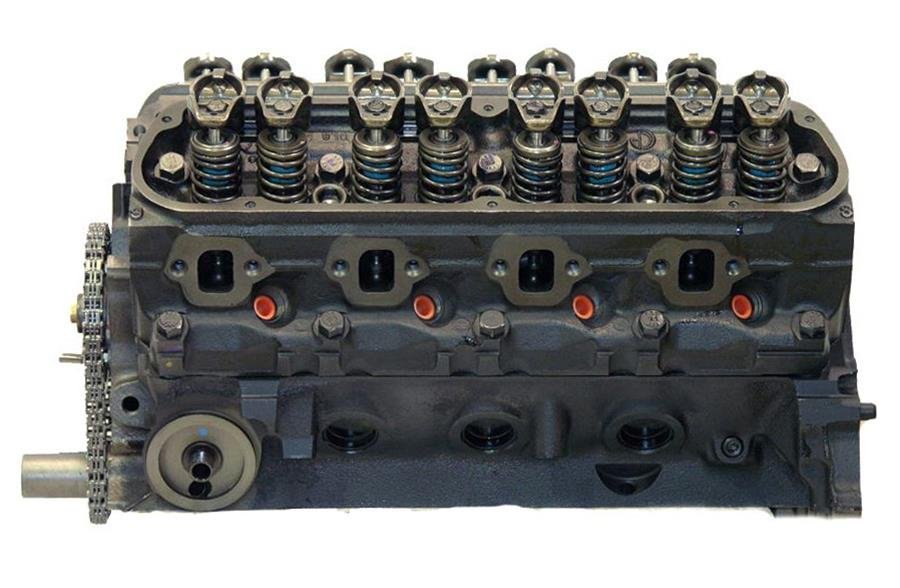

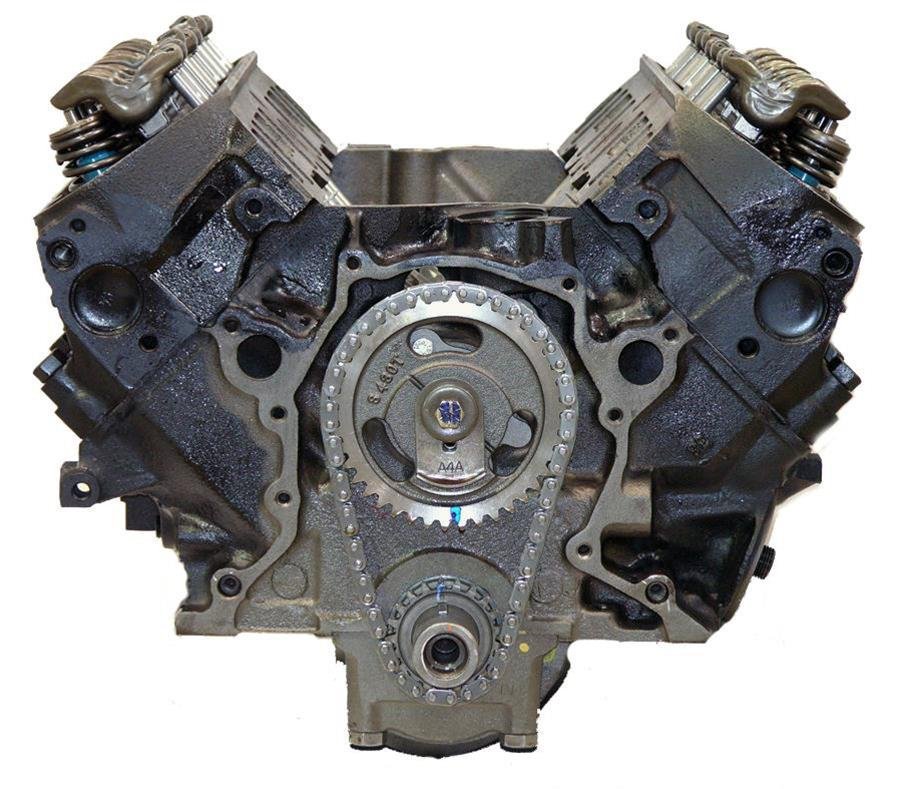

VEGE Remanufactured DFN1 5.0L 302ci Car Truck Long Block Engine

Description

Municipal transport routes demand the VEGE DFN1 Car Truck Long Block Engine. This 5.0L 302ci V8 power plant yields 200HP for dependable commercial long block repower assignments. Technicians must check oil pan dipstick tube entry orientation before dropping the motor into the frame rails because truck sumps feature alternative side ports.

High tensile ASTM Class 30 gray iron forms the cylinder block casting of this VEGE engine core. A balanced nodular iron crankshaft provides rigid resistance against heavy torsional loading under severe towing conditions. The 12V starter system draws 175A during winter cold starts. Net weight reads 460 lbs dry with physical stance measurements of 28in length by 24in width by 27in height holding 5.0 quarts oil capacity.

Key Features of VEGE DFN1

Fleet operators buy VEGE DFN1 Car Truck Long Block Engine inventory to resolve chronic powertrain failures during an industrial engine rebuild. Quality control technicians verify deck flat surfaces on precision diamond broach machines.

• Displacement measures 302ci to supply immediate low RPM grunt for commercial light trucks.
• Cast iron cylinder heads feature induction hardened exhaust valve seats to eliminate fuel seat recession.
• High grade 21-4N stainless steel valves stop face distortion under sustained highway cruising.
• Precision ground pistons include anti-friction skirts to minimize bore friction under high loads.
• The DFN1 cylinder head assembly incorporates heavy duty valve springs to prevent valvetrain float.
• Full flow oil galleries direct pressurized lubricant straight to all five main crankshaft journals.
• Heavy gauge stamped steel oil pans resist debris impact damage on unimproved work sites.

Dyno Bench Output Standards

Shop testing subjects the DFN1 long block engine to continuous dyno absorption cycles. The test cell registers 200 continuous BHP with 280 ft-lbs shaft torque at 2,800 RPM. Sump oil temperature reads 192°F with oil pressure steady at 54 PSI. Combustion chambers hold 178 PSI compression with cylinder variation constrained below 4%. Crankshaft main journal runout measures 0.0002in TIR while exhaust temperatures peak safely at 1,310°F.

Deployment Boundaries Field Upkeep

Mechanical linkage inputs require 4.5 lbs force for smooth rack motion. Do not install this standard rotation Windsor engine into reverse rotation marine applications without replacing the camshaft and crankshaft oil seals.

• Change motor oil and replace spin-on lube filters every 3,000 miles or 120 run hours.
• Inspect hydraulic lifter action and pushrods every 30,000 operating miles.
• Verify cylinder head bolt torque to 70 ft-lbs following initial thermal break in cycles.

Commercial Warranty Delivery Manifest

Every remanufactured unit follows the strict VEGE assembly standard to assure complete fleet reliability. Buyers receive a 3-Year or 100,000-mile limited replacement parts warranty. The wood crate package contains the inspected long block engine, oil pan, front timing casing, valve covers, internal oil pickup screen, and certified dynamometer inspection certificate.
