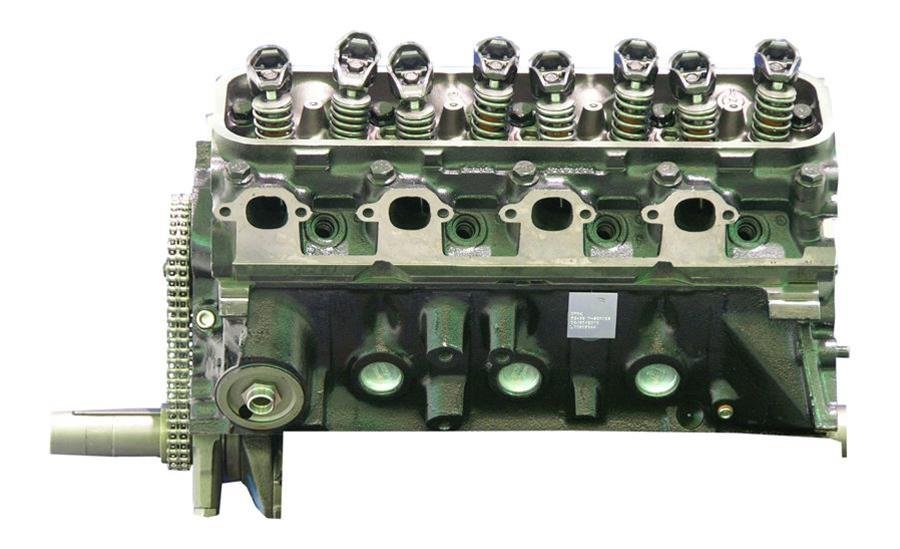

VEGE Remanufactured DFK4LPG 7.0L 429ci LPG Dedicated Long Block Engine

Description

Valve face microwelding and valve guide scuffing from dry propane fuel ruin industrial shuttle trucks on depot routes. The VEGE Remanufactured DFK4LPG 7.0L 429ci LPG Dedicated Long Block Engine stops dry-fuel valve recession through an industrial engine rebuild. This 7.0L 8-Cylinder build develops 210HP, but mechanics must verify propane fuel lockoff valve operation.

Cast from ASTM A48 Class 35 heavy iron, this VEGE engine core mounts dedicated LPG iron heads, stellite seats, and a nodular iron crankshaft. Starter draw measures 185A on 12V circuits. Total dry weight measures 580 lbs within 32in length, 29in width, 30in height dimensions requiring 6.0 quarts oil.

Key Features of VEGE DFK4LPG

Depot managers buy VEGE Remanufactured DFK4LPG 7.0L 429ci LPG Dedicated Long Block Engine units to operate propane utility vehicles without unexpected downtime. Premium high-nickel valve seat inserts resist the dry abrasive combustion environment of liquid petroleum gas to ensure long-term compression retention.

• Massive 429ci displacement combines a 4.360in bore with a 3.590in stroke for heavy towing torque.
• High-nickel stellite valve seat inserts prevent dry LPG fuel valve recession under continuous load.
• Stellite-faced valves resist thermal oxidation and microwelding under extreme combustion heat.
• Cast iron cylinder heads feature precision-machined valve guides to prevent oil weeping into ports.
• DFK4LPG commercial core alignment boring ensures true crankshaft rotation under heavy pulling conditions.
• Two-piece Viton rear main seal stops crankcase oil seepage onto torque converter plates.
• Double roller timing chain sets prevent camshaft synchronization drift across severe duty cycles.

Dyno Test Cell Metrics

Dyno validation confirms mechanical parameters on each DFK4LPG long block engine before shipping. The LPG big block produces 210HP at 4200 RPM and 350 ft-lbs torque at 2600 RPM. Oil gallery pressure maintains 55 PSI hot at 195°F oil temperature. Cylinder compression balances out at 170 PSI across all cylinders with 3% variance. Crank runout limits to 0.0003in TIR. Exhaust gas temp tops out at 1280°F under full load.

Bay Constraints Maintenance Schedules

Mechanical throttle linkage operates with 6 lbs return resistance. This dedicated LPG commercial big block is NOT suited for gasoline carburetion, small-block chassis engine mounts, or passenger vehicles requiring low-clearance front-sump pans.

• Flush break-in engine oil and replace the filter element after 500 highway transit miles.
• Inspect LPG fuel mixer diaphragm and intake plenum clamp bolts after 100 operating hours.
• Check cylinder head bolt torque down to 140 ft-lbs following initial thermal normalization runs.

Warranty Statement Shipping Hardware

Protected under the dependable VEGE assembly standard, this remanufactured unit features a 3-Year 100,000-mile commercial warranty. The sturdy transport crate contains the long block engine, oil pan, valve covers, timing cover, oil pump with screen, and signed quality inspection sheet.
