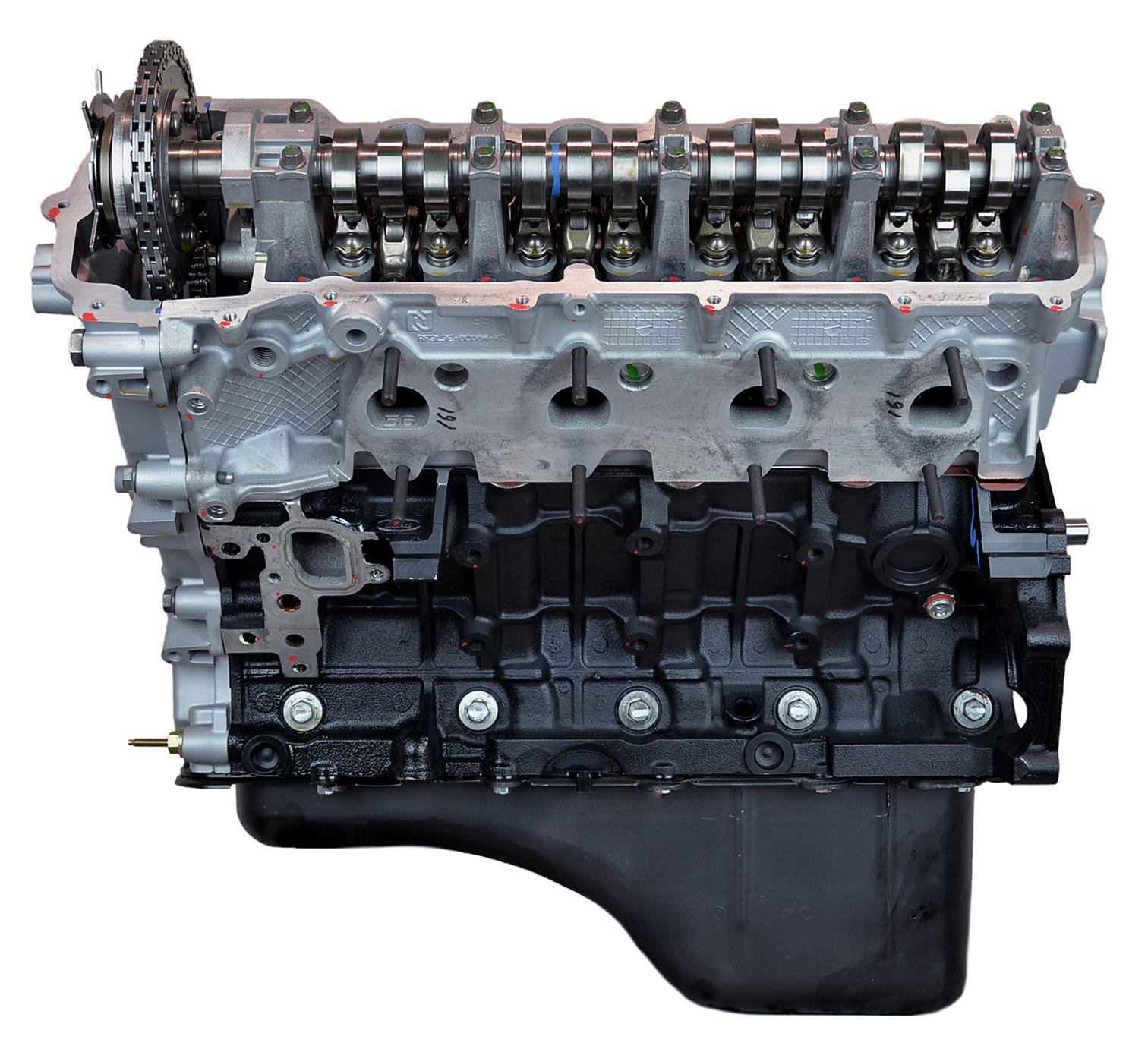

VEGE Remanufactured DFD8 4.6L 281ci Premium Grade Long Block Engine

Description

Spark plug thread fatigue and plastic timing guide fractures plague aged modular fleet vans. The VEGE Remanufactured DFD8 Long Block Engine solves these fleet failures through a precision commercial long block repower platform. This 4.6L 281ci 8-Cylinder assembly produces 225HP. Mechanics must verify oil filter adapter plate gasket port matching prior to chassis drop.

Cast from ASTM A48 Class 35 iron, the deep skirt crankcase stabilizes the rotating assembly during heavy load demands. This VEGE engine core integrates nodular cast iron crankshaft journals with AISI 4140 forged connecting rods. A standard 12V high torque starter pulls 165A under initial cold engagement. Dry weight measures 510 lbs. Exterior dimensions span 28in length, 27in width, 28in height with a 6.0 quarts oil pan.

Key Features of VEGE DFD8

Fleet mechanics buy VEGE DFD8 Long Block Engine packages to eliminate recurring overhead camshaft breakdown. Every unit undergoes precision machining to streamline your industrial engine rebuild program.

• 8-Cylinder iron blocks receive automated line boring to keep crank centerlines true.
• 16-Valve cylinder heads feature full-length steel spark plug thread inserts.
• 4.6L displacement generates 286 ft-lbs torque across steady commercial transit cycles.
• 0.0014in connecting rod bearing clearance maintains hydrodynamic lubrication film under heat.
• Hydraulic timing tensioners feature cast iron bodies instead of fragile nylon units.
• Stellite face intake valves resist thermal erosion during full throttle ramp operation.
• DFD8 commercial core assemblies include brand new gerotor high volume oil pumps.
• Multi layer steel cylinder gaskets stop combustion gas leakage past deck fire rings.

Dynamic Load Testing Parameters

Dynamometer verification runs validate 225BHP and 286 ft-lbs torque at 4600 RPM for the DFD8 long block engine. Continuous hot cell testing keeps oil gallery pressure at 52 PSI under 195°F coolant temperatures. Cylinder compression benchmarks span 185 PSI across all eight bores with under 3% variance. Exhaust gas temps peak at 1180°F during full load pulls. Crankshaft thrust runout checks confirm zero runout past 0.0003in TIR tolerance thresholds.

Field Service Integration Guidelines

Throttle linkage hardware requires 6 lbs linear pull effort to actuate cable levers. This engine is not built for supercharged Cobra platforms, front wheel drive passenger cars, or vehicles requiring three-valve variable cam phaser timing controls.

• Initial break-in oil dump occurs at 500 miles using straight mineral 10W-30 formulation.
• Hydraulic lash adjusters seat without manual shimming to hold zero lash operation.
• Torque-to-yield cylinder head bolts require discard and single-use replacement upon any service teardown.

Standard Packaging Protection Specifications

The standard VEGE assembly standard provides a 3-Year 100,000-mile commercial parts and labor warranty protection package. Heavy timber crate shipments contain the complete assembled long block, steel oil pan, aluminum timing cover, composite valve covers, internal oil pickup tube, and signed dynamometer test sheets.
