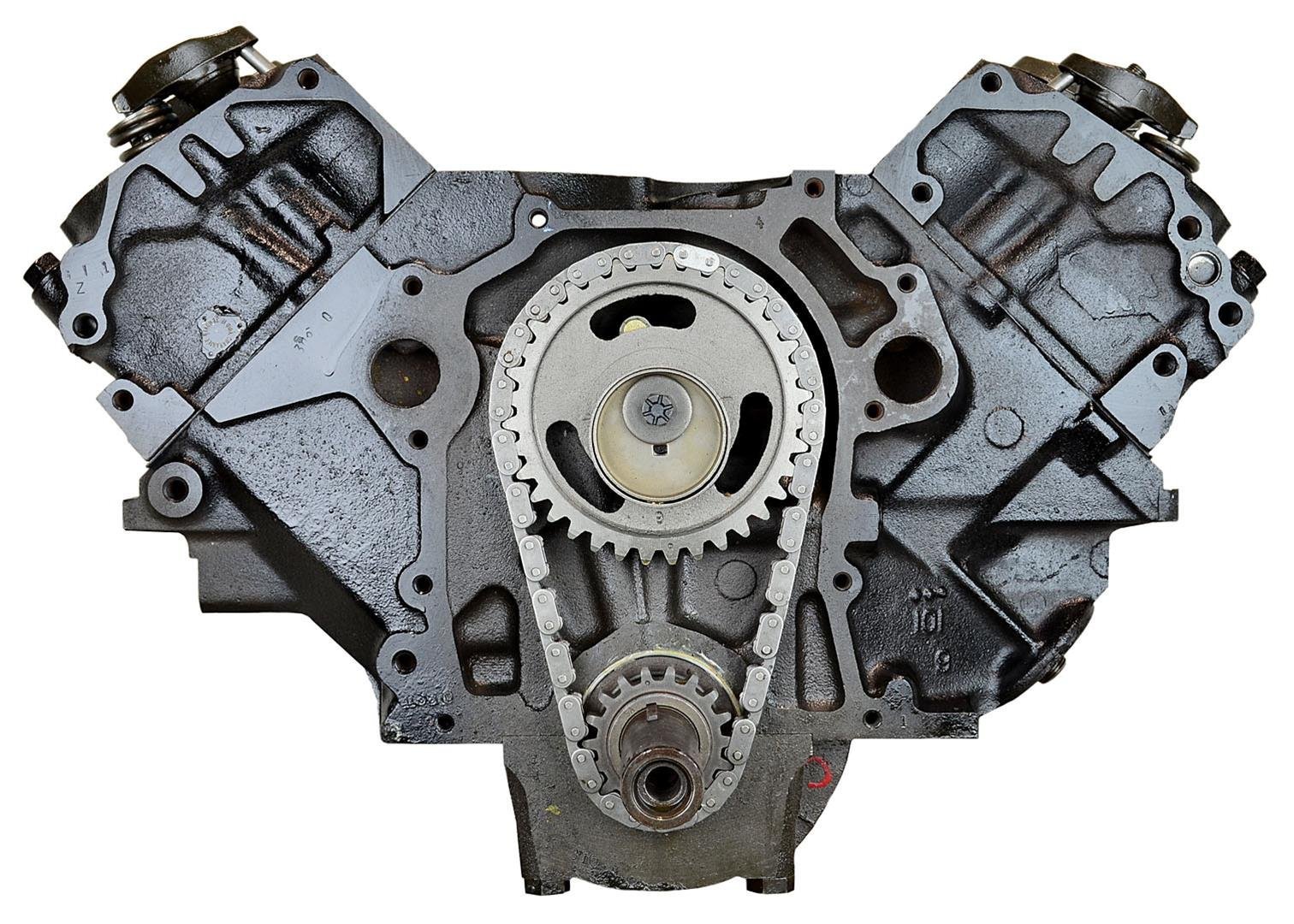

VEGE Remanufactured DF93 7.5L 460ci Platinum Grade Long Block Engine

Description

Exhaust valve recession and timing chain stretch cause severe power drop in heavy commercial utility trucks. The VEGE Remanufactured DF93 Platinum Grade Long Block Engine terminates chronic valve burning during an industrial engine rebuild project. This 7.5L 460ci 8-Cylinder big block brute produces 245HP. Technicians must check distributor drive gear pin shear strength before dyno verification.

Heavy wall ASTM A48 Class 35 cast iron forms the 385-series cylinder block and large port combustion heads. A heat treated nodular iron crankshaft turns on heavy duty tri-metal bearings inside this VEGE engine build. Heavy duty 12V starter motors pull 185A during cold winter morning starts. Total unrigged dry weight reaches 620 lbs across dimensions of 32in length, 28in width, 29in height. The deep stamped steel pan holds 6.0 quarts.

Key Features of VEGE Remanufactured DF93

Fleet directors buy VEGE Remanufactured DF93 Platinum Grade Long Block Engine units to repower severe service transport vehicles. Every commercial long block repower integrates upgraded valve train parts and balanced rotating assemblies to handle continuous heavy towing stress.

• Heavy duty flat tappet camshafts deliver valve lift profiles tuned for big block commercial torque.
• 0.0018in connecting rod journal clearances provide continuous hydrodynamic oil films during heavy load pulls.
• Induction hardened exhaust valve seats stop pocket sink when running low octane commercial pump fuels.
• The DF93 commercial core features double roller steel timing sets that eliminate camshaft timing drift.
• Plateau honed cylinder walls allow moly rings to seat fast without bore scuffing.
• Stellite faced exhaust valves withstand continuous high thermal cycles without valve head tulip stretch.
• Multi layer steel cylinder head gaskets maintain combustion gas seal integrity across large cylinder bores.

Continuous Load Dynamometer Ratings

Dynamometer cell tests rate this DF93 long block engine at 245 BHP and 400 ft-lbs of continuous torque at 2800 RPM. Internal oil galleries show 55 PSI at 195°F oil pan thermal stabilization. Exhaust pyrometer thermocouples register 1240°F during continuous high load runs on the water brake absorber unit. Cylinder compression gauges verify 175 PSI across all eight cylinders within 4% balance across both banks. Crankshaft total runout measures under 0.0003in TIR to safeguard copper bearing babbit surfaces under load.

Commercial Vehicle Installation Directives

Carburetor or throttle body linkages require 5 lbs of return spring tension to ensure complete idle cutoff. This 460ci big block engine is NOT engineered for modern front-wheel drive vans, lightweight passenger sedans, or marine ski boats requiring water jacket bronze core plugs.

• Dump initial break-in mineral oil alongside the spin-on filter at 500 miles or 30 engine hours using high zinc oil.
• Adjust hydraulic rocker nuts to zero lash plus one-half turn down during cold pre-assembly adjustments.
• Retorque cylinder head bolts following initial engine thermal warm up cycles to guarantee gasket seal retention.

Crate Manifest Warranty Protection

Built to match the rigorous VEGE assembly standard, this big block long block includes a 3-Year 100,000-mile parts warranty. The timber freight crate encloses the sealed long block, industrial oil pan, timing cover, steel valve covers, oil pickup screen, and authenticated shop dynamometer quality checklist.
