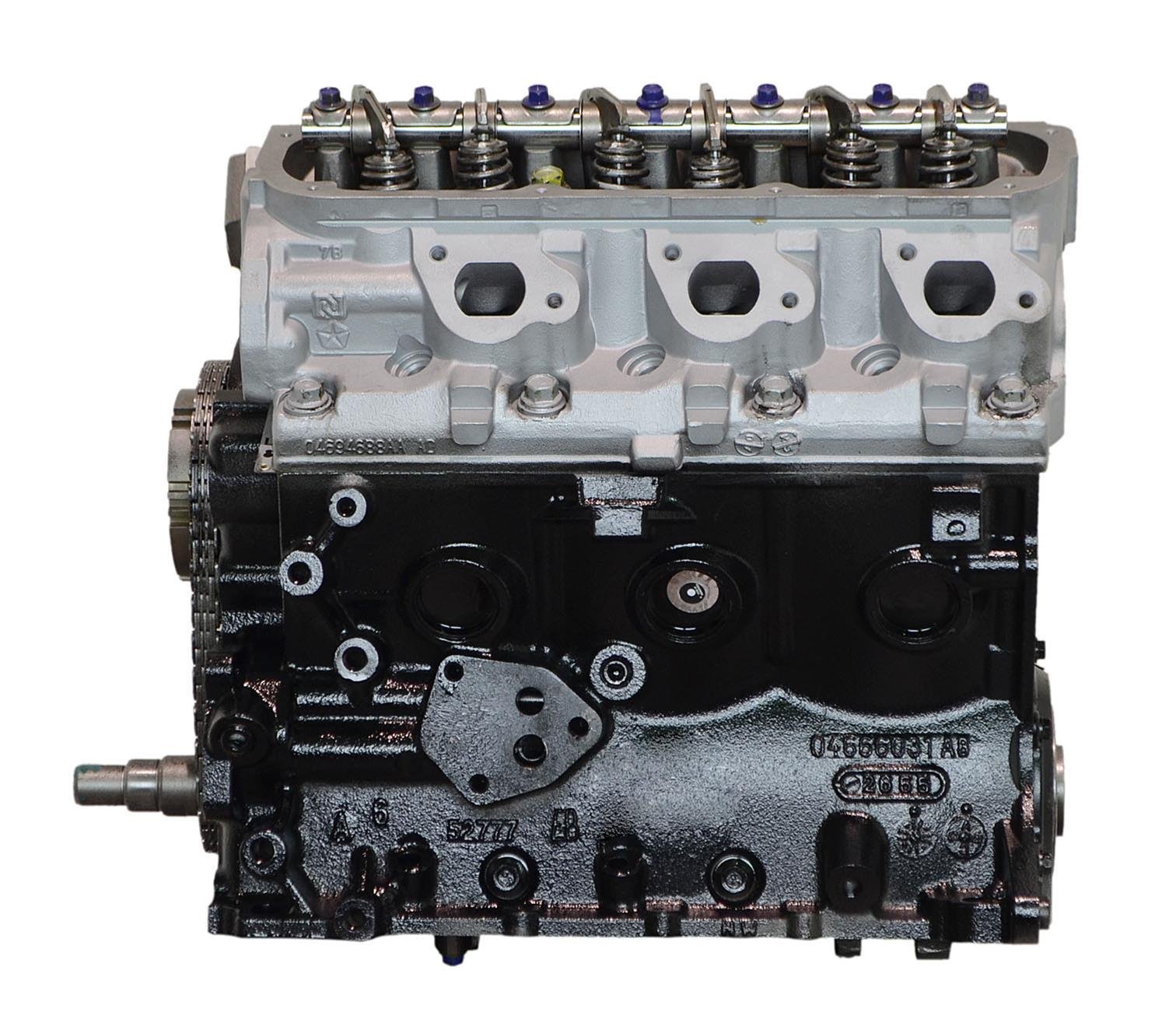

VEGE Remanufactured DDK37 3.8L 230ci Multi Purpose Long Block Engine

Description

Worn valve guide seals and lower intake gasket blowouts cause severe oil consumption across commercial transport minivans. The VEGE Remanufactured DDK37 Multi Purpose Long Block Engine eliminates oil fouling and misfires during an industrial engine rebuild. This 3.8L 230ci 6-Cylinder OHV assembly delivers 202HP. Technicians must check lower intake manifold torque sequence before upper intake manifold installation.

Dense ASTM A48 Class 30 gray iron forms both the rigid 60-degree engine case and overhead valve cylinder heads. A counterweighted nodular iron crankshaft turns on bi-metal aluminum bearings inside this VEGE engine build. Cold cranking draws 150A through 12V starter circuits during morning turnover. Total unrigged dry weight reaches 385 lbs with dimensions of 25in length, 24in width, 26in height. The stamped steel sump holds 5.0 quarts.

Key Features of VEGE Remanufactured DDK37

Shop managers choose to buy VEGE Remanufactured DDK37 Multi Purpose Long Block Engine units to restore reliable fleet performance. Every commercial long block repower pairs precision resurfaced heads with calibrated valvetrain components to ensure trouble free route service.

• Roller hydraulic lifters track smooth camshaft lobes to reduce pushrod friction and valvetrain noise.
• 0.0014in connecting rod journal clearances provide continuous hydrodynamic oil films under uphill climbing stress.
• Plateau honed cylinder walls allow piston rings to seat fast without bore scuffing or glazing.
• The DDK37 commercial core uses induction hardened exhaust valve seats to resist recession on unleaded fuels.
• Multi layer steel cylinder head gaskets maintain combustion gas seal integrity across high temperature cycles.
• Precision ground steel pushrods maintain structural rigidity during sudden transmission downshift events.
• Single piece viton rear crankshaft seals prevent oil loss into the transmission bellhousing.

Shop Dynamometer Load Verification Data

Dynamometer cell tests rate this DDK37 long block engine at 202 BHP and 240 ft-lbs of continuous torque at 4000 RPM. Main oil gallery sensors record 48 PSI at 190°F oil pan thermal stabilization. Exhaust runner probes reach 1220°F during sustained continuous test runs on the water brake absorber unit. Dynamic compression testing displays 175 PSI across all six cylinders within 4% balance between cylinder banks. Crankshaft total runout measures under 0.0002in TIR to protect main bearing babbit surfaces under load.

Chassis Setup Maintenance Protocols

Throttle body linkage cables require 4 lbs of return spring resistance to guarantee positive idle closing. This pushrod V6 powerplant is NOT engineered for marine inboard installations, longitudinal rear-wheel drive trucks, or high boost turbocharged racing setups.

• Flush out initial break-in petroleum motor oil and change the filter at 500 miles or 30 operating hours.
• Hydraulic roller lifters seat inside alignment yokes with zero manual valve lash adjustment steps required.
• Tighten cylinder head bolts in three progressive steps using angle rotation specifications without subsequent hot retorque passes.

Crated Inventory Warranty Coverage

Built to meet the comprehensive VEGE assembly standard, this replacement long block includes a 3-Year 100,000-mile parts warranty. The timber crate carries the complete long block assembly, stamped oil pan, timing gear cover, steel valve covers, pickup tube screen, and signed dynamometer test documentation.
