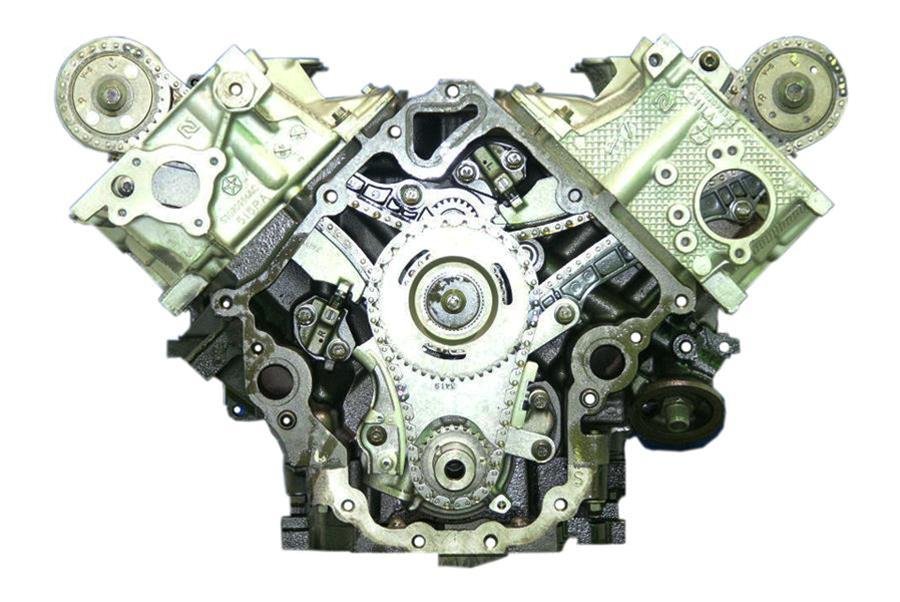

VEGE Remanufactured DDH2 3.7L 226ci Industrial Grade Long Block Engine

Description

Dropped intake valve seats and broken timing guide brackets cause sudden valvetrain destruction in commercial light utility trucks. The VEGE Remanufactured DDH2 Long Block Engine eliminates cylinder head seat drop through an industrial engine rebuild protocol. This 3.7L 226ci 6-Cylinder powerplant generates 210HP. Technicians must verify camshaft tone ring tooth count matches chassis computer sensors prior to drop-in.

Dense ASTM A48 Class 30 gray iron forms the deep skirt 90-degree V6 block to ensure bottom end rigidity under continuous duty. The VEGE engine core features an induction hardened cast iron crankshaft, forged connecting rods, and an overhead balance shaft. Cranking current consumes 155A on standard 12V starters. Assembled dry weight totals 410 lbs with exterior boundaries of 26in length, 25in width, 26in height backed by a 5.0 quarts oil pan.

Key Features of VEGE DDH2

Fleet managers buy VEGE DDH2 Long Block Engine inventory to restore dependable service in light commercial route trucks. CNC head machining incorporates positive retention valve seat inserts to prevent catastrophic seat drop during each commercial long block repower.

• 6-Cylinder 90-degree iron block features align honed main bearing journals to ensure crank trueness.
• 12-Valve single overhead cam cylinder heads feature oversized interference-fit valve seats to stop dropped seats.
• 3.7L displacement delivers 235 ft-lbs torque for reliable parcel delivery and utility service.
• 0.0013in connecting rod journal clearance maintains uniform hydrodynamic lubrication under stop-start duty.
• Internal counter rotating balance shaft cancels harmonic shaking across common working RPM bands.
• Upgraded timing chain guide shoes resist embrittlement and stop chain deflection under load.
• DDH2 commercial core assemblies arrive with brand new high pressure oil pump units.

Dynamometer Test Cell Benchmarks

Hot cell brake tests establish 210BHP and 235 ft-lbs torque at 5200 RPM on the DDH2 long block engine. Diagnostic pressure transducers verify 48 PSI oil gallery delivery at 195°F continuous sump operating temperature under full test load. Cylinder compression gauges confirm 175 PSI per cylinder bore across both cylinder banks with variance restricted within 3%. Exhaust gas pyrometers track 1150°F during full power runs. Precision bench dial indicators confirm crankshaft thrust runout remains below 0.0003in TIR across finished surfaces.

Field Installation Directives Constraints

Mechanical throttle cable return springs demand 5 lbs manual pull effort to stroke the throttle body butterfly during pedal travel. This engine is not built for high speed road race vehicles, marine inboard hulls, or supercharged performance configurations.

• Flush initial break-in petroleum motor oil at 500 miles and refill the crankcase with API approved 5W-30 mineral oil.
• Hydraulic lash adjusters seat within zero lash operating envelopes without manual adjustment shims.
• Cast iron cylinder head fasteners require clean oiled threads and strict angle torque execution on assembly.

Warranty Protection Transport Manifest

Commercial vehicle investments receive coverage under the VEGE assembly standard 3-Year 100,000-mile warranty policy. The heavy timber transport crate contains the complete assembled remanufactured long block, front timing cover, stamped steel oil pan, stamped valve covers, oil pump pickup screen, and verified dyno performance test sheets.
