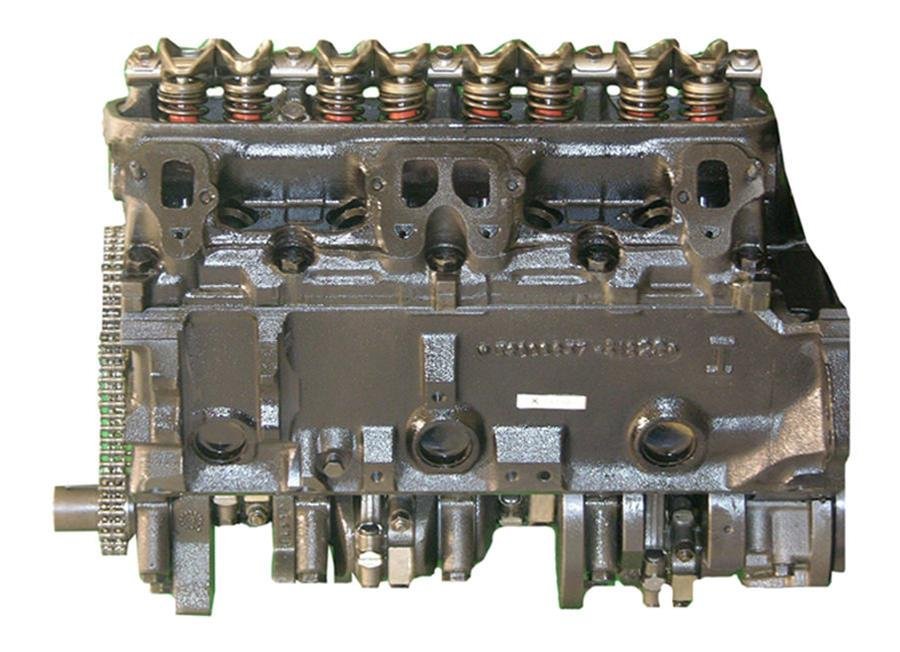

VEGE Remanufactured DD66 5.2L 5211cc Heavy Duty Long Block Engine

Description

Exhaust valve seat dropping under sustained highway load forces severe fleet schedule disruptions. The VEGE DD66 Heavy Duty Long Block Engine eliminates downtime during commercial long block repower operations on work trucks. This 5.2L 5211cc 8-Cylinder powerplant yields 230HP with reinforced exhaust ports. Technicians must check pilot bearing depth inside the crankshaft rear flange before coupling manual transmissions.

Cast from high tensile ASTM A48 Class 35 iron, the block maintains structural integrity under maximum gross vehicle weight. The VEGE engine core integrates induction hardened valve seats, a nodular iron crankshaft, and forged connecting rods. Starter draw measures 180A at 12V. Dry weight is 480 lbs, holding 5.0 quarts oil capacity with block dimensions measuring 29in length, 25in width, 27in height.

Key Features of VEGE DD66

Commercial contractors choose to buy VEGE DD66 commercial long block repower crates for demanding towing operations. This heavy duty platform withstands constant hauling stresses without valvetrain fatigue.

• Bore dimension ground to 3.910in provides uniform thermal dissipation down the liner.
• Piston stroke calibrated to 3.310in generates immediate pulling power from low RPM.
• Induction hardened valve seats prevent seat sink during heavy trailer hauling.
• Hydraulic roller lifters reduce parasitic friction inside the crankcase assembly.
• Heavy wall oil pan casting prevents puncture damage from jobsite debris.
• The DD66 commercial core matches factory three-quarter-ton chassis motor mounts.
• Balanced rotating assembly minimizes engine vibration transmitted to the truck cab.

Hot Dynamometer Proofing Data

Every DD66 long block engine undergoes loaded dyno validation before crate packaging. Technicians record 230 BHP and 305 ft-lbs torque output at 3500 RPM under load. Gallery oil pressure holds 52 PSI at 198°F sump oil temperature. Exhaust gas probes show 1160°F EGT across the collectors. Cylinder compression balances out at 178 PSI with minimal variance. Main bearing journal runout remains under 0.0003in TIR.

Field Service Clearances

Transmission kickdown linkage requires 6 lbs spring tension for positive valve body response. Do not place this heavy duty truck engine into passenger cars or high-RPM circle track race setups.

• Drain break-in engine oil and swap out the oil filter element after 50 operating hours.
• Check pedestal rocker arm bolts to confirm 21 ft-lbs torque across all valve positions.
• Perform staged cylinder head fastener torquing to finish at 95 ft-lbs.

Crate Shipment Protection

Backed by our commercial VEGE assembly standard 3-Year 100,000-mile warranty, this engine ships fully enclosed. The freight pack contains the completed long block, steel oil pan, timing chain cover, stamped valve covers, oil pickup tube, and official dyno certification report.
