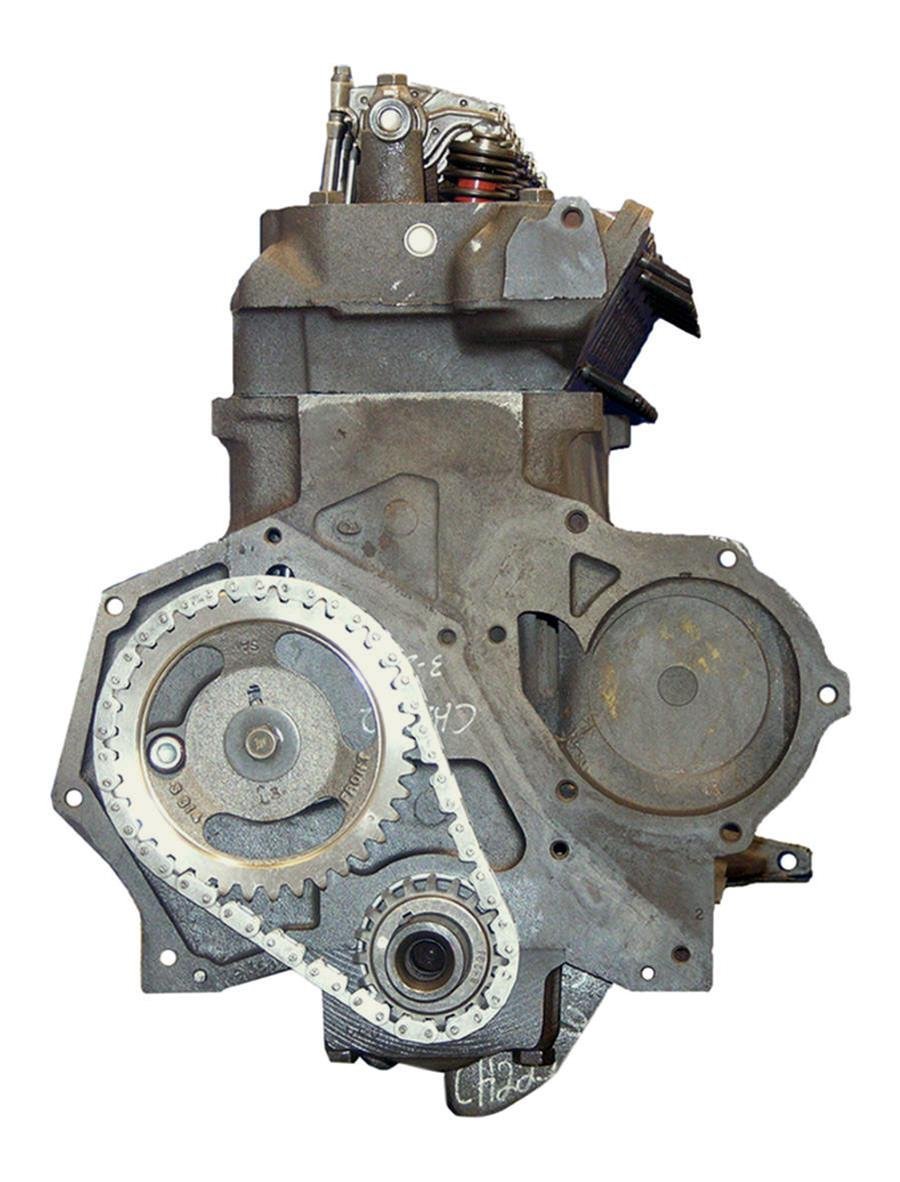

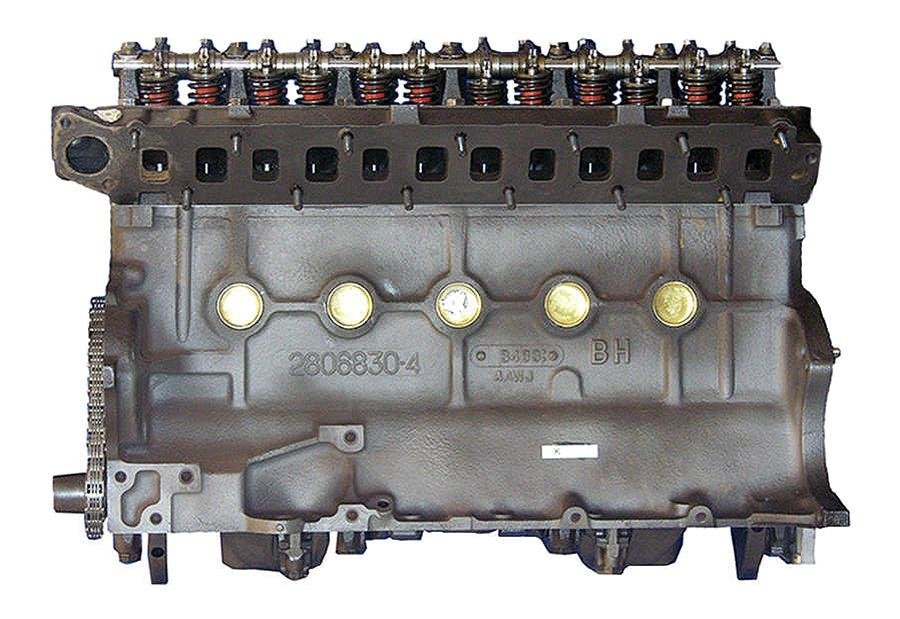

VEGE Remanufactured DD02 3.7L 225ci Car Truck Long Block Engine

Description

Oil pump drive gear stripping and spark plug tube seal leakage immobilize classic utility fleets. The VEGE DD02 Car Truck Long Block Engine eliminates service disruptions during vintage industrial engine rebuild installations. This 3.7L 225ci Inline-6 slant design delivers 145HP without distributor wobble. Technicians must check distributor drive gear backlash against the camshaft spiral gear during distributor installation.

Rugged ASTM A48 Class 30 gray iron forms the unique 30-degree inclined cylinder block. This VEGE engine core utilizes a forged steel crankshaft, forged connecting rods, and an induction hardened iron head. Starter motor draw requires 160A at 12V. Dry weight measures 475 lbs, oil capacity spans 5.0 quarts, with a mounting stance spanning 32in length, 24in width, 26in height.

Key Features of VEGE DD02

Fleet operators buy VEGE DD02 commercial long block repower motors to maintain vintage route trucks. The inclined inline architecture provides unmatched longevity and straightforward engine compartment service access.

• Cylinder bore honed to 3.400in restores compression seal across harsh operational environments.
• Long crankshaft stroke measuring 4.125in produces exceptional low-speed hill climbing torque.
• Forged steel crankshaft journals provide superior fatigue resistance under continuous hauling.
• Stellite faced exhaust valves stop seat erosion when operating on modern dry fuel.
• Mechanical solid lifter valvetrain maintains exact valve timing without hydraulic collapse risk.
• The DD02 commercial core bolts directly to traditional rear-wheel drive bellhousings.
• External oil pump mounting allows rapid pump service without oil pan removal.

Dyno Test Proofing Parameters

Live dynamometer diagnostics test each DD02 long block engine prior to warehouse departure. Computer readouts verify 145 BHP and 215 ft-lbs torque output at 3000 RPM continuous load. Oil gallery pressure holds 50 PSI at 188°F sump oil temperature. Pyrometer probes show 1050°F EGT across center exhaust runners. Compression pressure records 170 PSI per cylinder. Crankshaft runout checks under 0.0002in TIR.

Field Service Boundary Requirements

Carburetor throttle linkage demands 5 lbs spring tension for positive return to curb idle. Do not install this 30-degree tilted inline engine into narrow transverse compartments or modern computer controlled multiplex systems.

• Drain break-in mineral oil and replace screw-on oil filter element after 500 initial miles.
• Set cold valve lash clearances to 0.010in intake and 0.020in exhaust on rocker adjusters.
• Torque cylinder head bolts in progressive sequence to 65 ft-lbs final specification.

Crate Shipment Protection Guarantee

Covered under our verified VEGE assembly standard 3-Year 100,000-mile warranty, this assembly travels on heavy wooden skids. Freight includes the remanufactured long block, oil pan, timing cover, steel valve cover, oil pickup tube, and signed dyno run sheet.
