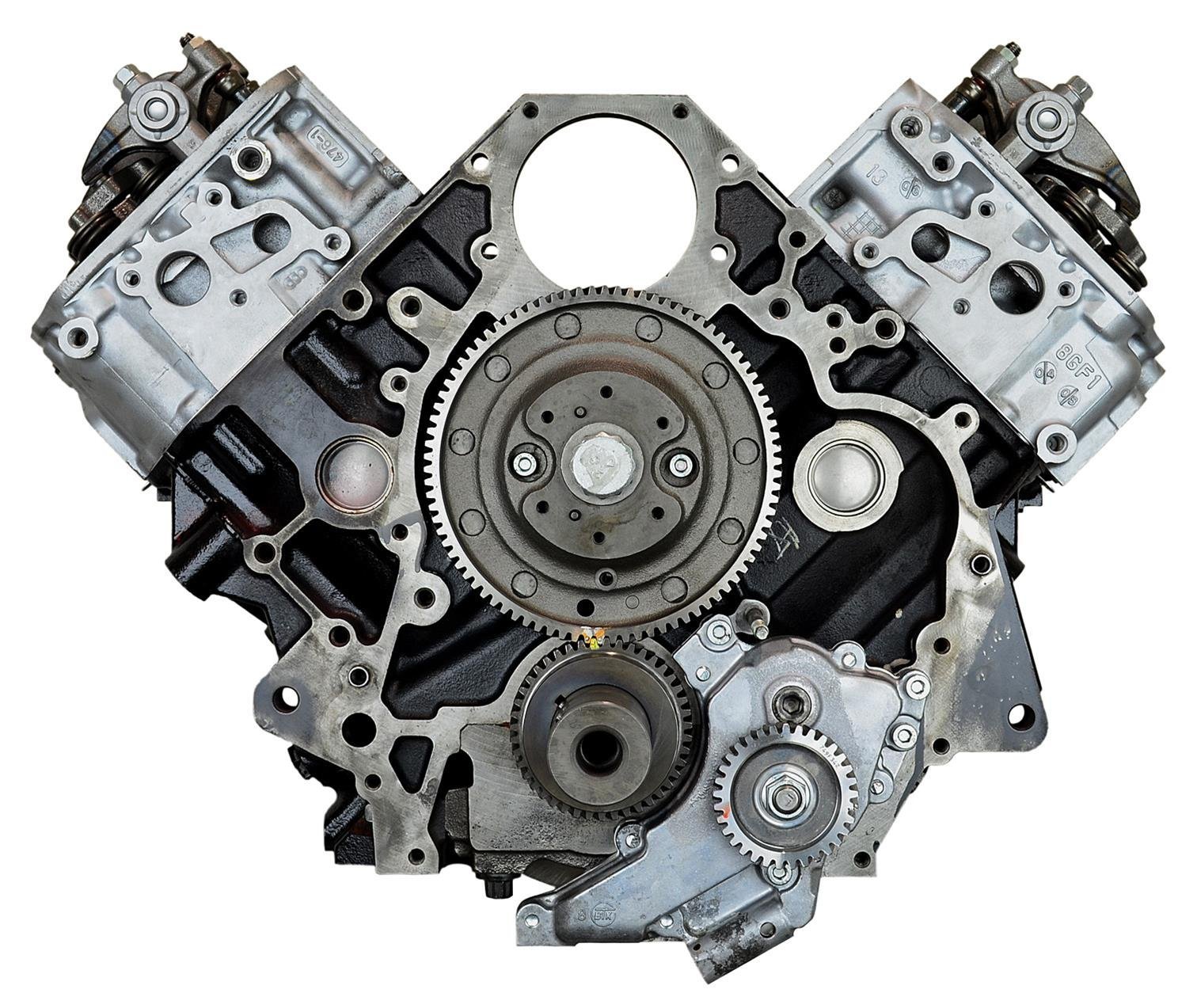

VEGE Remanufactured DCX8 6.6L 403ci Heavy Duty Long Block Engine

Description

A 403ci displacement baseline powers the VEGE DCX8 Heavy Duty Long Block Engine. This 6.6L V8 powerplant delivers 185HP for demanding commercial long block repower utility projects. Fleet mechanics must check windowed main bearing webs in the crankcase during inspection because Oldsmobile small block castings utilize specific main webbing designs that mandate standard factory torque limits.

High tensile ASTM Class 35 gray iron forms the deep cylinder case on this VEGE remanufactured long block. A nodular iron micro-polished crankshaft spins inside large journal bearing saddles to damp rotational shock loads. Cranking draws 185A on standard 12V starter circuits. Dry mass measures 540 lbs within an engine stance of 30in length by 26in width by 28in height with 5.5 quarts sump volume.

Key Features of VEGE DCX8

Service managers buy VEGE DCX8 Heavy Duty Long Block Engine inventory to minimize vehicle turnaround during an industrial engine rebuild. Quality control technicians inspect valve seat concentricity with digital air decay sensors.

• Massive 403ci displacement generates immense low speed rotational force for heavy hauling.
• Large 4.351in bore diameter improves valve unshrouding for enhanced volumetric breathing.
• Austenitic stainless steel valves maintain face integrity past 1,400°F combustion heat peaks.
• Tri-metal copper lead rod bearings support 0.0016in oil clearances under continuous highway loads.
• The DCX8 long block engine features a hydraulic flat tappet camshaft for dependable valve timing.
• Cast aluminum pistons control thermal expansion to prevent cold cylinder wall scuffing.
• Multi layer steel cylinder head gaskets maintain reliable fire ring seals against block decks.

Dyno Verification Shop Limits

Automated test cells evaluate the DCX8 commercial core before shipping. The dynamometer records 185 continuous BHP and 320 ft-lbs torque output at 2,400 RPM. Sump oil temperature reads 192°F with main gallery oil pressure holding 55 PSI. Exhaust gas temperature peaks safely at 1,320°F under simulated hill climbing. Cylinder compression gauges show 170 PSI per cylinder with under 4% variance while crank runout stays within 0.0003in TIR.

Field Service Protocols Clearance

Carburetor or throttle body linkages require 5 lbs actuation pull force across full travel. Do not install this large displacement small block engine into high-RPM road racing chassis exceeding 5,000 RPM continuous operational limits.

• Change motor oil and replace spin-on lube filters every 3,000 miles or 120 run hours.
• Inspect hydraulic lifters and pushrods every 30,000 operating miles.
• Verify cylinder head bolt tension to 80 ft-lbs following initial thermal break in cycles.

Warranty Terms Crate Contents

This build adheres to the strict VEGE assembly standard to back your investment on the road. Coverage spans a 3-Year or 100,000-mile limited nationwide commercial parts warranty. The wood pallet crate holds the sealed long block core, stamped steel oil pan, timing cover assembly, cast valve covers, oil pump pickup screen, and certified inspection report sheet.
