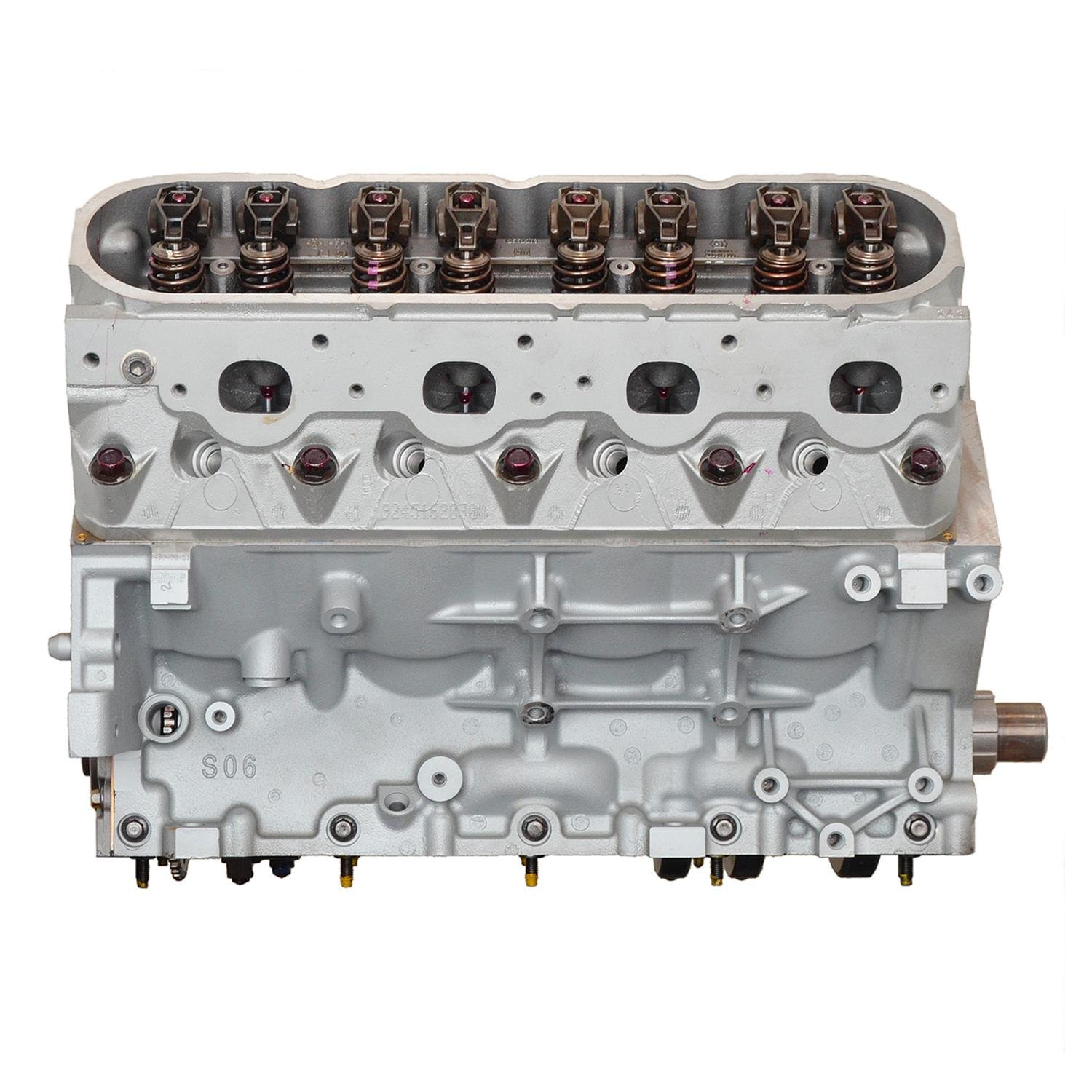

VEGE Remanufactured DCX14 5.3L 325ci Premium Grade Long Block Engine

Description

End recurring bottom end wear using the VEGE DCX14 Premium Grade Long Block Engine. This 5.3L 325ci Gen III V8 workhorse delivers 295HP for demanding commercial long block repower utility projects. Technicians must check crankshaft reluctor ring tooth count on the rear counterweight before installing crank sensors because 24X and 58X electronic sensors are incompatible.

Solid ASTM A48 Class 35 gray iron lines the deep skirt block on this VEGE remanufactured long block. A nodular iron micro-polished crankshaft spins inside cross-bolted six-bolt main bearing caps to withstand continuous highway hauling stresses. Cranking requires 180A across 12V starter circuits. Dry mass totals 495 lbs within physical dimensions of 28in length by 25in width by 27in height holding 6.0 quarts oil capacity.

Key Features of VEGE DCX14

Fleet operators buy VEGE DCX14 Premium Grade Long Block Engine packages to secure vehicle uptime during an industrial engine rebuild. Quality control technicians inspect cylinder deck surfaces using profilometers to confirm low Ra roughness values.

• Proven 325ci displacement delivers balance between fuel economy and severe hauling power.
• Cross-bolted six-bolt main bearing caps lock the crankshaft firmly inside the skirted iron block.
• Austenitic stainless steel valves maintain seating face integrity past 1,420°F exhaust temperatures.
• Tri-metal copper lead rod bearings support 0.0015in oil clearances under continuous highway load cycles.
• The DCX14 long block engine incorporates hydraulic roller valve lifters to eliminate camshaft wear.
• Precision ground pistons include anti-friction skirts to minimize bore friction under high loads.
• Multi layer steel cylinder head gaskets maintain combustion seals against continuous cylinder pressures.

Dynamic Dyno Load Evaluation

Controlled dyno load cycles stress the DCX14 commercial core to verify durability. Dyno readouts record 295 continuous BHP and 335 ft-lbs torque output at 3,200 RPM. Main oil gallery pressure maintains 56 PSI at 190°F operating temperature. Exhaust gas sensors confirm safe 1,340°F heat thresholds. Individual cylinder compression stands at 182 PSI within 4% variance while crank runout checks out at 0.0003in TIR.

Field Service Protocols Clearance

Electronic throttle actuators move smoothly against 4.5 lbs applied tension. Do not install this cast iron truck engine into front wheel drive passenger cars or light transverse engine bays.

• Replace motor oil and install new heavy duty filter canisters every 4,000 miles.
• Inspect hydraulic roller lifter action and pushrods every 40,000 operating miles.
• Check cylinder head bolt torque clamp loads during scheduled major fleet overhauls.

Warranty Assurances Crate Inventory

Every engine matches the verified VEGE assembly standard to assure complete rebuild uniformity. Fleet buyers receive a 3-Year or 100,000-mile limited replacement parts warranty. The wood pallet crate holds the assembled long block engine, oil pan, front timing casing, valve covers, oil pump pickup tube, and verified build inspection logs.
