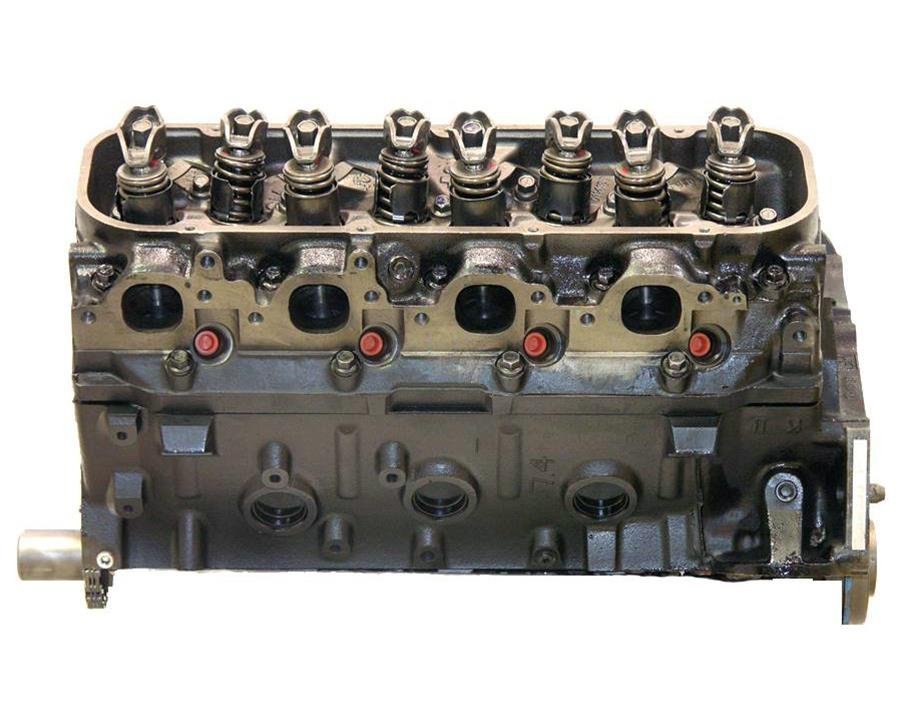

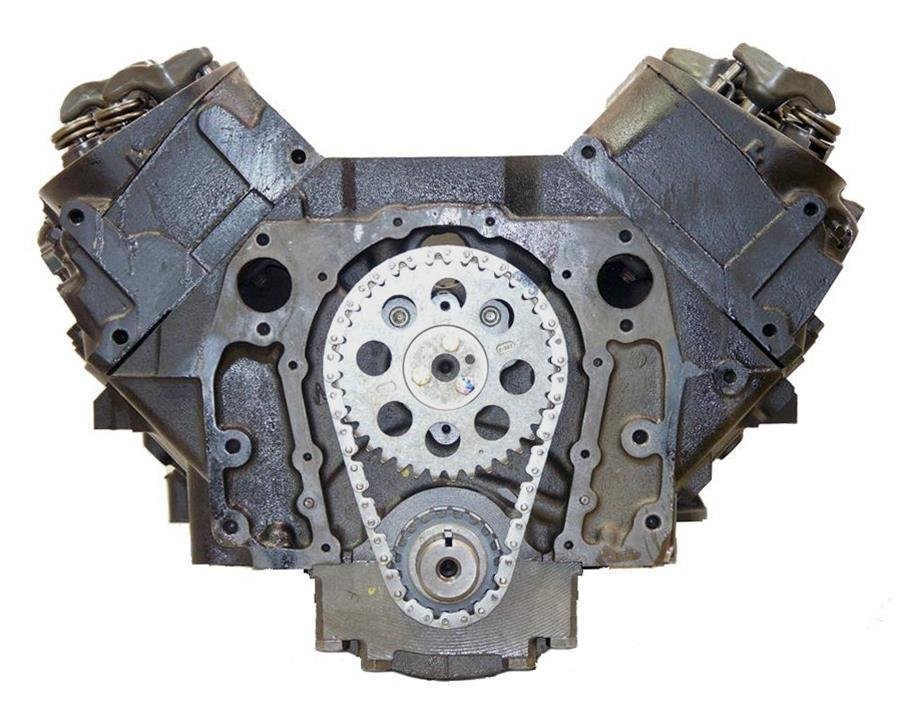

VEGE Remanufactured DCE1 7.4L 454ci Industrial Grade Long Block Engine

Description

Continuous PTO exhaust valve recession and distributor bronze drive gear stripping vanish once fleet workshops mount the VEGE Remanufactured DCE1 7.4L Long Block Engine. Delivering 290HP from its 454ci 8-Cylinder commercial long block repower setup, this unit powers heavy industrial machinery. Mechanics must verify oil cooler bypass valve plunger spring tension inside the filter adapter boss before connecting external cooling lines.

Cast from heavy ASTM A48 Class 35 gray iron, the massive crankcase provides structural strength to resist torsional bending under severe cargo loads. The VEGE engine core utilizes induction-hardened nodular iron crankshaft journals and stellite exhaust valves. Cranking starter demand requires 12V 190A. Engine dry weight measures 650 lbs inside a 31in length, 28in width, 30in height chassis envelope holding 7.0 quarts oil.

Key Features of VEGE DCE1

Commercial contractors buy VEGE DCE1 commercial long block units to maintain dependable field power across harsh route environments. Every production run enforces certified industrial engine rebuild quality tolerances.

• Forged micro-alloy steel crankshaft features micro-polished journal surfaces with 0.0003in TIR runout tolerance.
• Stellite-faced exhaust valves and induction-hardened seats eliminate seat recession under heavy PTO operation.
• Centrifugally cast iron cylinder walls receive fine diamond plateau honing for long ring life.
• CNC milled deck surfaces ensure 0.0002in flatness to stop high-pressure cylinder head fire-ring blowby.
• High-volume internal oil pump maintains 55 PSI line pressure across demanding fleet hauling duty.
• DCE1 commercial core architecture incorporates deep-skirt four-bolt main bearing caps for crankcase rigidity.
• Tri-metal copper-lead bearings establish 0.0016in running clearance to protect crank journals from wear.

Dynamometer Test Bench Load Ratings

Test cell dynamometers certify 290 continuous BHP paired with 410 ft-lbs torque output at 3600 RPM continuous test load. Fluid sensors record 55 PSI galley oil pressure at 195°F oil sump temperature, while exhaust gas temp settles at 1250°F under maximum pull. Cylinder pressure gauges verify 175 PSI compression across every cylinder within a 4% tolerance. Crankshaft runout registers 0.0003in TIR on the DCE1 long block engine.

Field Service Guidelines Operating Boundaries

Throttle cam return spring pull effort registers 6 lbs force on the accelerator lever bracket. This powertrain is NOT manufactured for light passenger vehicles or front-wheel-drive marine inboard transmissions. Installation technicians must execute verified startup maintenance protocols without exception.

• Drain break-in engine oil reservoir and replace oil filter at 500 miles or 30 hours.
• Set hydraulic lifter preload depth between 0.040in and 0.050in before sealing valve covers.
• Check exhaust manifold stud nuts for proper clamping tension after the initial run cycle.

Warranty Statement Shipping Pallet Inventory

All rebuilding procedures meet strict VEGE assembly standard metrics covered by a 3-Year 100,000-mile warranty. The wood transport container houses the long block core, stamped oil pan, aluminum front cover, stamped valve covers, oil pickup tube, and signed dyno run verification sheet.
