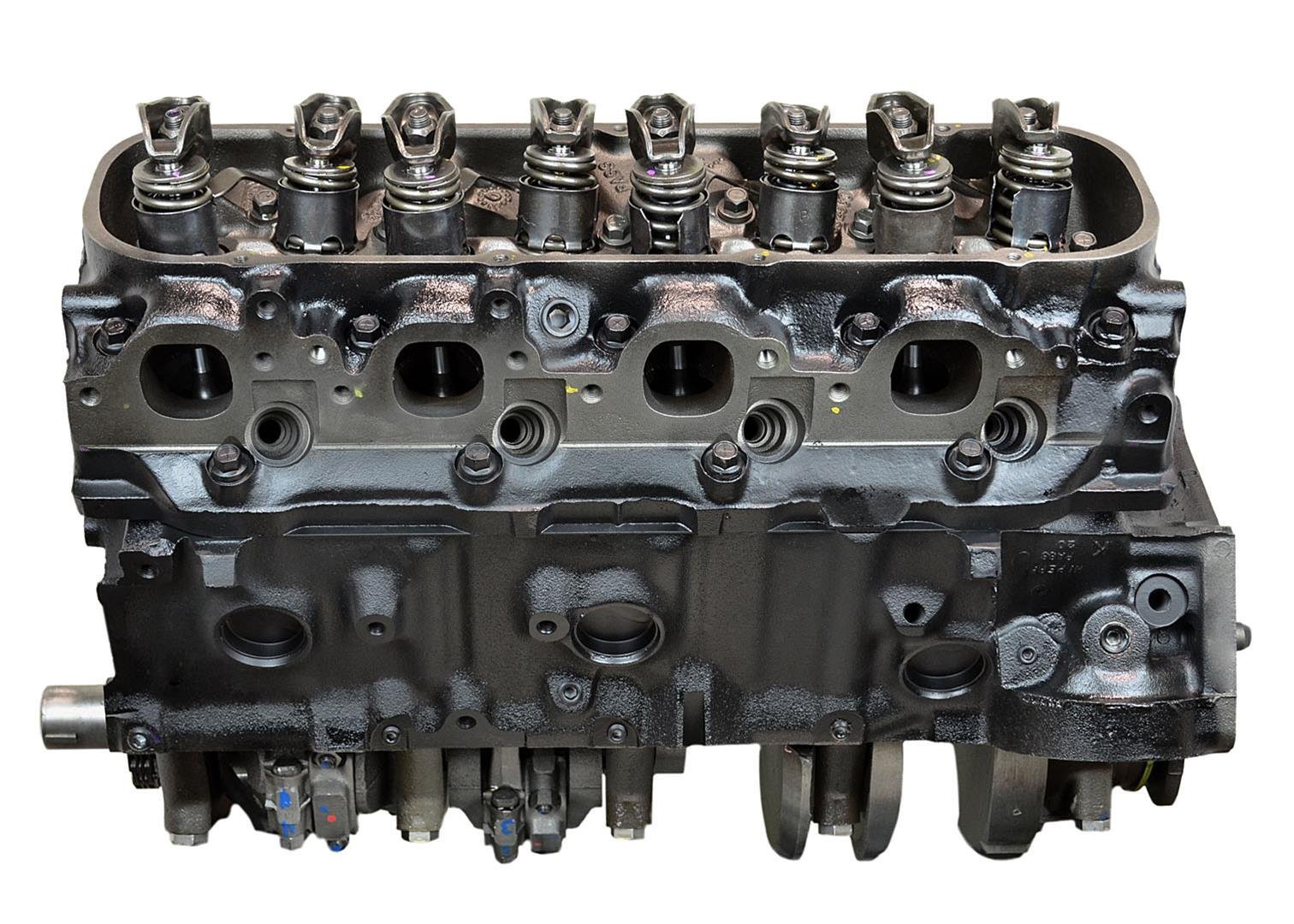

VEGE Remanufactured DC44 7.4L 454ci High Performance Long Block Engine

Description

Restore sustained valvetrain efficiency with the VEGE DC44 High Performance Long Block Engine. This 7.4L 454ci V8 heavy hauler produces 340HP for severe duty commercial long block repower applications. Machinists must verify flexplate balance type before mating the driveline because external counterweighted flywheels must match cast crankshaft balance specs.

Dense ASTM Class 35 pearlitic iron lines the massive cylinder block of this VEGE engine core. A forged 4140 chromoly steel crankshaft provides ultimate rigidity against bending fatigue under extreme torque spikes. The 12V starter motor pulls 190A during cold starts. Dry mass measures 685 lbs within a mounting stance of 31in length by 28in width by 30in height holding 7.0 quarts oil.

Key Features of VEGE DC44

Heavy haulers buy VEGE DC44 High Performance Long Block Engine packages to avoid fleet downtime during an industrial engine rebuild. Line bored main bearing tunnels ensure true rotational alignment under high load friction.

• Massive 454ci displacement delivers superior low end pulling power for heavy utility haulers.
• Four-bolt main bearing caps anchor the bottom end against high RPM crankshaft deflection.
• Stellite faced exhaust valves stop seat face erosion under continuous heavy exhaust heat.
• Hypereutectic aluminum alloy pistons resist scuffing across cold start thermal expansion cycles.
• The DC44 cylinder head assembly incorporates heavy duty valve springs to prevent valvetrain float.
• High volume oil pumps direct pressurized lubricant straight to all five main journals.
• Heavy gauge stamped steel oil pans resist debris impact damage on construction sites.

Dyno Limits Mechanical Tolerances

Shop testing subjects the DC44 long block engine to full dynamometer absorption sweeps. The dynamometer records 340 continuous BHP with 440 ft-lbs shaft torque at 3,200 RPM. Hot gallery oil pressure maintains 62 PSI at 195°F operating temperature. Exhaust gas probes record 1,390°F maximum temperature under sustained load. Cylinder compression delivers 185 PSI per cylinder with under 3% variance and crank runout within 0.0003in TIR.

Installation Rules Maintenance Guidelines

Heavy duty throttle bellcranks accept 6 lbs mechanical linkage pull tension. Do not install this big block unit into light passenger chassis with front axle ratings below 3,500 lbs to prevent suspension collapse.

• Replace motor oil and install new heavy duty filter canisters every 3,000 miles.
• Check valve lash and inspect pushrod straightness every 25,000 operating miles.
• Verify cylinder head bolt torque to 110 ft-lbs following initial thermal break in cycles.

Commercial Warranty Delivery Manifest

Each unit fulfills the demanding VEGE assembly standard to assure long term durability. Your order includes a 3-Year or 100,000-mile parts warranty against manufacturing faults. The shipping crate encloses the inspected long block engine, oil pan, front timing cover, stamped steel valve covers, screened oil pump pickup, and final quality checklist.
