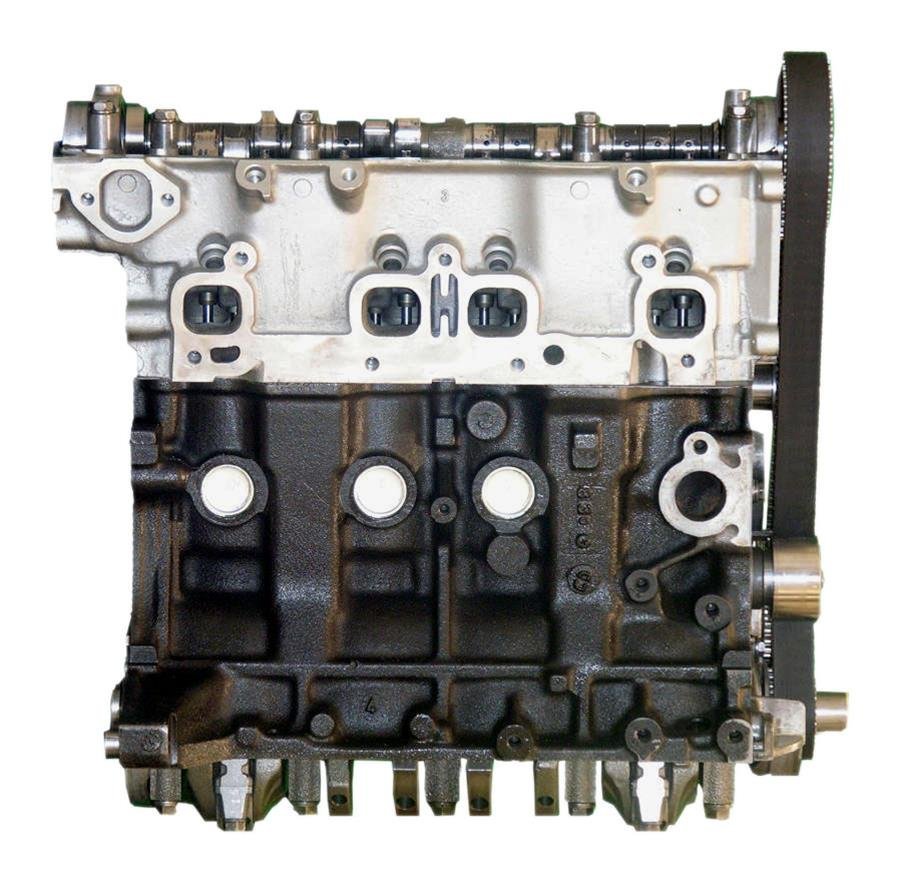

VEGE Remanufactured 832B 1.5L 1456cc Compact Car Long Block Engine

Description

Chronic valve guide wear causing high oil burn stops with the VEGE Remanufactured 832B 1.5L Long Block Engine. Generating 92HP from its 1456cc 4-Cylinder setup, this commercial long block repower platform brings light utility vehicles back to factory power. Installers must check bellhousing locating pin projection depth to avoid bound transaxle input shafts.

A high-silicon ASTM A356-T6 cast aluminum cylinder head mounts atop an ASTM Class 30 iron block for optimum heat transfer. This VEGE engine core pairs low-friction moly-coated piston skirts with case-hardened wrist pins. Cranking draws 12V 140A through starter contacts. Dry unrigged mass measures 215 lbs inside a 20in length, 19in width, 22in height base envelope with 3.8 quarts oil volume.

Key Features of VEGE 832B

Budget-conscious service centers buy VEGE 832B commercial long block units to avoid scrapping aging urban courier vehicles. Rigorous precision bench practices govern our standard industrial engine rebuild operations.

• Forged carbon steel camshaft profiles provide accurate valve timing duration across heavy stop-start urban cycles.
• Spheroidal graphite iron crankshaft shows zero runout variance past a strict 0.0002in TIR threshold.
• Multi-layer metal head gasket construction prevents oil-to-coolant jacket migration across aluminum deck mating points.
• Sintered powdered metal valve seat rings provide high thermal dissipation under elevated urban stop-and-go conditions.
• Precision-bored cylinder sleeves maintain 0.0002in out-of-round roundness limits across full piston travel stroke.
• 832B commercial core design uses deep oil drainback passages to eliminate cylinder head pool accumulation.
• Bi-metal aluminum-tin crankshaft bearings provide 0.0012in clearance to prevent thermal surface scuffing.

Rotational Dynamometer Output Operational Values

Bench tests produce 92 continuous BHP and 88 ft-lbs torque output at 5500 RPM full sweep calibration. Main oil gallery monitoring registers 42 PSI at 185°F oil sump temperature, while exhaust gas temp remains safe at 1180°F during load testing. Compression gauge checks record 190 PSI per cylinder with under 4% bank-to-bank deviation. Crankshaft runout checks at 0.0002in TIR on the 832B long block engine.

Chassis Installation Limits Maintenance Rules

Accelerator spool pull tension clocks at 4 lbs on the manifold bellcrank bracket assembly. This motor is NOT engineered for forced-induction turbocharged configurations or extreme competition track use. Fleet installers must perform these critical initial startup procedures without omission.

• Flush break-in engine oil and swap spin-on filter at 500 miles service interval.
• Measure cold intake valve clearance at 0.008in and exhaust clearance at 0.010in.
• Inspect perimeter cam cover fasteners for proper torque seal at 1,000 miles.

Warranty Terms Shipping Pallet Inventory

Engine remanufacture follows VEGE assembly standard procedures protected by a 3-Year 100,000-mile fleet warranty. The enclosed wood crate contains the fully assembled long block, stamped sheet-metal oil pan, front timing dust covers, stamped valve cover, oil pickup assembly, and an inspector-certified dyno test document.
