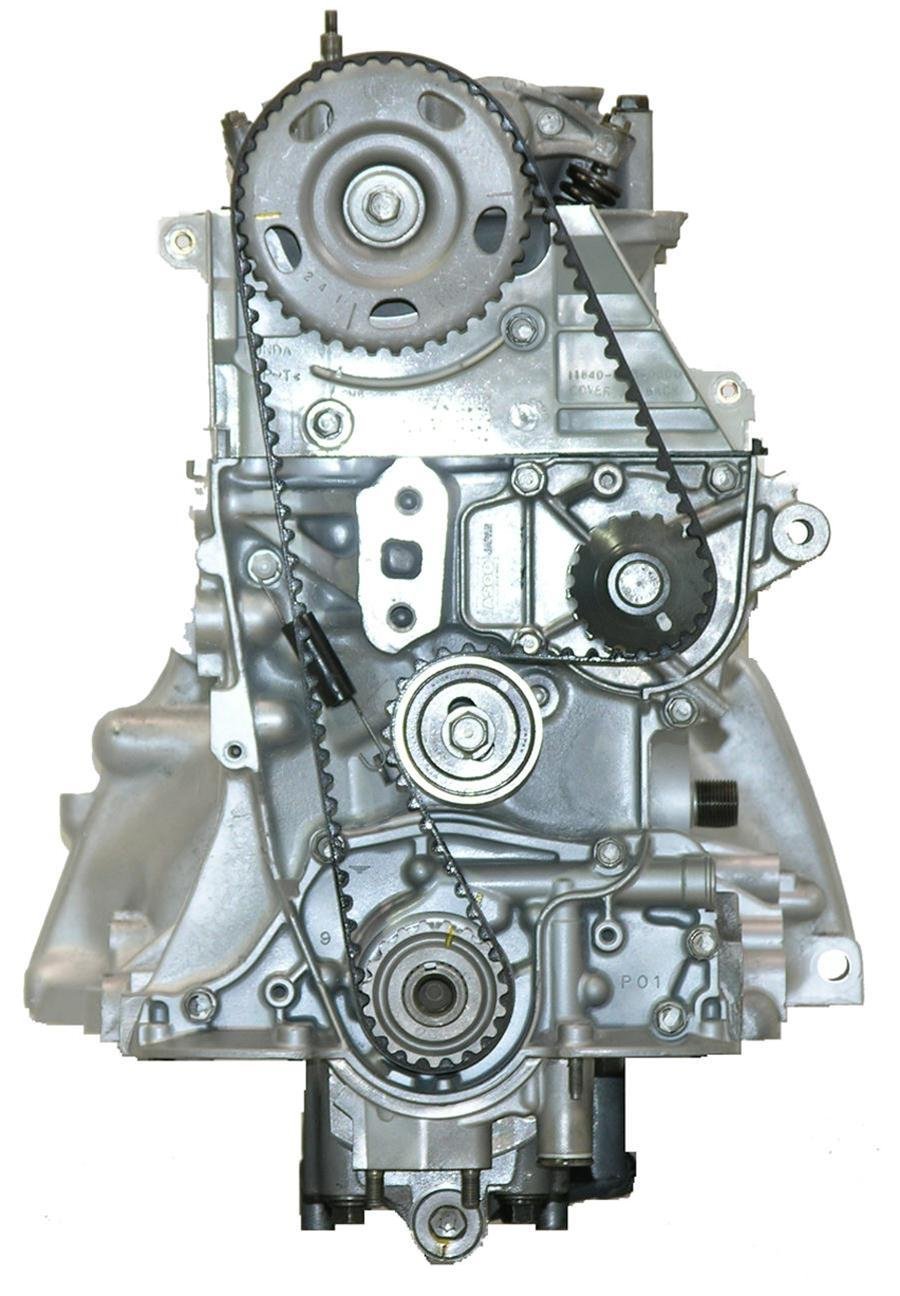

VEGE Remanufactured 518G 1.5L 1493cc Premium Grade Long Block Engine

Description

Experience renewed pulling efficiency with the VEGE Remanufactured 518G Premium Long Block Engine, built to repower courier cars requiring extended service intervals. This 1.5L 1493cc inline-4 premium grade long block outputs 106HP across a balanced aluminum foundation. Transverse engine bay clearances require checking alternator bracket spacing during shop hoist placement to prevent chassis contact.

High-density aluminum block casting gives the VEGE 518G long block assembly thermal stability under intense urban stop-and-go driving conditions. The balanced 5-bearing crankshaft rotates inside premium tri-metal bearing shells. Designed for 12V electrical systems, cold starter current draws 130A. Total dry weight measures 225 lbs within a mounting stance of 22in length by 20in width and 23in height. The oil sump capacity holds 4 quarts.

Key Features of VEGE Remanufactured 518G

Urban delivery fleet operators buy VEGE Remanufactured 518G engines to execute a premium commercial long block repower on courier cars requiring low emissions and high reliability. This VEGE remanufactured long block integrates superior internal components for extended commercial service life.

• Five tri-metal main bearings provide superior load distribution and resist journal galling.
• Diamond-turned hypereutectic pistons provide 0.0015in skirt clearance for reduced cold start piston slap.
• Premium induction-hardened valve seats resist exhaust face erosion under continuous highway speeds.
• Single overhead camshaft profiles improve midrange torque output between 2,200 RPM and 4,400 RPM.
• Reinforced timing belt sprockets provide positive camshaft synchronization without tooth wear.
• High pressure oil pump pushes 44 PSI hot oil pressure through the cylinder head galleries.
• Precision machined transaxle mounting flange allows this 518G premium core to bolt to original gearboxes.

Dyno Certified Resistance Ratings

Dynamometer water brake testing confirms this 518G long block engine generates 106HP at 6,000 RPM and 103 ft-lbs torque output at 4,500 RPM on standard commercial fuels. Oil pressure holds 44 PSI at continuous operating load with oil pan temperatures settling at 190°F. Coolant jacket temperatures stabilize at 180°F under 100% duty cycle testing. Compression testing confirms 168 PSI across all 4 cylinders with less than 2% deviation. Crankshaft journal runout measures 0.0003in TIR on dial indicators.

Chassis Clearances Maintenance Procedures

Throttle return spring mechanisms require 4 lbs pull resistance for positive throttle blade return. Do not install this premium grade inline-4 long block engine in commercial trucks carrying heavy payload boxes over 3,500 lbs GVW. Fleet mechanics must check engine cradle rubber mount condition to prevent chassis harmonic transfer from this 518G engine core.

• Renew 5W-30 synthetic blend oil and filter every 250 operating hours or 4,000 miles.
• Inspect timing belt tracking and belt tensioner bearings every 600 operating hours.
• Torque camshaft carrier bolts to 16 ft-lbs after the first 50 operating hours.

Commercial Warranty Pallet Manifest

VEGE backs this premium grade long block with a 3-Year or 100,000-mile commercial fleet warranty. The banded wooden freight crate contains the remanufactured 518G long block core, oil pan, front timing cover, stamped valve cover, high pressure oil pump, and certified factory installation instructions.
