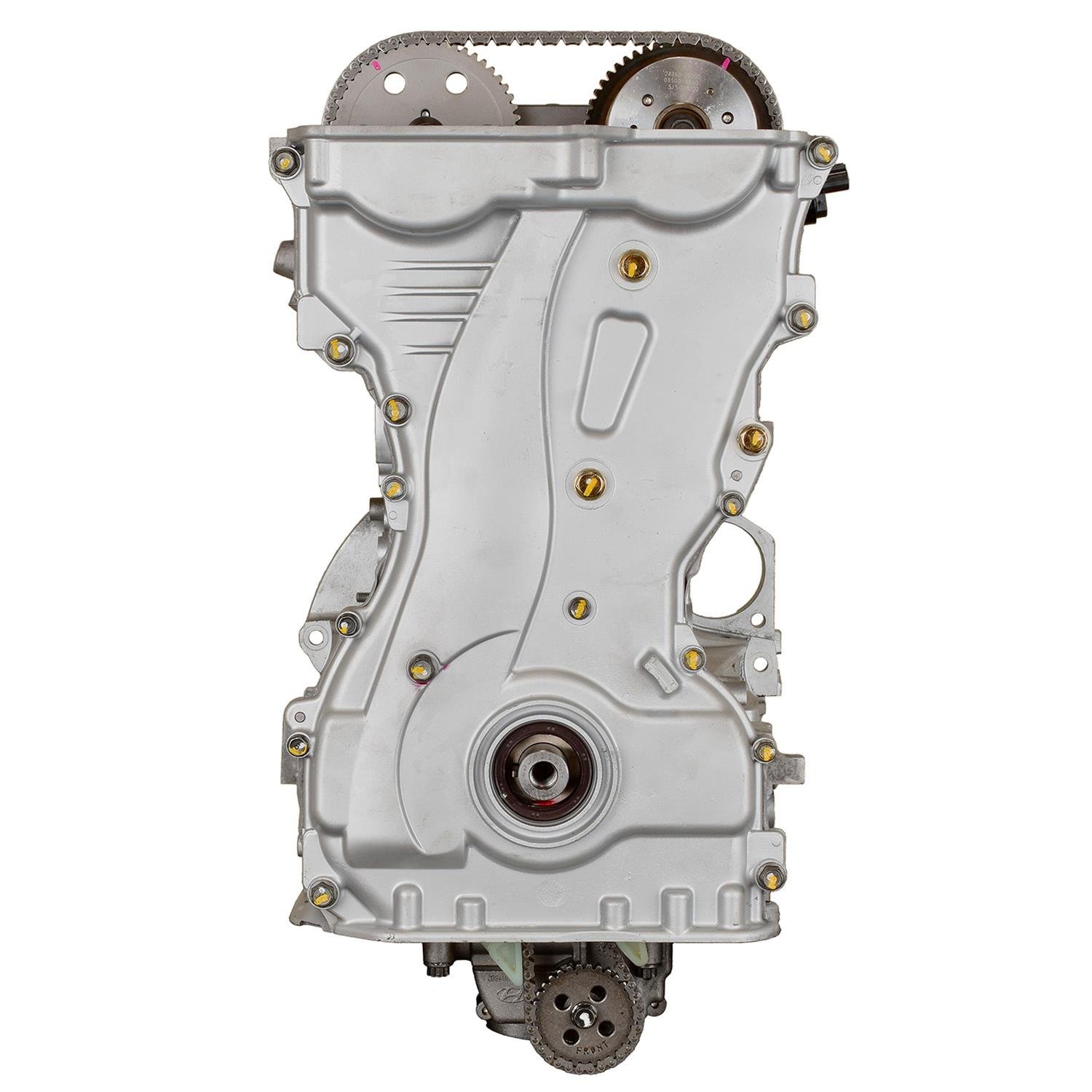

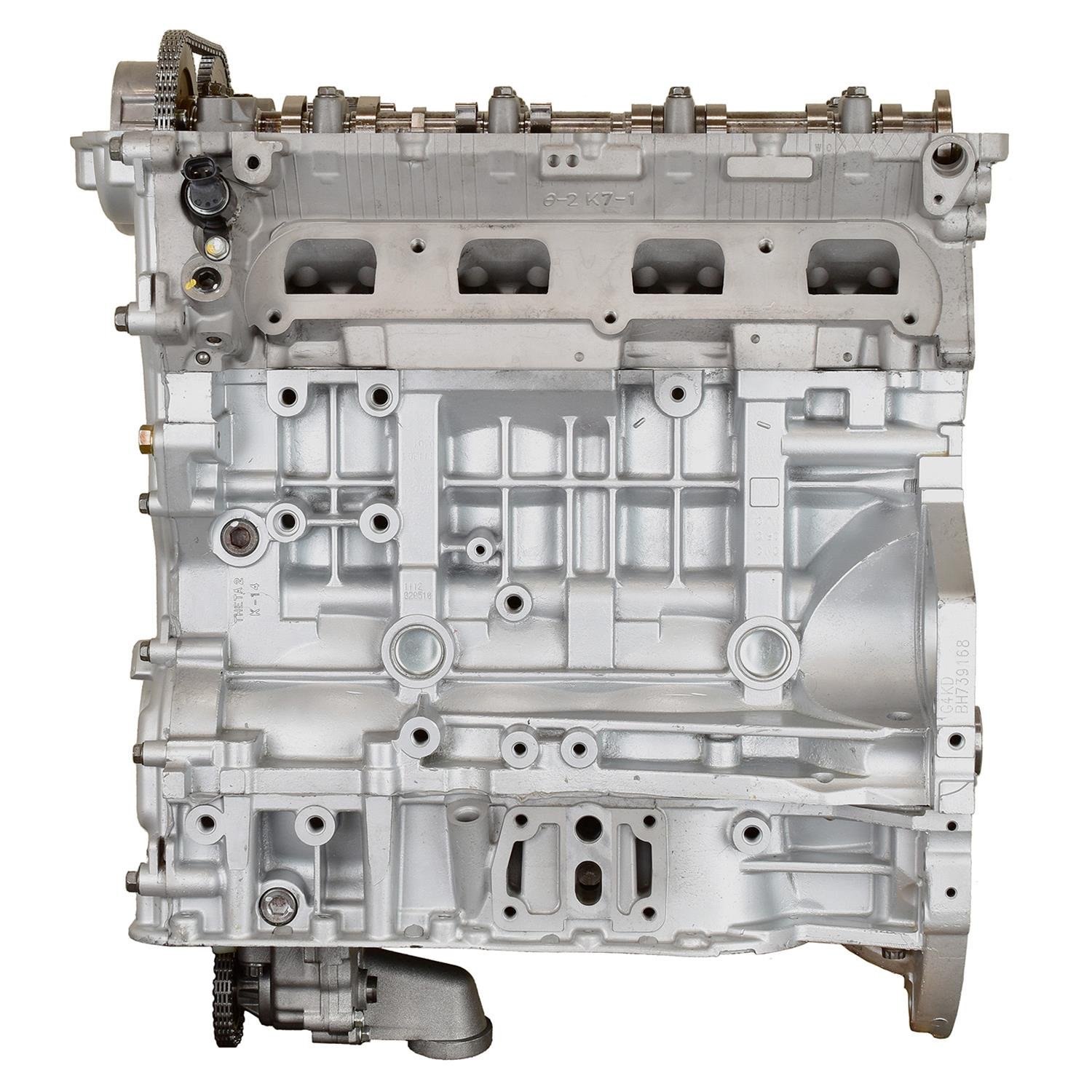

VEGE Remanufactured 271E 2.0L 122ci Multi Purpose Long Block Engine

Description

Engineered to satisfy demanding utility duty cycles, the VEGE Remanufactured 271E Multi Purpose Long Block Engine repowers critical commercial light equipment. This 2.0L 122ci inline-4 multi purpose long block produces 110HP across a durable cast iron foundation. Narrow engine bay clearance demands careful exhaust manifold alignment during drop-in placement to prevent steering shaft interference.

ASTM gray iron monoblock casting gives the VEGE 271E long block assembly structural rigidity under continuous low-speed load cycles. Crankshaft main journals undergo micro-polishing to 0.010in undersize dimensions to ensure proper oil wedge formation. Heavy 5-bearing saddles secure rotating components. The 12V negative ground system supports starters drawing 145A. Net dry weight measures 290 lbs inside a 24in length by 21in width and 25in height mounting stance. Sump capacity totals 4 quarts.

Key Features of VEGE Remanufactured 271E

Light commercial mechanics buy VEGE Remanufactured 271E engines to execute an economical multi purpose long block repower on postal vans and light urban utility equipment. This VEGE remanufactured long block provides direct replacement fitment for 2.0L four-cylinder platforms.

• Five main bearings support the crankshaft to suppress rotating vibrations at sustained operating speeds.
• Cast aluminum pistons feature micro-grooved skirts for superior cylinder wall oil retention.
• Cast iron cylinder head features precision ground valve guides for consistent valve seat sealing.
• Hydraulic lash adjusters maintain correct valve clearance without manual feeler gauge adjustments.
• Heavy duty timing belt sprockets maintain camshaft synchronization across variable operating loads.
• Internal trochoid oil pump supplies 42 PSI pressure through the main bearing oil galleries.
• Standard rear bolt pattern mates this 271E multi purpose core to original transmissions without adapters.

Dyno Load Tolerance Verification

Dynamometer step testing verifies this 271E long block engine generates 110HP at 5,000 RPM and 125 ft-lbs torque output at 3,000 RPM under continuous water brake resistance. Oil pressure stabilizes at 45 PSI with oil temperatures holding at 185°F under full thermal step loading. Water jacket coolant circulation maintains cylinder head temperatures at 180°F. Compression testing confirms 150 PSI across all 4 cylinders with less than 3% variation. Crankshaft endplay measures 0.004in tolerance on dial indicators.

Repower Precautions Maintenance Routine

Throttle body cable linkages require 4 lbs actuation pull force for smooth pedal response. Do not install this 2.0L inline-4 multi purpose long block engine into heavy commercial chassis exceeding 5,000 lbs gross vehicle weight. Commercial repower technicians must check radiator flow rate and verify timing belt tension gauge specs before running this 271E engine core.

• Change conventional 10W-30 motor oil and spin-on filter every 250 operating hours or 3,000 miles.
• Inspect overhead camshaft timing belt tension and condition every 500 operating hours.
• Check cooling system hoses and thermostat housing seal every 600 run hours.

Standard Crate Terms Manifest

VEGE covers this multi purpose long block with a 3-Year or 100,000-mile limited warranty for fleet and commercial applications. The heavy duty pallet crate contains the remanufactured 271E long block core, oil pan, front timing cover, stamped valve cover, internal oil pump, and complete factory installation setup guide.
