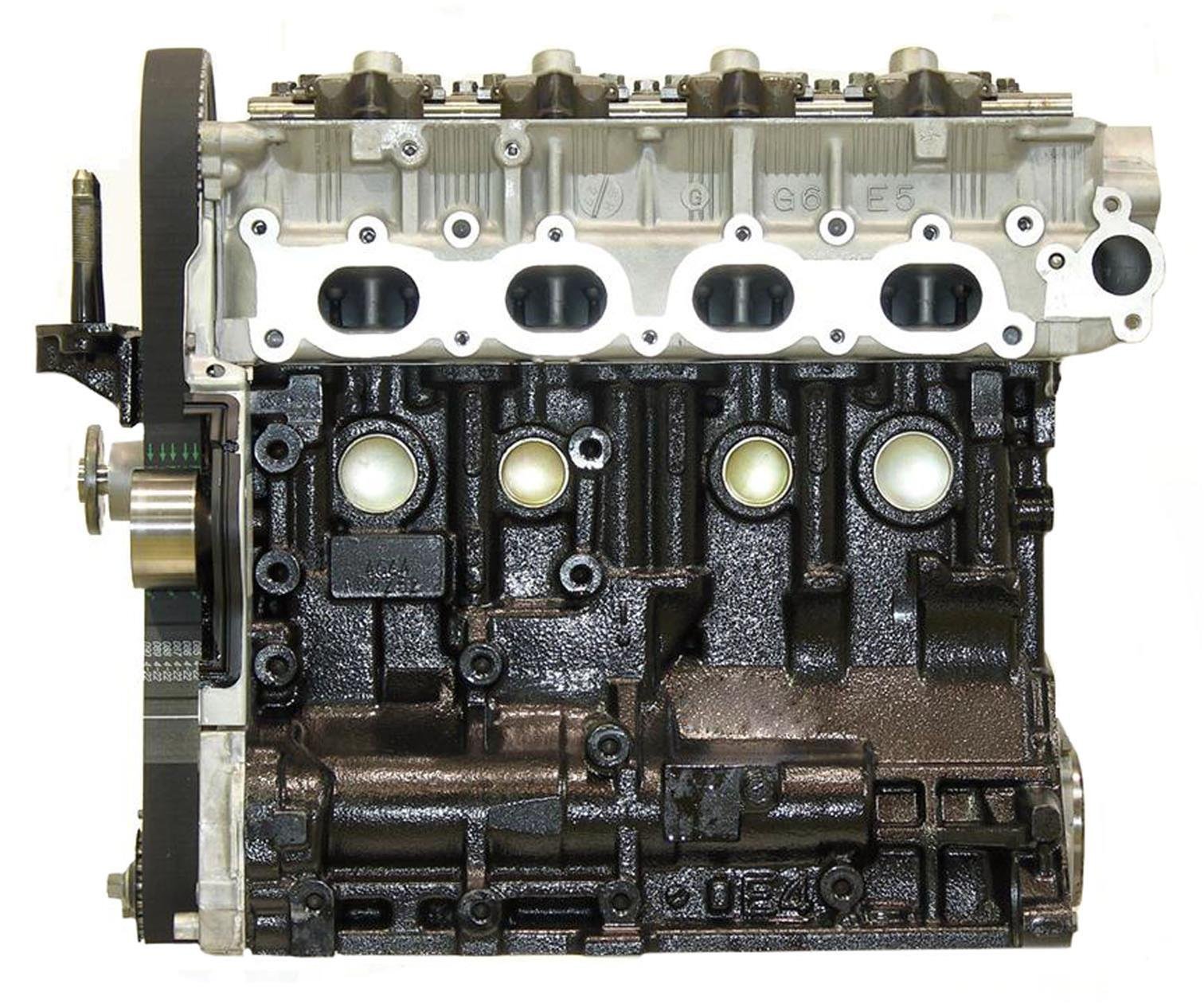

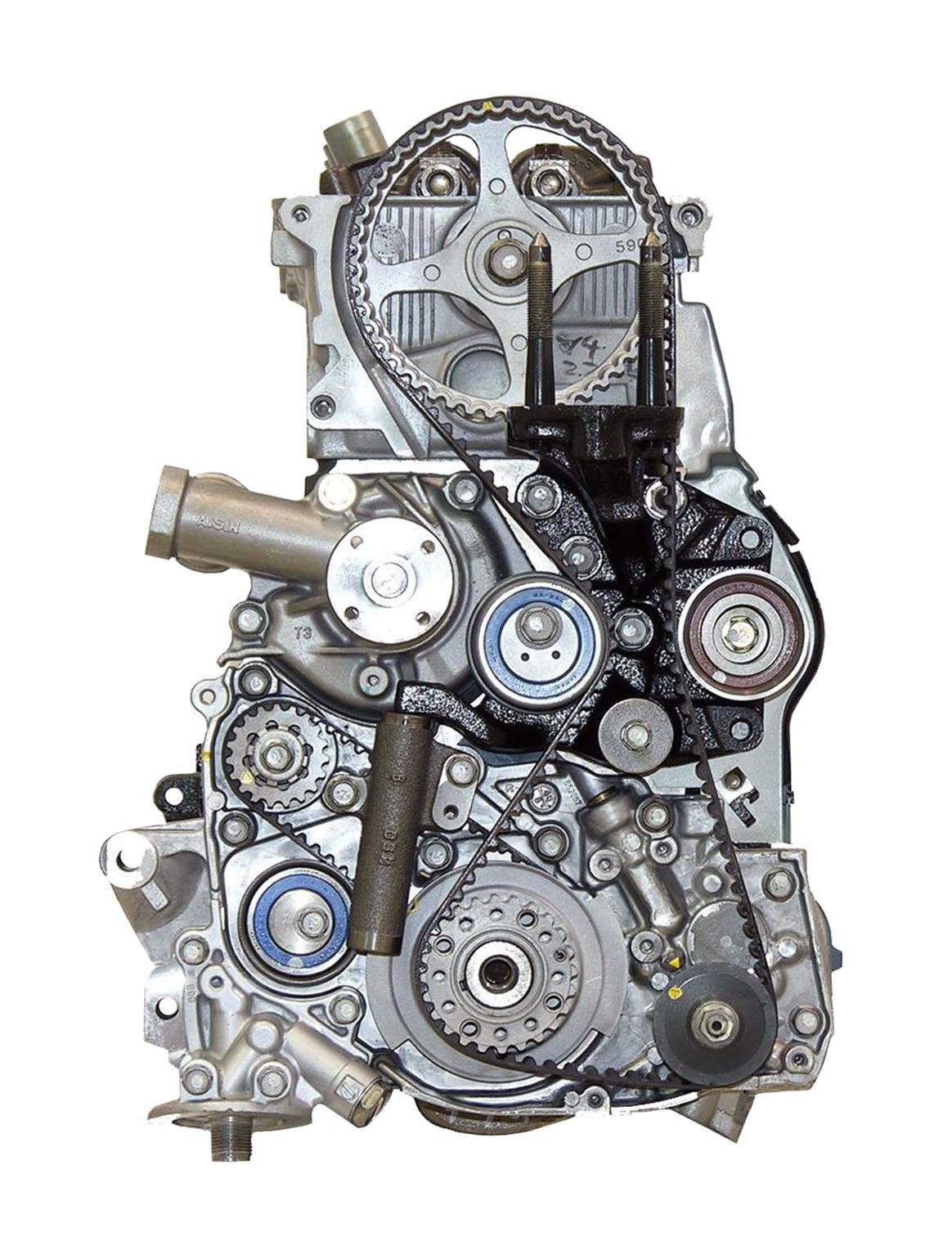

VEGE Remanufactured 226K 2.4L 146ci Car Truck Long Block Engine

Description

Timing chain guide breakage and oil gallery plug leakage produce catastrophic valvetrain failure in hard-working utility pickups. The VEGE Remanufactured 226K 2.4L 146ci Car Truck Long Block Engine eliminates chronic timing slap through an industrial engine rebuild. This 2.4L 4-Cylinder build makes 150HP, but mechanics must verify oil pump drive spindle engagement inside the front timing cover.

Cast from ASTM A48 Class 30 gray iron, this VEGE engine core incorporates an aluminum cylinder head and an induction-hardened forged steel crankshaft. Starter draw measures 150A on 12V circuits. Total dry weight measures 290 lbs within 24in length, 22in width, 25in height dimensions requiring 4.5 quarts oil.

Key Features of VEGE 226K

Fleet operators buy VEGE Remanufactured 226K 2.4L 146ci Car Truck Long Block Engine assemblies to restore pulling power to fleet work trucks without expensive modern electronic conversions. Heavy-duty timing chain components withstand brutal start-stop route duty without plastic guide shearing or timing chain stretch.

• Sturdy 146ci displacement utilizes an 3.504in bore and 3.780in stroke for solid low-end hauling torque.
• Heavy-duty steel-backed timing chain guides eliminate plastic guide breakage and chain slap.
• Aluminum multi-valve cylinder head optimizes chamber breathing while resisting warping under load.
• Hydraulic timing chain tensioners maintain constant chain tension across fluctuating oil temperatures.
• 226K commercial core line-boring guarantees true crankshaft journal rotation under heavy loads.
• Tri-metal rod bearings provide superior embeddability for micro-debris particle isolation.
• High-strength cast pistons maintain tight crown clearances to prevent oil consumption blowby.

Test Stand Dynamometer Boundaries

Test cell verification guarantees the output of every 226K long block engine. Peak horsepower hits 150HP at 5600 RPM while maximum torque records 160 ft-lbs at 4400 RPM. Hot oil gallery pressure measures 52 PSI at 190°F operating sump temperature. Dynamic cylinder compression registers 175 PSI across all cylinders with 3% variance. Crankshaft total indicated runout stays below 0.0003in TIR. Steady dyno exhaust gas temp checks verify 1260°F at full load.

Bay Envelope Maintenance Schedules

Throttle linkage pull requires 5 lbs force. This single-row timing chain replacement unit is NOT engineered for high-boost turbo applications, transverse front-wheel-drive minivans, or vehicles without operational oil pressure monitoring systems.

• Drain break-in engine oil and replace the filter element after 500 highway transit miles.
• Inspect front oil pump seal and timing cover perimeter fasteners after 100 operating hours.
• Check cam cover perimeter fastener torque to 8 ft-lbs following initial thermal normalization runs.

Warranty Statement Shipping Hardware

Built under strict VEGE assembly standard protocols, this remanufactured powertrain includes a 3-Year 100,000-mile commercial warranty. Uncrating reveals the remanufactured long block core, oil pan, timing cover, valve cover, oil pump pickup screen, and certified test sheet.
