Miller Dynasty 210 TIG Welder – 1-210A Amp Range, P/N 951936

Description

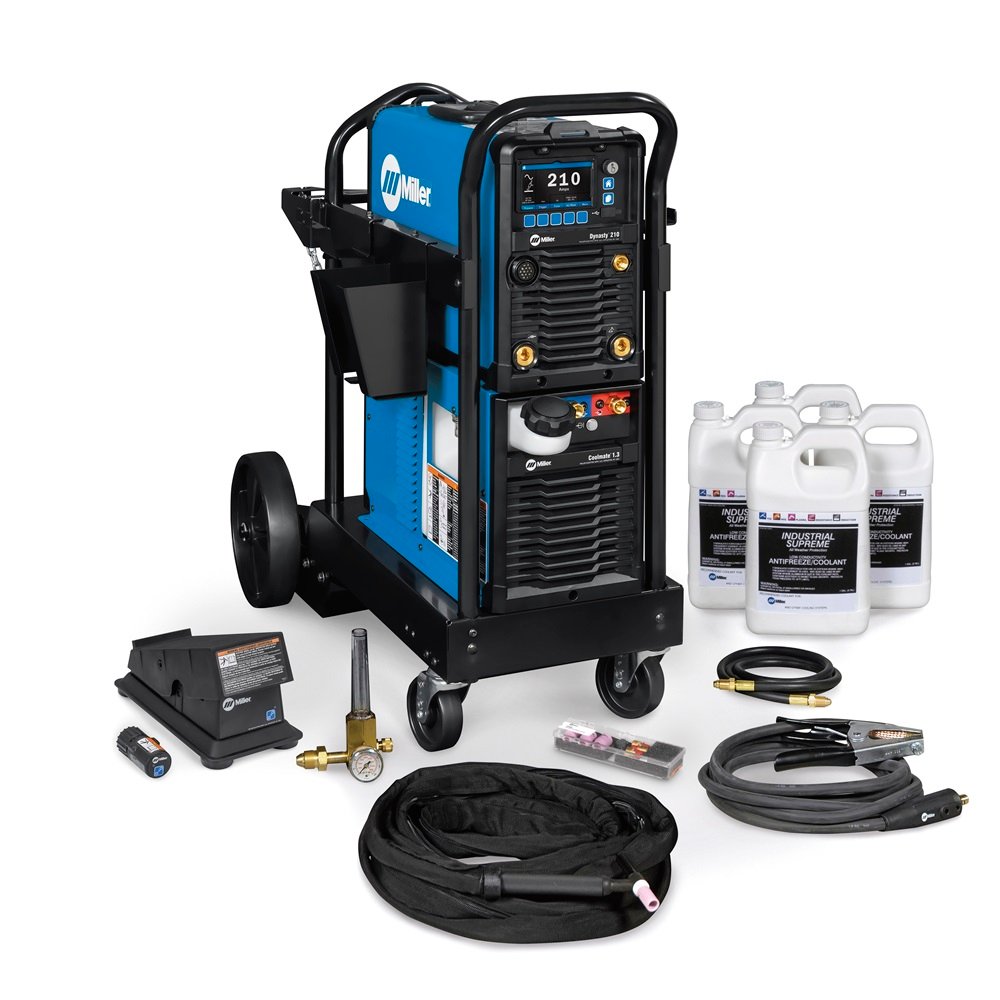

Depositing precision AC TIG welds on thin aluminum components, the Miller Dynasty 210 TIG welder (P/N 951936) eliminates torch handle heat rise with an integrated Coolmate 1.3 water cooler system. Aerospace fabricators and motorsport shops battle hand fatigue and warped torch heads when running air-cooled torches on continuous alternating current passes. This complete water-cooled Runner package combines the 210-amp Auto-Line inverter powerhead with a closed-loop Coolmate water circulator, a 2-wheel cart, a water-cooled torch, and a foot control remote.

Auto-Line technology senses primary electrical voltage from 120V to 480V across single-phase or three-phase power lines, maintaining arc stability during factory voltage drops. Four specialized AC waveforms allow operators to shape the molten puddle, while pulse TIG frequency up to 500 Hz narrows the arc cone to penetrate narrow joint bevels on thin-wall tubing. The heavy-duty 2-wheel cart holds the entire water-cooled workstation and a full-size argon cylinder, rolling across shop floors on large industrial rubber tires.

Key Engineering Features of Miller Dynasty 210 (P/N 951936)

• Complete Water-Cooled Runner Package: Bundles Dynasty 210, Coolmate 1.3 cooler, running cart, water-cooled torch, and foot control.
• Coolmate 1.3 Closed-Loop Water Cooler: Pumps liquid coolant to maintain low torch handle temperatures during full-shift AC welding.
• 1-210A Precision Output Range: Starts stable arcs down to 1 amp for foil-thin metal and peaks at 210 amps for thick plate.
• Auto-Line 120V to 480V Power Sensing: Runs on any jobsite power source without changing internal mechanical jumpers.
• Four AC Waveform Profiles: Selects Advanced Square, Soft Square, Sine, or Triangular wave shapes to match weld bead aesthetics.
• High-Speed Pulse TIG up to 500 Hz: Controls heat input to narrow the heat-affected zone and prevent burn-through on thin alloy sheets.
• Pro-Set Automatic Parameter Configuration: Activates factory-engineered balance and pulse parameters with a single button press.

Shop Floor Durability & Deposition Rates

Built for aerospace cleanrooms and custom motorsport shops, this complete water-cooled TIG station delivers continuous arc stability.

• Continuous liquid cooling prevents torch head warping, preserving gas lens sealing and stopping atmospheric weld contamination.
• Auto-Line universal voltage sensing eliminates factory rewiring costs, allowing immediate plug-in on any electrical service.
• Pulse TIG frequency up to 500 Hz stabilizes the molten pool on vertical joints, eliminating weld metal sagging and burn-through.

Plate Thickness Clearance & Field Portability

Weighing 114 pounds complete with cooler and cart, this mobile system welds 1/4-inch aluminum plate on 240V power and rolls between workbenches on industrial rubber wheels.

Warranty Coverage & Field Maintenance

• Miller Electric backs the Dynasty 210 powerhead and Coolmate 1.3 water cooler with a 3-Year True Blue warranty.
• The water-cooled TIG torch and foot remote assembly receive 1-Year manufacturer warranty protection.

Check water cooler reservoir levels weekly with approved low-conductivity coolant, flush cooling channels annually, and clean wire drive rolls with a nylon brush. Order the Miller Dynasty 210 TIG welder from Mulmotor.com for guaranteed factory-fresh units, complete manufacturer warranty coverage, and dedicated commercial equipment support.
