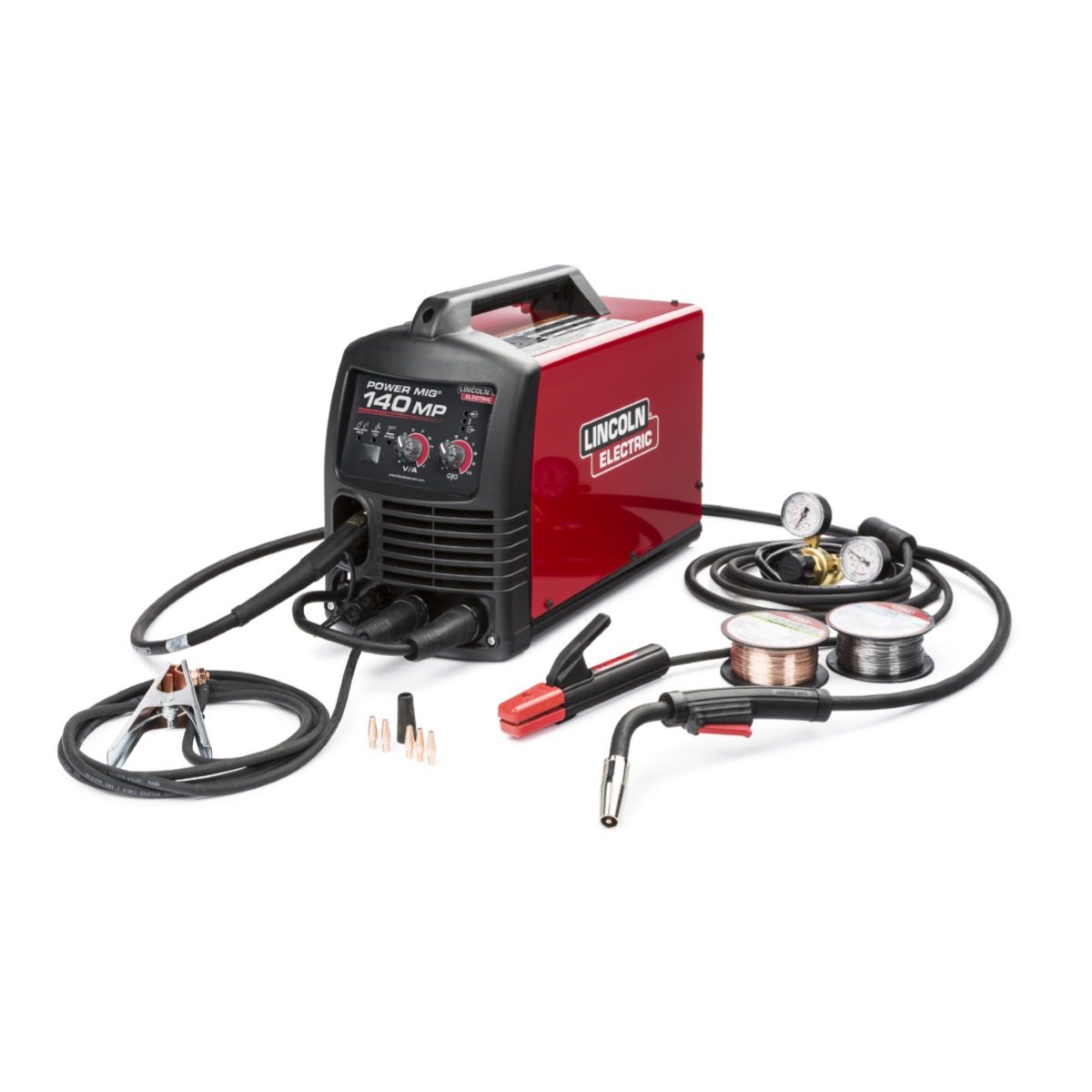

Lincoln Power MIG 140 MP Multi Process Welder – 30-140A Amp Range (ID 15504)

Description

Automotive restoration technicians using the Lincoln Power MIG 140 MP multi process welder (ID 15504) eliminate burn-through on thin sheet metal panels through precise digital voltage control. Restoring vintage car bodies and light fabrication assemblies requires low-amperage arc stability that basic high-voltage welders cannot provide without blowing holes in 22-gauge steel. This 120-volt multi-process machine delivers 30 to 140 amps of MIG, Flux-Cored, DC TIG, and Stick power from standard household wall outlets.

A dual-track all-metal wire drive feeds 0.025-inch to 0.035-inch wire without slip or crushing, while digital meters show preset voltage and wire feed speed before you strike an arc. Reversible polarity terminals let you swap between solid MIG wire with shielding gas and flux-cored wire for outdoor yard projects in seconds. High-frequency inverter switching creates a soft puddle that wets out flat across body seams, slashing metal finishing and grinding hours.

Core Mechanical Specifications of Lincoln Power MIG 140 MP (ID 15504)

• 30-140A Multi-Process Output: Handles MIG, Flux-Cored, DC TIG, and Stick welding on thin sheet metal up to 5/16-inch plate.
• Dedicated 120V Household Input: Plugs into common 15-amp or 20-amp residential circuits without electrical panel upgrades.
• All-Metal Dual-Roll Drive System: Feeds wire from 40 to 500 IPM without birdnesting at the brass guide tube.
• Digital Voltage and Wire Speed Displays: Displays exact preset values for repeatable puddle control on thin gauge sheet steel.
• Spool Gun Ready Selector Switch: Connects to optional aluminum spool guns for feeding soft 4043 wire without feed kinks.
• Rated 90A Output at 30% Duty Cycle: Maintains steady arc deposition on sheet metal seams without thermal trip shutdowns.
• Compact 34-Pound Inverter Cabinet: Rigid steel housing features an ergonomic carry handle for quick garage transport.

Production Efficiency & Reduced Post-Weld Cleanup

This compact 120V multi-process machine deposits smooth weld beads that cut post-weld body filler and grinding labor on restoration projects.

• Soft short-circuit arc dynamics limit weld spatter, keeping painted surfaces clean and reducing wire wheel cleanup.
• Four-in-one process flexibility lets you MIG weld body panels, stick weld lawn mowers, or DC TIG weld stainless exhaust headers.

Material Capacities & Workshop Integration

Weighing 34.5 pounds dry with a bench envelope length of 18 inches, this compact welder sits on small shop workbenches and welds up to 5/16-inch steel using 0.035-inch flux-cored wire.

Factory Warranty Terms & Consumable Care

• Lincoln Electric backs the Power MIG 140 MP power source with a 3-Year factory warranty covering internal electronics and drive motors.

Inspect drive roll grooves weekly for wire shaving buildup, blow clean air through the gun liner during wire spool swaps, and replace copper contact tips before bore holes elongate. Order the Lincoln Power MIG 140 MP multi process welder (ID 15504) from Mulmotor.com for guaranteed factory-fresh units, complete manufacturer warranty coverage, and dedicated commercial equipment support.
