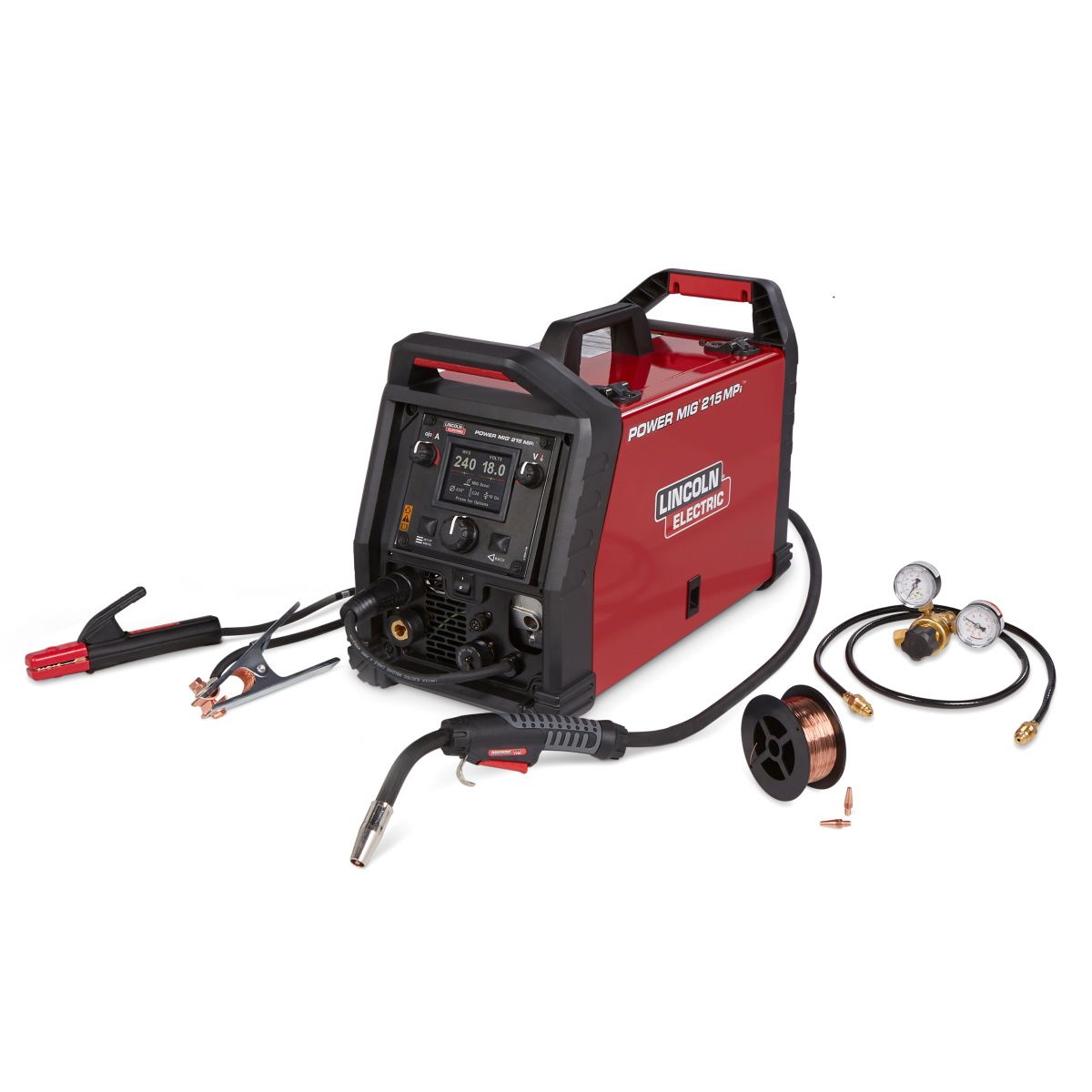

Lincoln Power MIG 215 Multi Process Welder – 20-215A Amp Range, P/N K4876-1

Description

The Lincoln Power MIG 215 multi process welder (P/N K4876-1) solves multi-metal fabrication challenges through updated inverter electronics and an expanded 20 to 215-amp operating window. Mobile mechanical contractors and maintenance crews face changing metal repair jobs that require switching between MIG, Stick, and DC TIG without dragging separate power sources. This modern multi-process inverter incorporates dual-voltage input circuitry, an upgraded digital display, and heavy-duty wire feeding to handle structural repair work.

An all-metal dual-roll wire drive pushes 0.025-inch to 0.035-inch solid and flux-cored wire up to 500 IPM without slip or wire deformation. When switched to Stick mode, adjustable hot start delivers smooth arc ignition with low-hydrogen 7018 electrodes, while arc force control prevents sticking in tight root joints. The dual-voltage power cord swaps between 120V utility plugs and 230V industrial outlets, outputting full 215-amp current on heavy structural weldments.

Engine Architecture of Lincoln Power MIG 215 MP

• 20-215A Multi-Process Operating Window: Powers MIG, Flux-Cored, DC Lift TIG, and Stick welding processes from one compact cabinet.
• Dual-Voltage 120V/230V Input Sensing: Operates at 140 amps on 120V utility power and ramps to 215 amps on 230V shop drops.
• Upgraded High-Visibility Digital Display: Shows exact real-time voltage and wire speed settings for procedure compliance.
• All-Metal Heavy-Duty Wire Drive: Houses reversible drive rolls to feed hard, soft, and tubular wire up to 500 IPM.
• Adjustable Arc Force for Stick Welding: Prevents electrode sticking when pushing 6010 and 7018 rods into tight joint roots.
• Spool Gun Capable Control Circuit: Connects to optional aluminum spool guns with an onboard selector switch.

Commercial Utility Stamina & Lifespan

Engineered for high-volume maintenance shops and mobile repair rigs, this multi-process inverter provides broad process versatility.

• Consolidated 4-in-1 capability eliminates the capital expense and trailer weight of hauling separate welding machines.
• Inverter power conversion extracts maximum arc energy from primary lines, reducing electrical draw in commercial shops.
• Thermal overload protection with automatic shutdown sensors prevents transformer burnout under heavy continuous duty cycles.

Chassis Integration & Industrial Fitment

Measuring 19 inches long and weighing 42 pounds dry, this versatile multi-process powerhead fits on standard shop carts and operates on clean generator power.

Commercial Warranty & Field Maintenance

• Lincoln Electric covers the Power MIG 215 power source with a 3-Year factory warranty against manufacturing and component defects.

Clean internal heatsinks every 50 hours with dry shop air, check wire spool brake tension monthly, and inspect gun contact tips for keyhole wear after heavy spray runs. Order the Lincoln Power MIG 215 multi process welder from Mulmotor.com for guaranteed factory-fresh units, complete manufacturer warranty coverage, and dedicated commercial equipment support.
