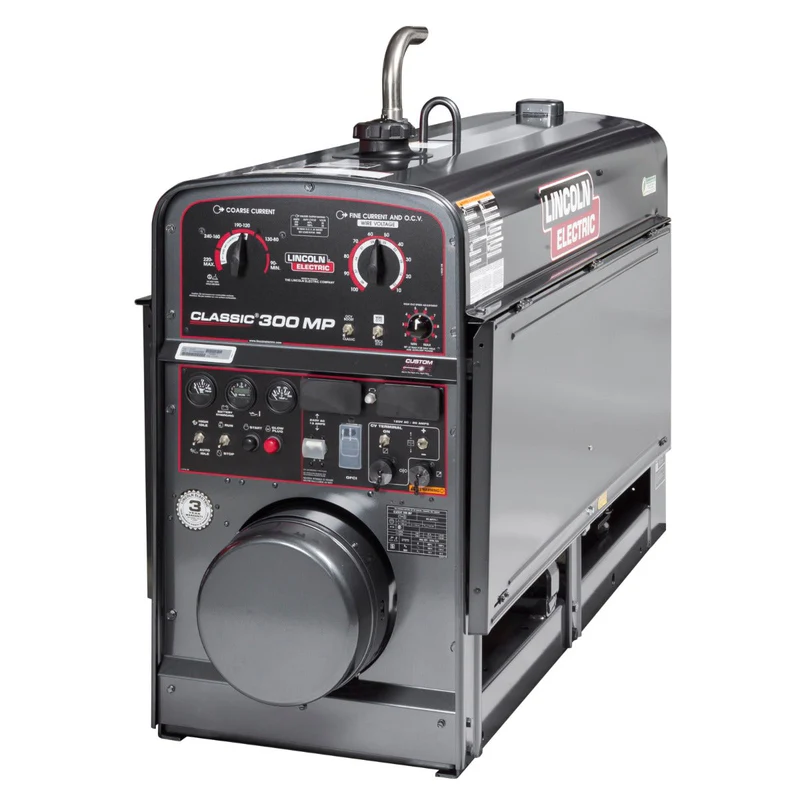

Lincoln Classic 300 MP Kubota Engine Driven Welder Generator – P/N K4264-1

Description

Depositing downhill cellulosic stick root passes, the Lincoln Classic 300 MP Kubota engine driven welder generator (P/N K4264-1) combines traditional pure DC generator arc characteristics with multi-process Chopper Technology. Pipeline welding contractors face severe weld rejection rates when modern inverter arcs wander or fail to freeze properly on high-strength transmission pipe. This heavy-duty pipeline machine pairs a water-cooled Kubota V1505 4-cylinder diesel engine with all-copper generator coils, delivering 300 amps of pure welding current at 60 percent duty cycle.

Chopper Technology expands machine capability beyond standard pipe welding, allowing operators to run flux-cored wire feeders, gouge with 1/4-inch carbon electrodes, and deposit precision DC TIG roots. The low-speed 1,800 RPM Kubota diesel engine cuts fuel consumption significantly while reducing jobsite engine noise along cross-country rights-of-way. Five distinct current ranges with fine-adjustment rheostat dials let you tune puddle freeze precisely for vertical-down travel, while 3,000 watts of auxiliary AC power runs pipe beveling tools and grinders.

Key Engineering Features of Lincoln Classic 300 MP Kubota

• Pure DC Generator Arc with Chopper Control: Delivers the legendary soft arc for downhill pipe welding while adding CV wire and gouging modes.
• 300A DC Output at 60% Duty Cycle: Fuses heavy-wall transmission pipe joints with 6010, 7010, and 8010 cellulosic electrodes.
• Kubota V1505 4-Cylinder Liquid-Cooled Diesel: Operates at low 1,800 RPM for extended engine life and high fuel efficiency.
• Multi-Process Pipe Capability: Handles Stick, TIG, Wire Feeding, and Carbon Arc Gouging with carbon rods up to 1/4-inch diameter.
• All-Copper Windings: Delivers superior electrical conductivity and thermal heat dissipation on cross-country pipeline spreads.
• 3,000-Watt Auxiliary AC Generator: Delivers 120V and 240V power for pipe facing tools, grinders, and preheating torches.

Field Durability & Jobsite Power Delivery

Built for remote pipeline right-of-way construction, this heavy diesel-drive machine withstands mud, snow, and rough terrain transit.

• All-copper generator construction produces a stable DC arc that prevents root pass undercut and porosity on high-yield pipe.
• Low 1,800 RPM operating speed cuts diesel fuel consumption significantly compared to high-speed 3,600 RPM welding rigs.
• Digital engine gauges monitor coolant temperature and oil pressure, shutting the diesel engine down before catastrophic thermal damage occurs.

Plate Thickness Clearance & Field Portability

Weighing 1,440 pounds dry with an exterior length of 63.8 inches, this heavy pipeline machine mounts securely on four-wheel road trailers or custom flatbed welding trucks.

Warranty Coverage & Field Maintenance

• Lincoln Electric backs the Classic 300 MP generator and copper windings with a 3-Year limited commercial warranty.
• Kubota covers the V1505 diesel engine through a 2-Years or 2,000-hour factory warranty through authorized diesel distributors.

Change engine oil and filter every 100 operating hours with 15W-40 diesel oil. Inspect the water separator bowl weekly, and clean carbon dust from the commutator brushes every 500 operating hours. Order the Lincoln Classic 300 MP Kubota engine driven welder generator from Mulmotor.com for guaranteed factory-fresh units, complete manufacturer warranty coverage, and dedicated commercial equipment support.
